Suzuki T350 Mild Special, (NOW SOLD)
December 28 2015. Project T350 special. I am building this bike out of parts I have had for many years.
Everything used will be renewed, repainted, rechromed etc.
It will be for sale when complete. Parts used in the bike will range from 1969 to 1972 and some parts not originally used on T350's. If you have a interest in purchasing this bike please call me on 0422 819 200. Bike is at Mt.Gravatt East Brisbane Australia.
===================

I'll start with the engine, it is from a 71 model, stripped bare, cases blasted, the botton case was painted in epoxy silver to make for easy cleaning. Crank fully rebuilt with new rods, bearings and seals, Newtronic electric ignition fitted. Alloy covers blasted and polished.
The bottom end is complete now, below are the progress pictures, there are many so allow loading time, make a coffee, have a smoke, any colour you like :)

Note finished look pics are at the bottom of page, it went through a bit of a cafe incarnation for a while there.

CLICK HERE FOR SALE PAGE

suzuki T350

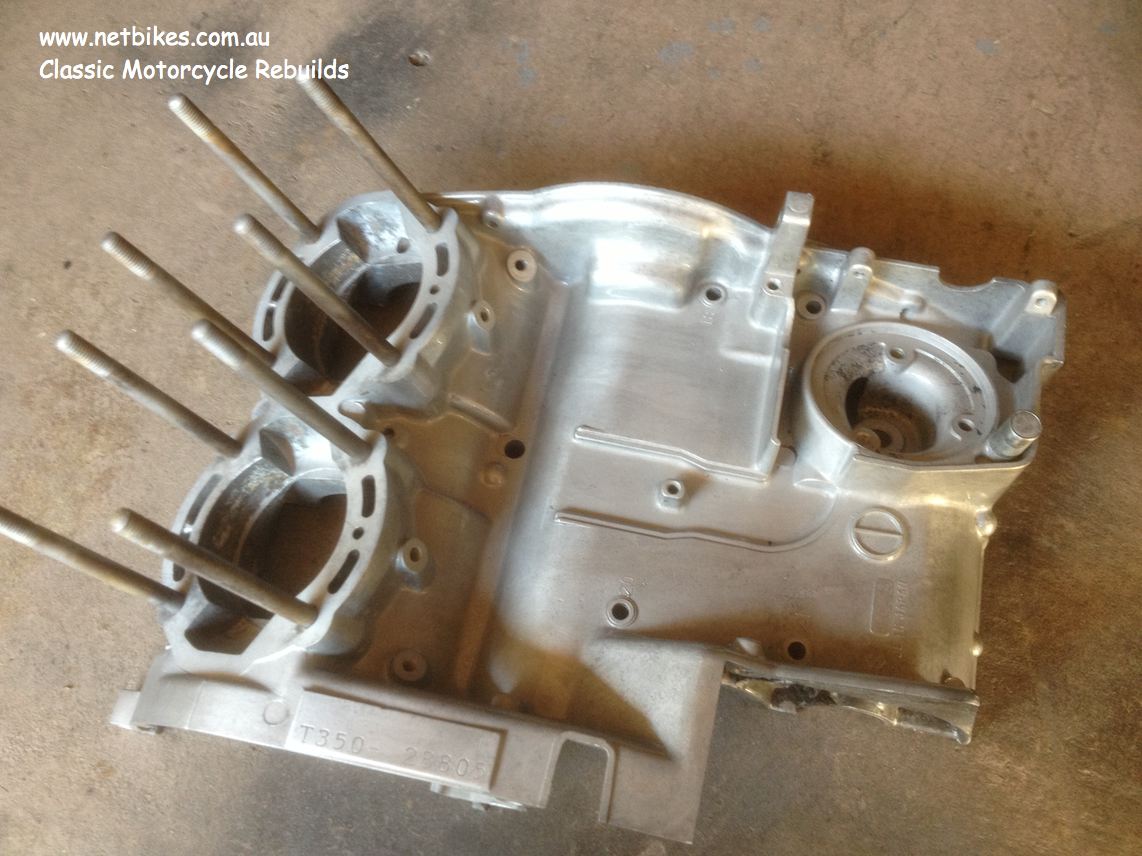

Top case bead blasted and left natural

suzuki T350

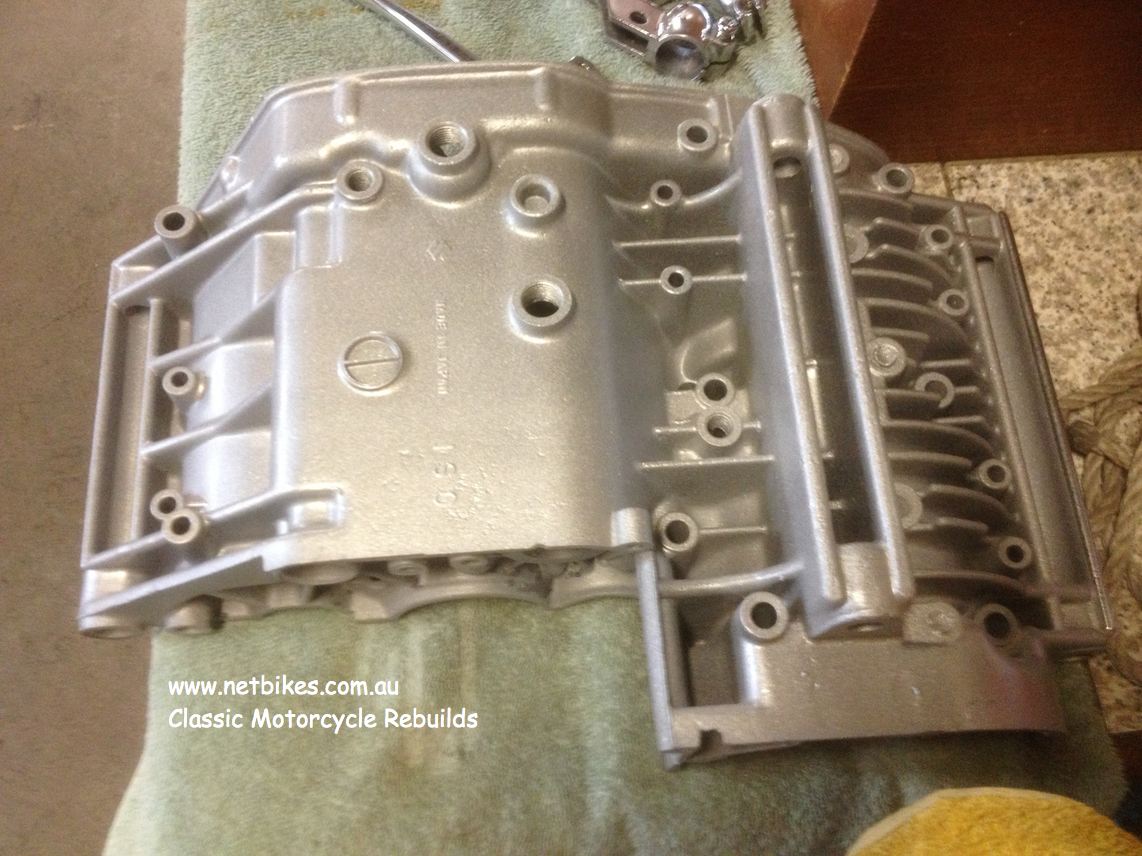

Lower case bead blasted and painted for easy cleaning.

suzuki T350

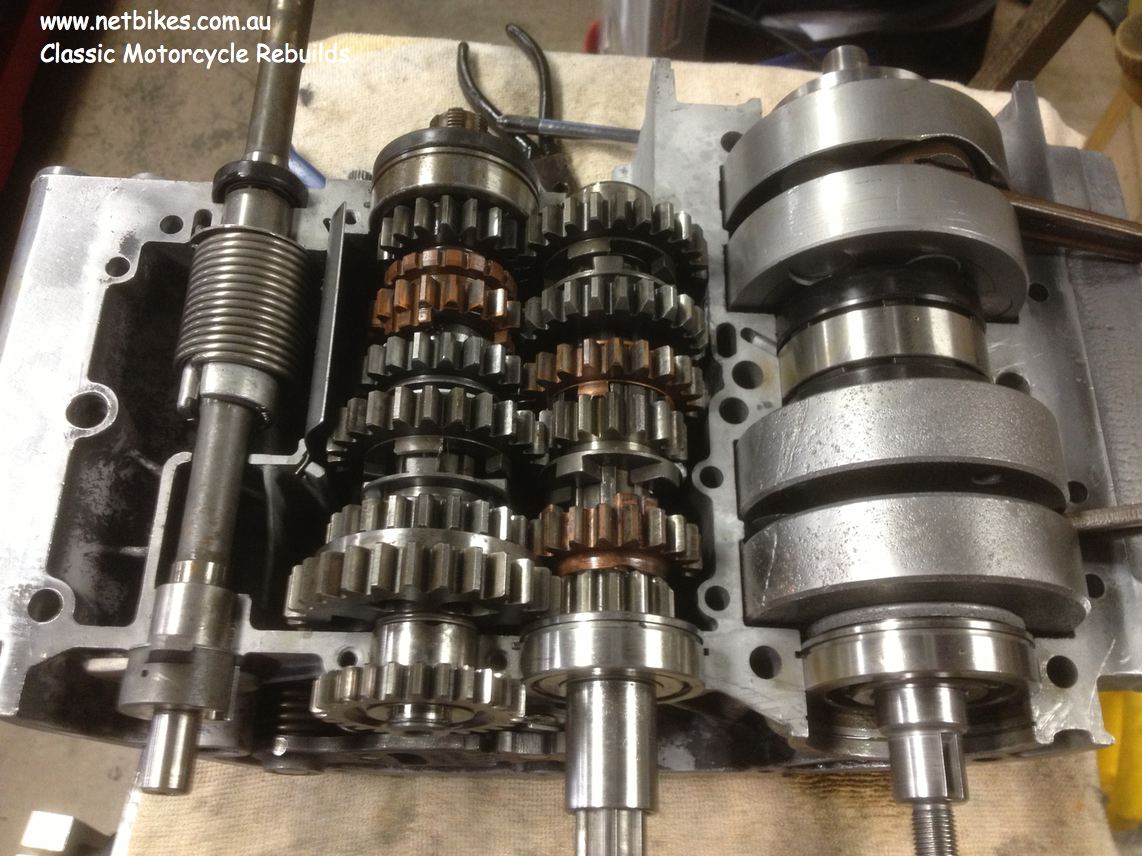

Crank rebuilt with new bearings, seals and rods.

suzuki T350

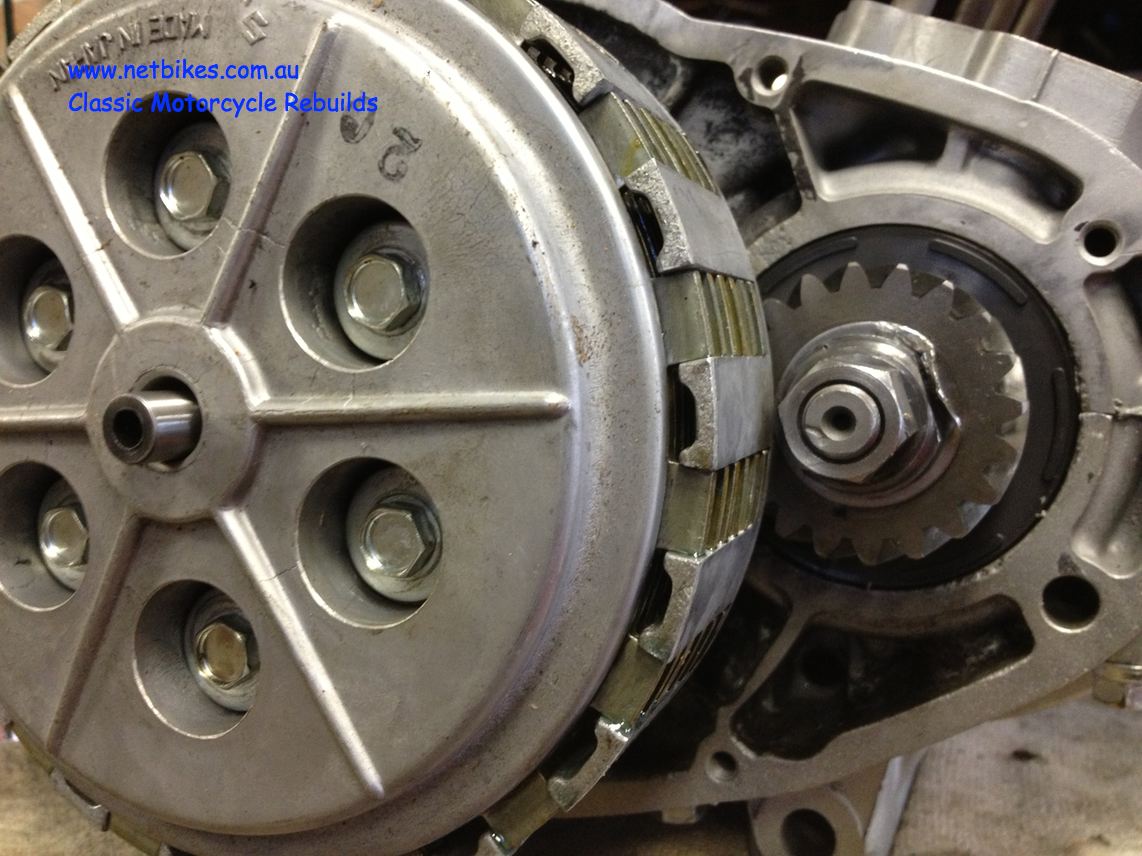

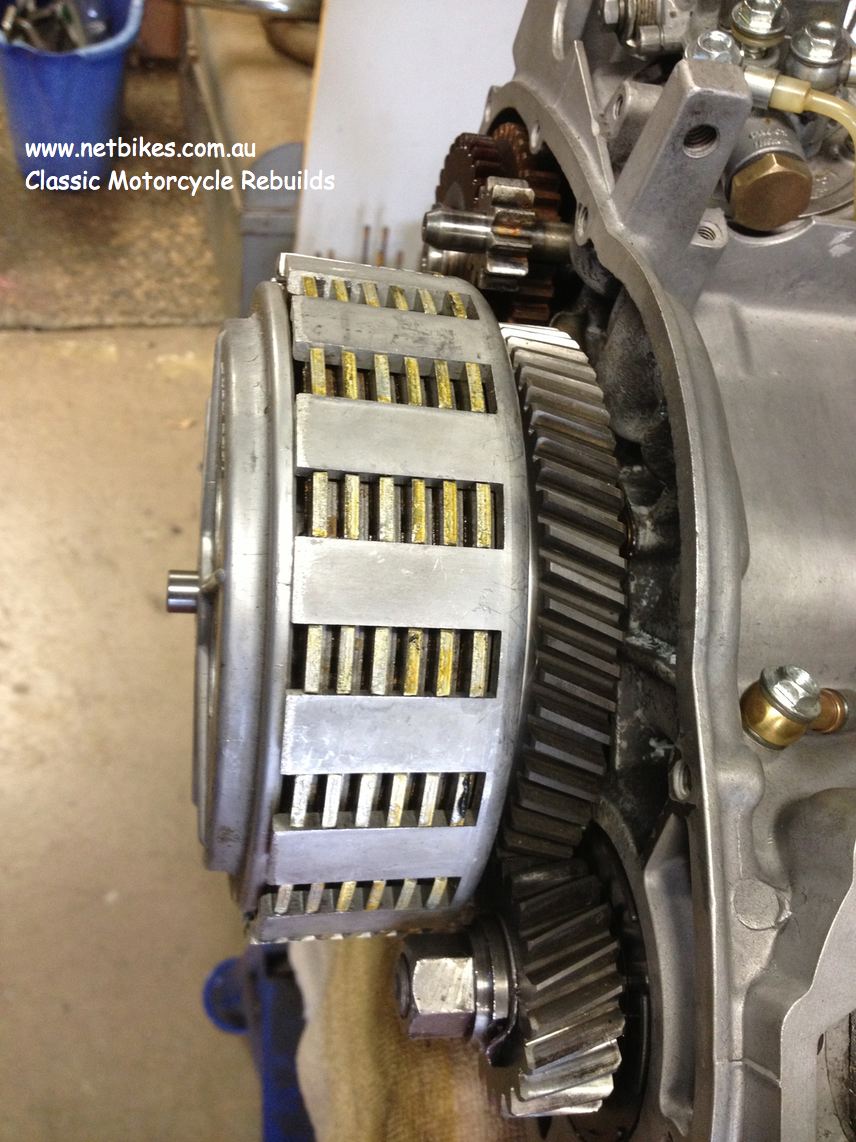

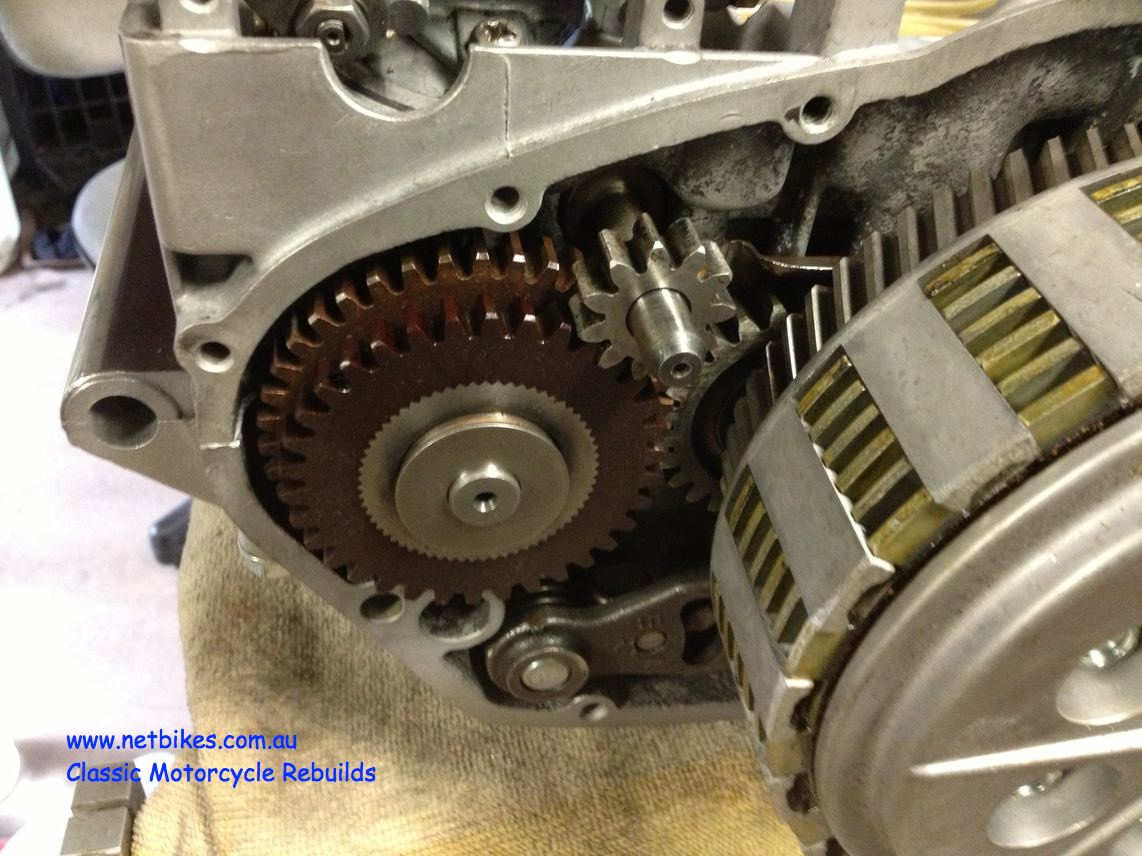

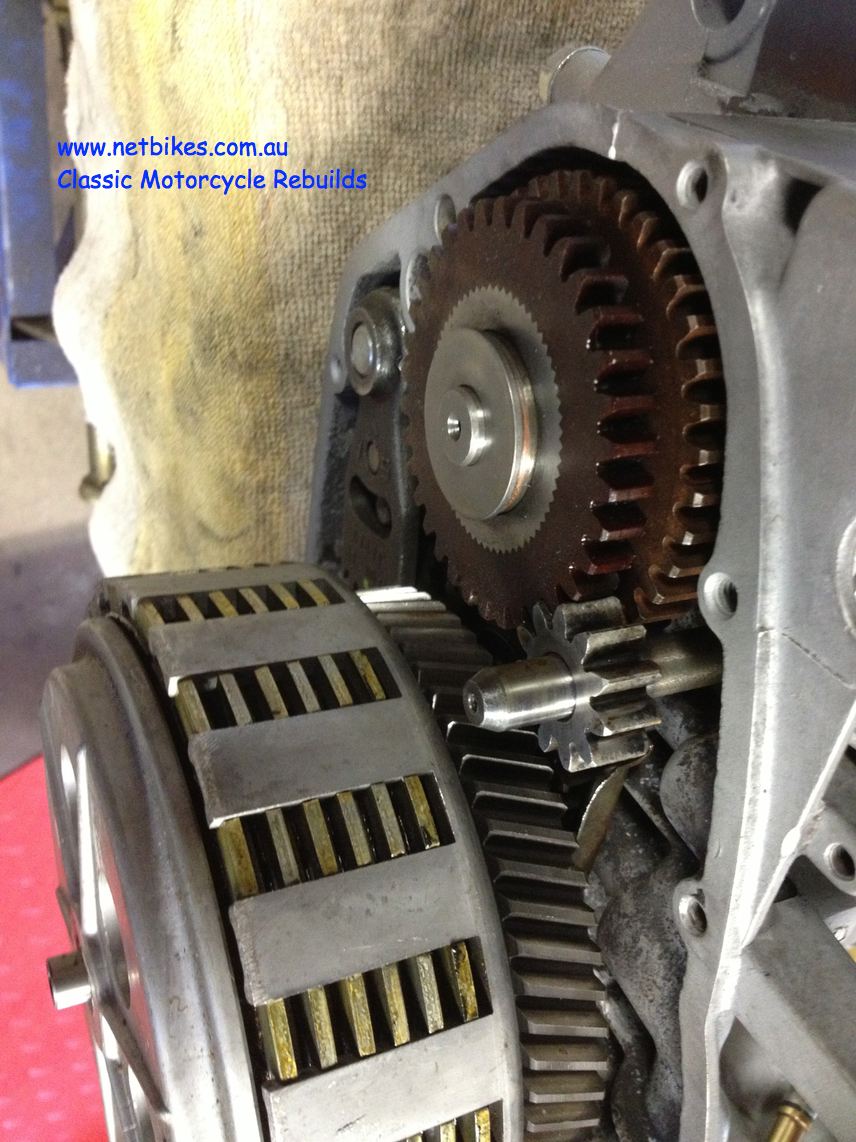

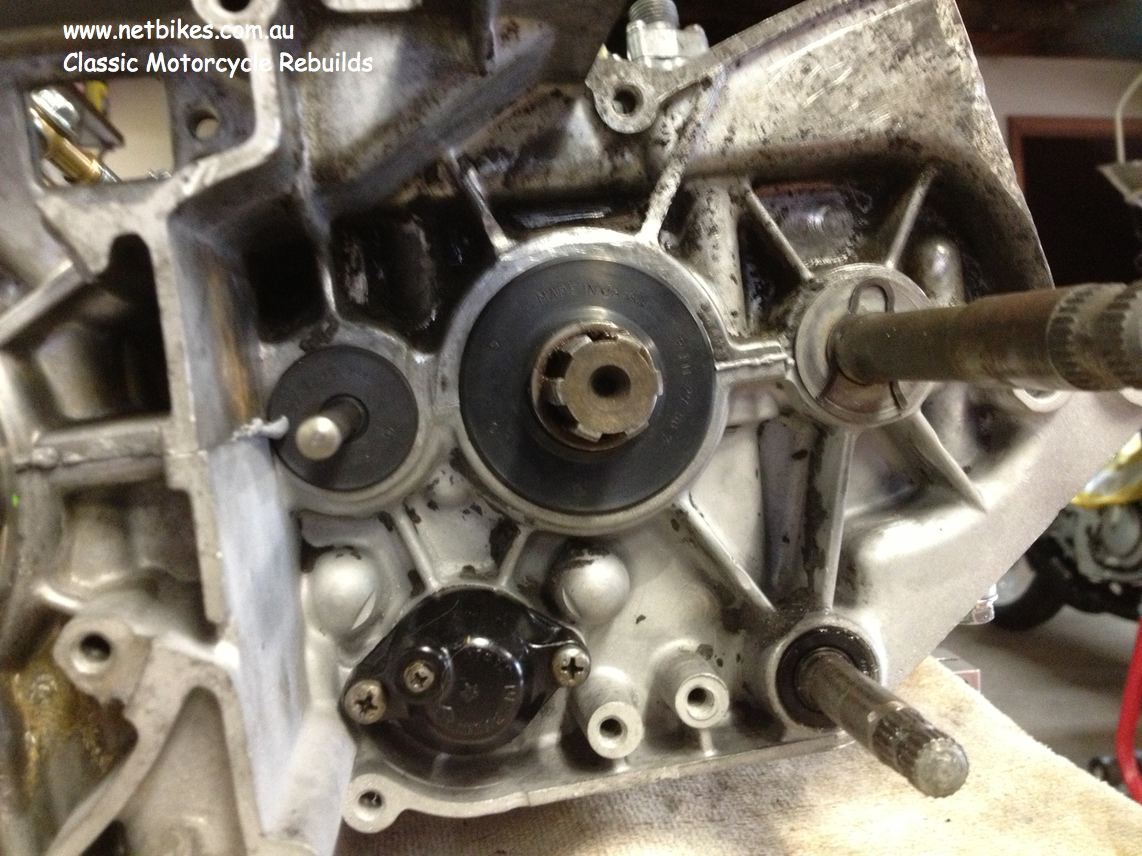

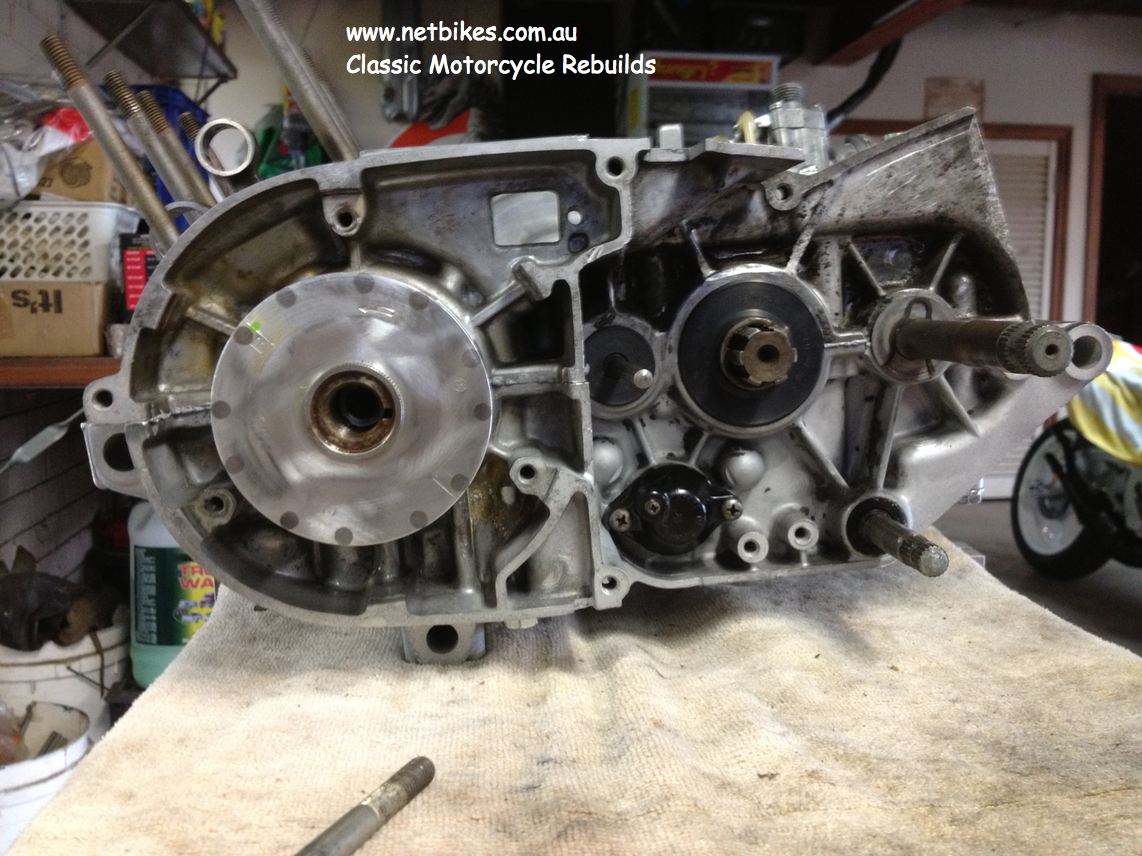

A few close ups below that may help others building T250/350.

suzuki T350

suzuki T350

suzuki T350

suzuki T350

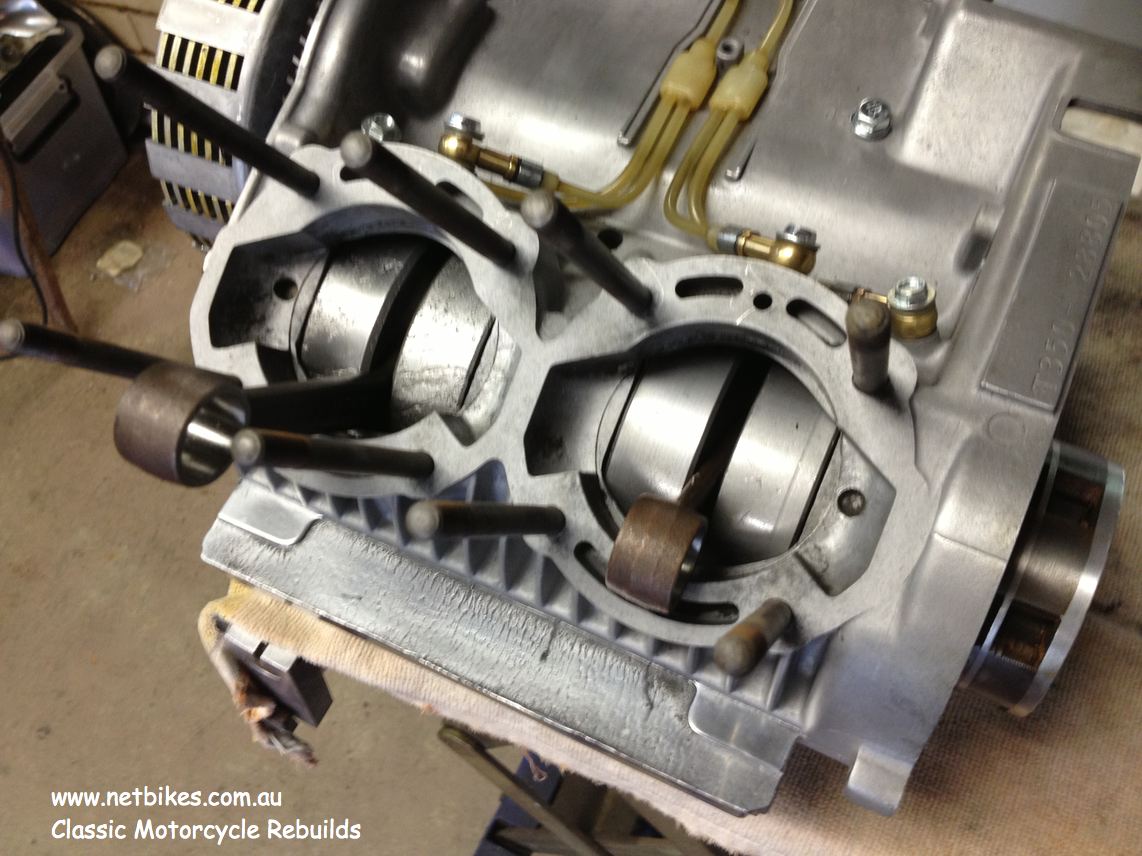

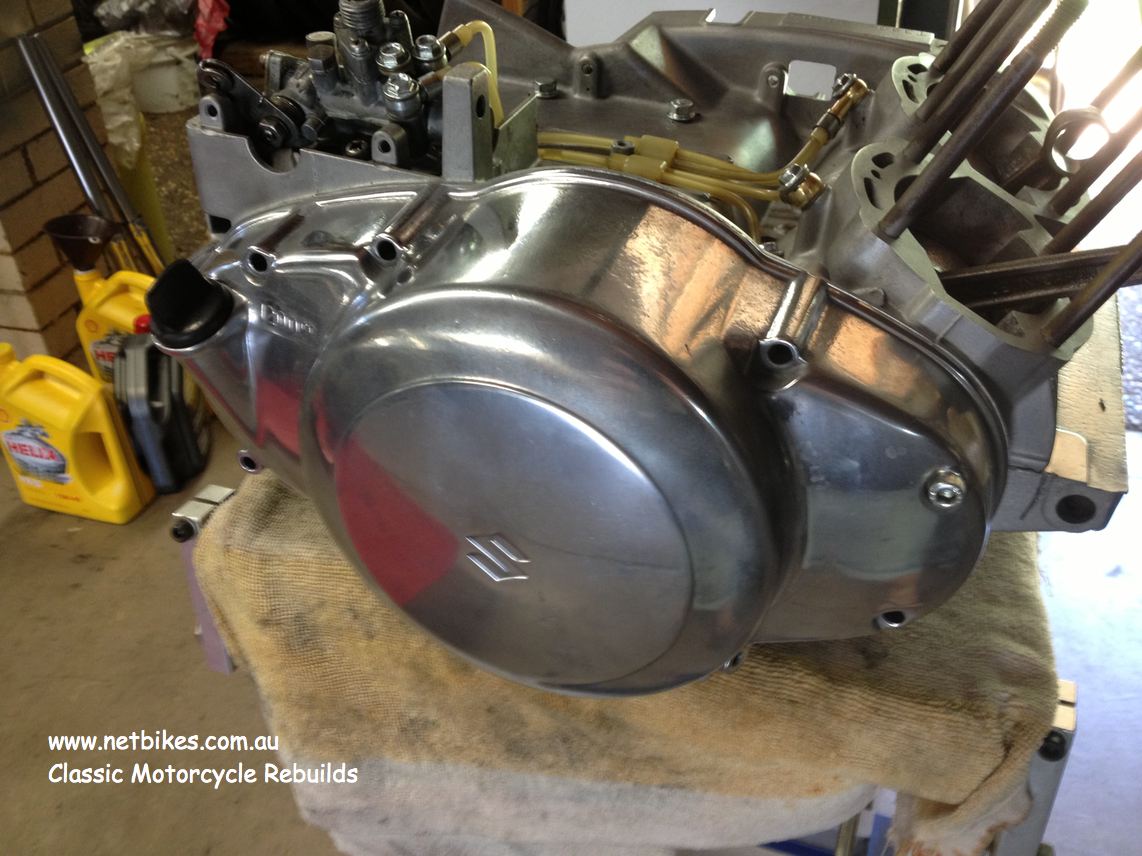

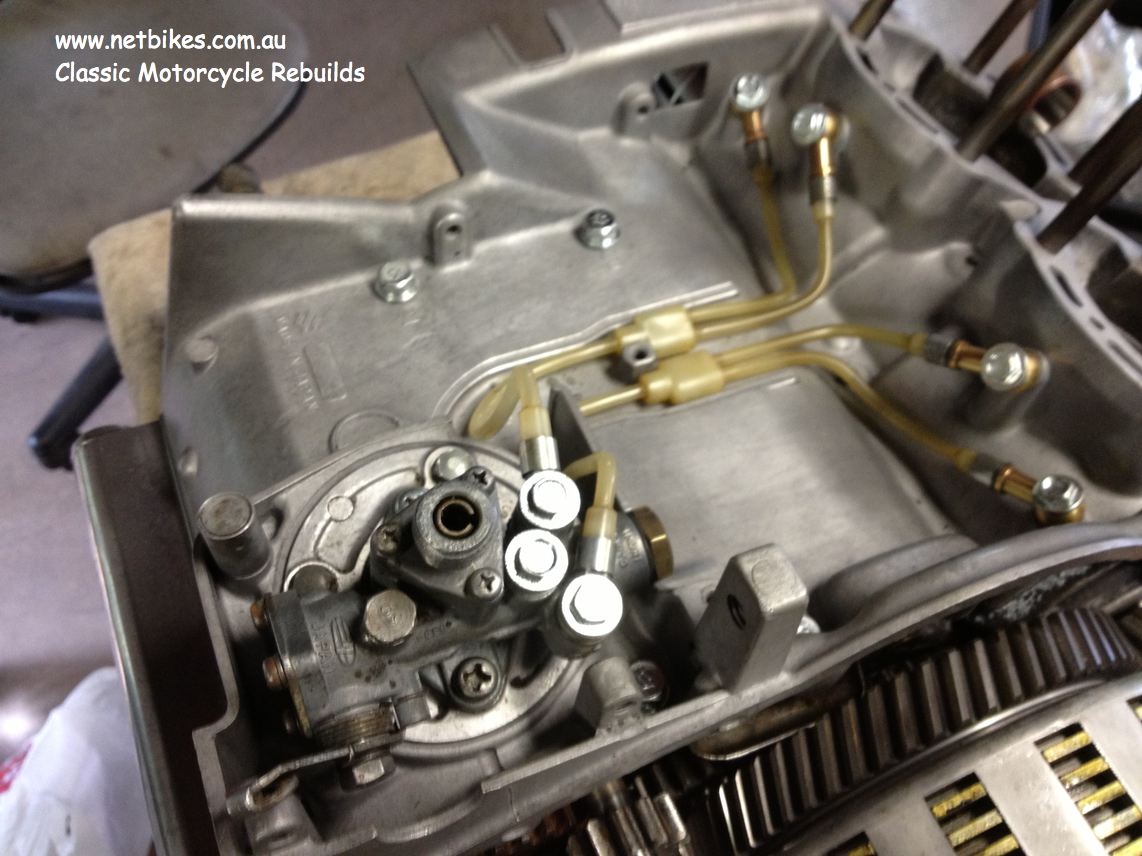

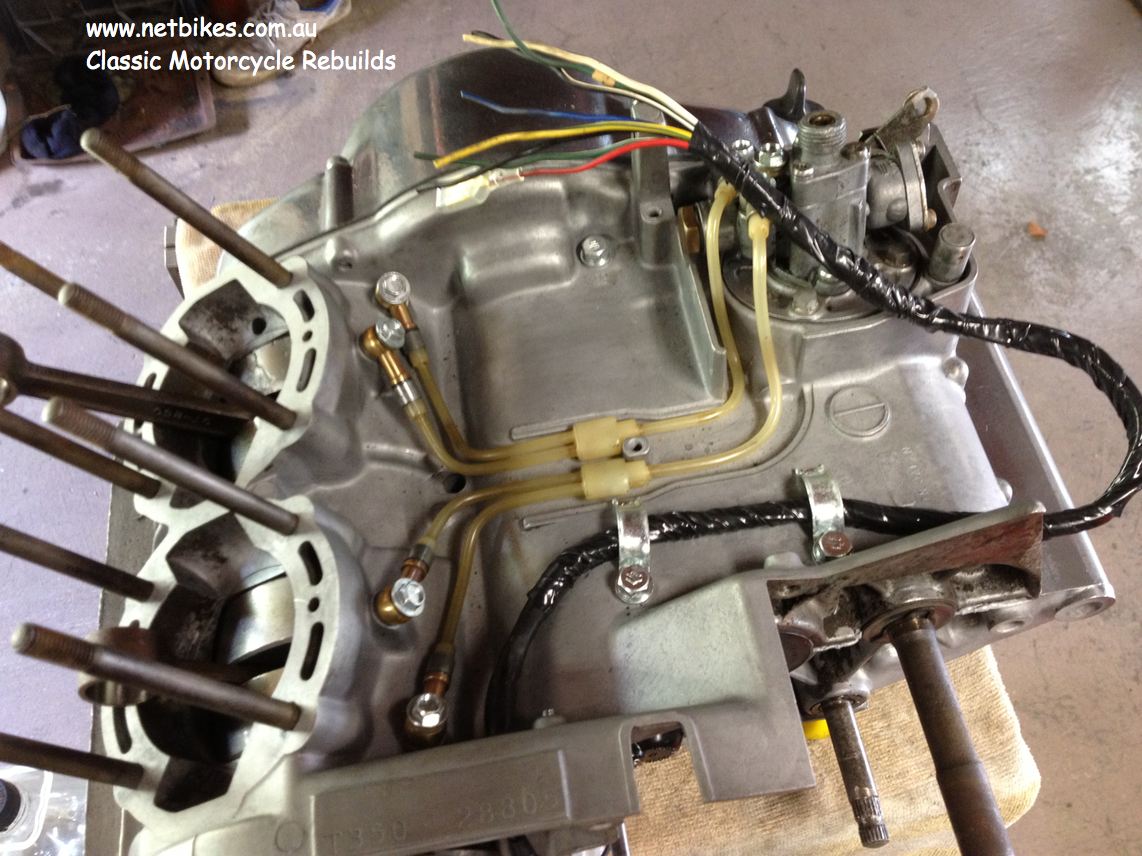

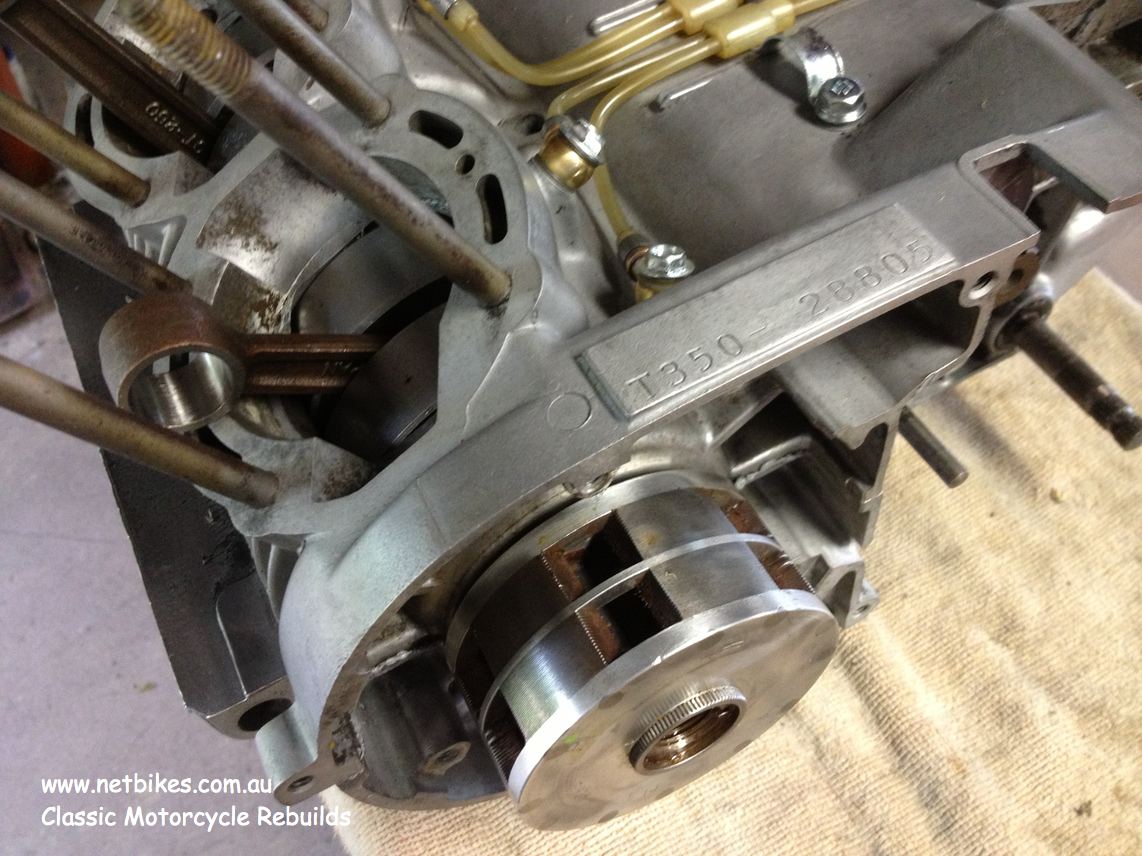

Oil pipes fitted ready for priming before first start up.

suzuki T350

suzuki T350

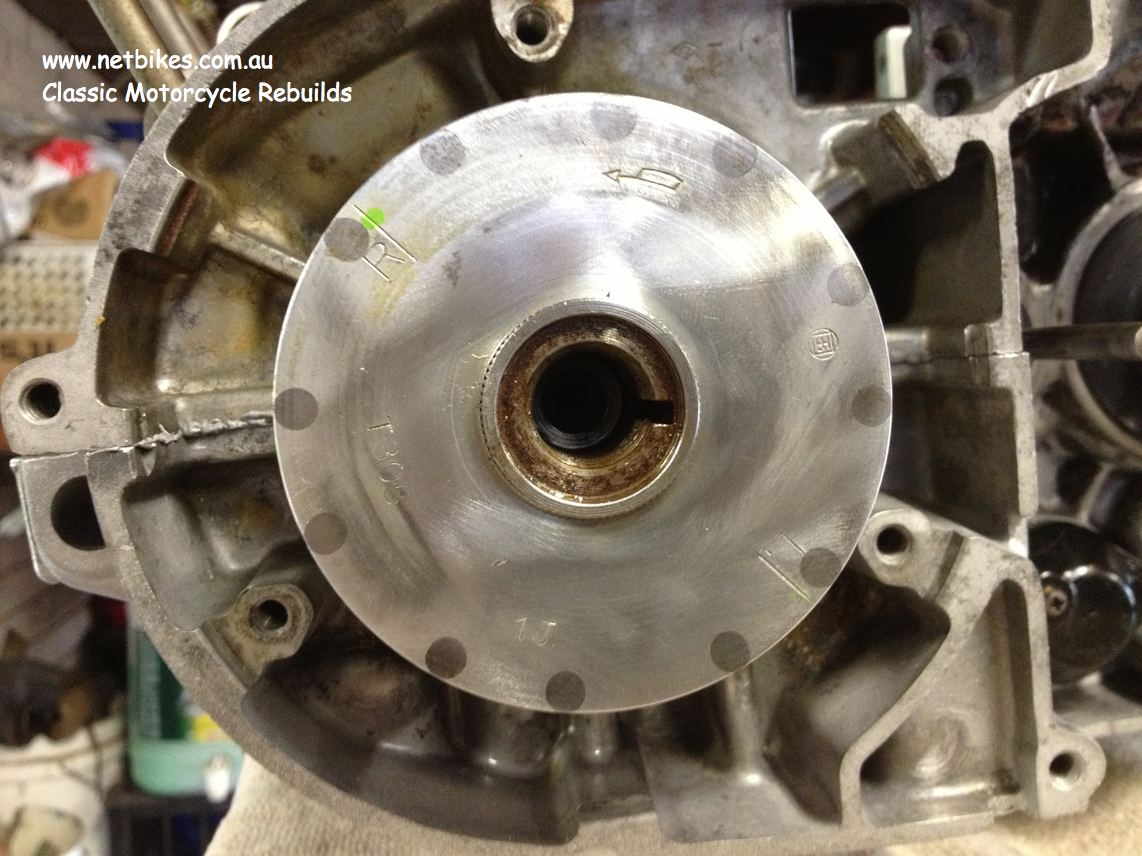

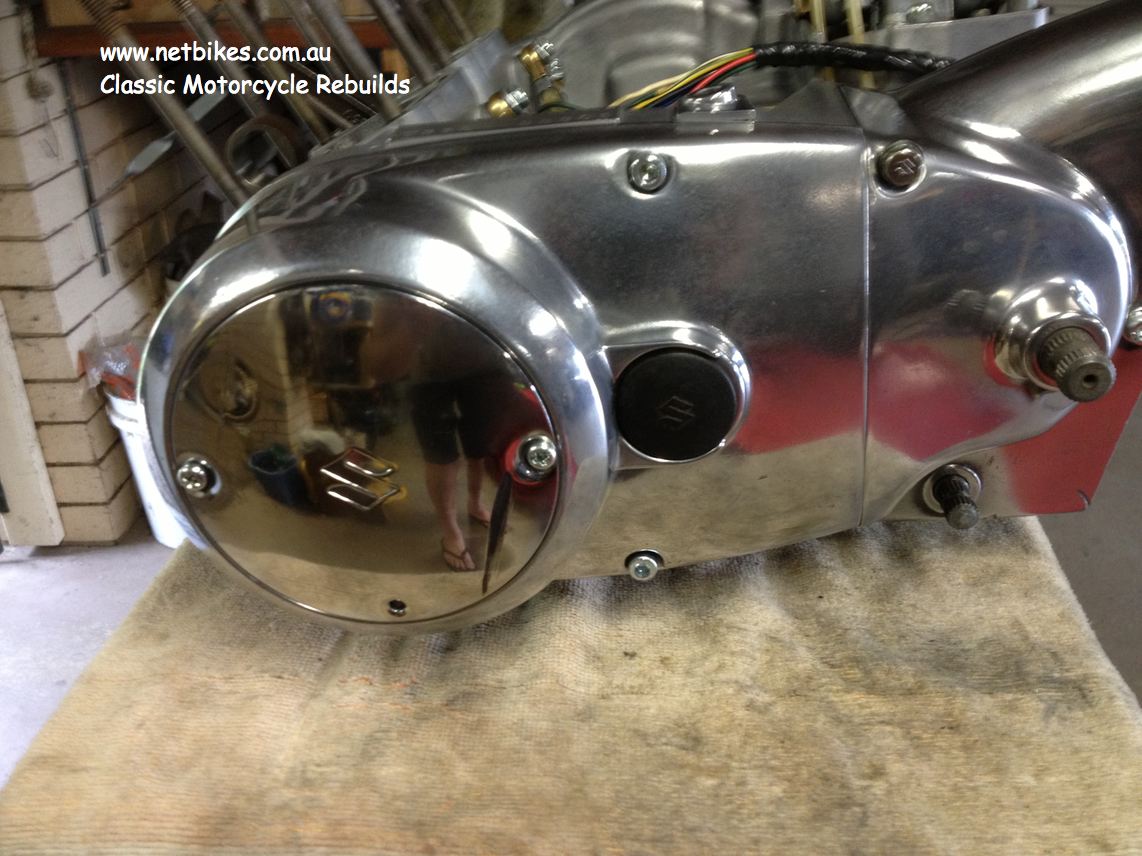

More close ups of the stator side.

suzuki T350

suzuki T350

suzuki T350

suzuki T350

suzuki T350

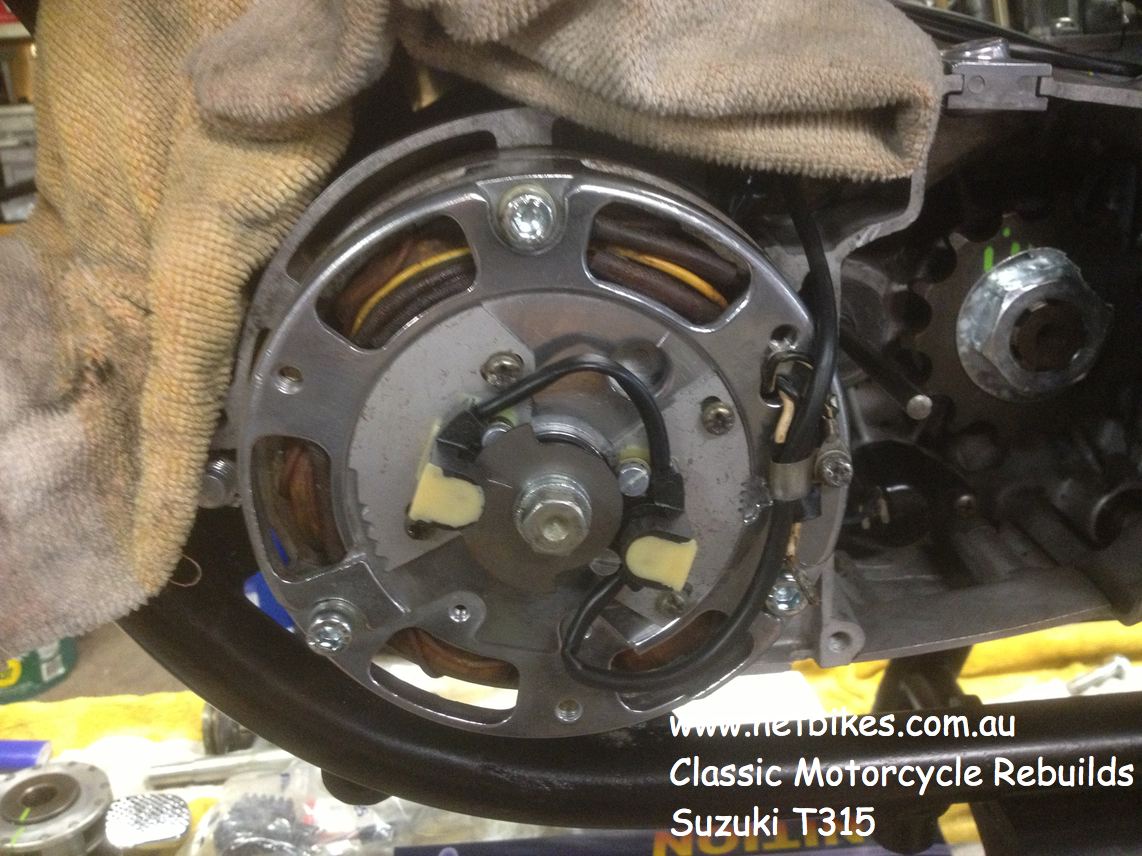

Newtronic ignition fitted, it is NOT plug and play friendly,
some modifying to the back plates were required to get the time set correctly.

suzuki T350

suzuki T350

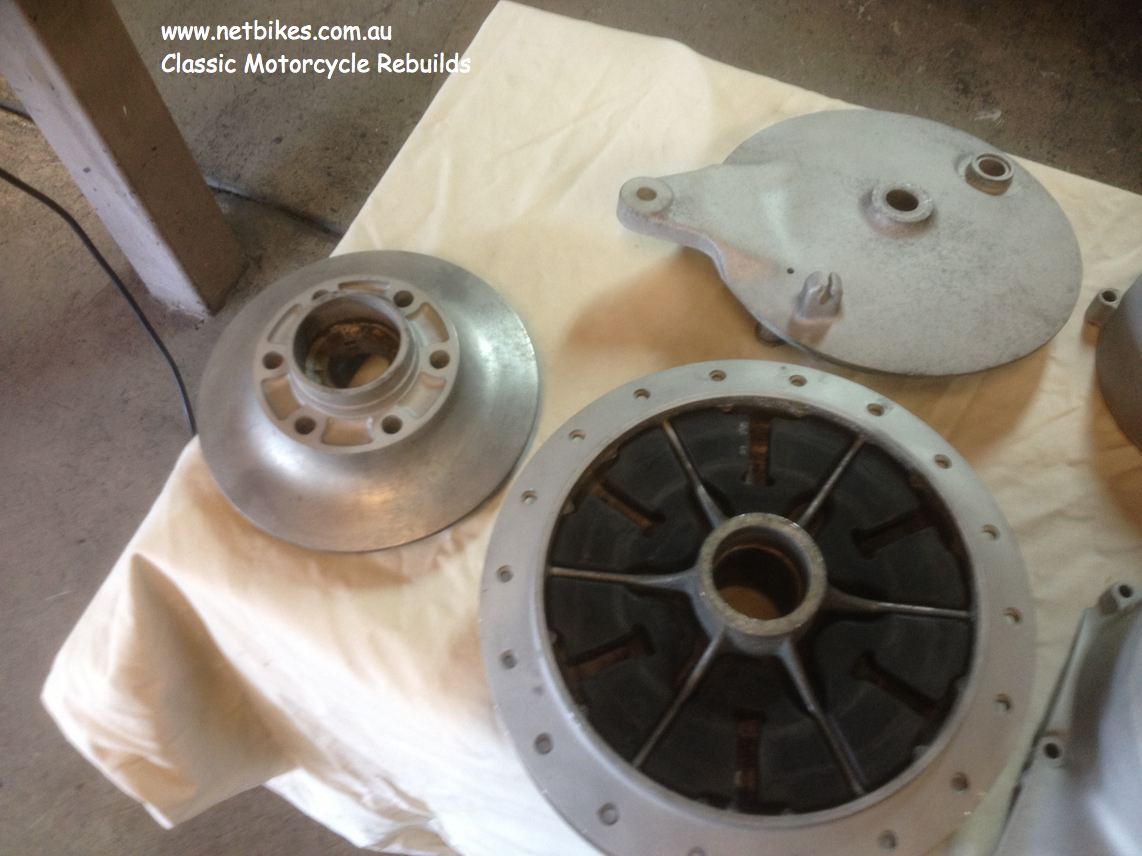

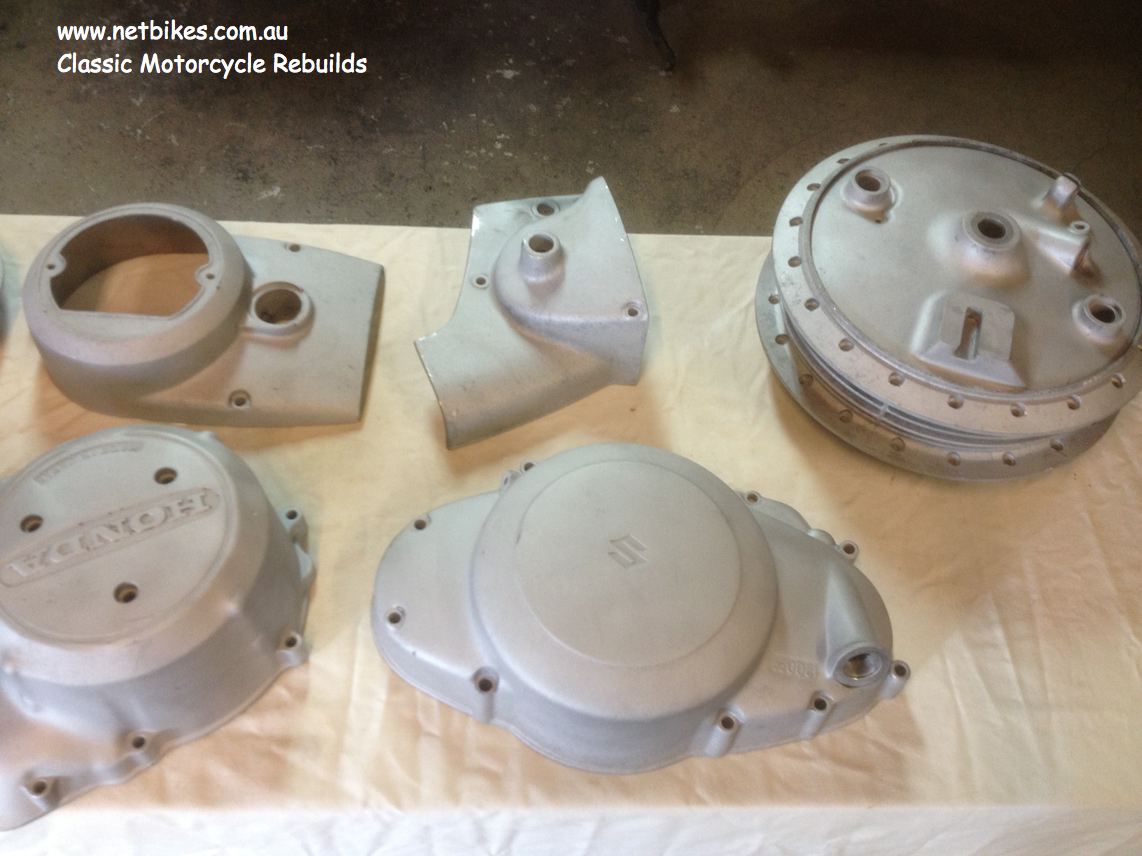

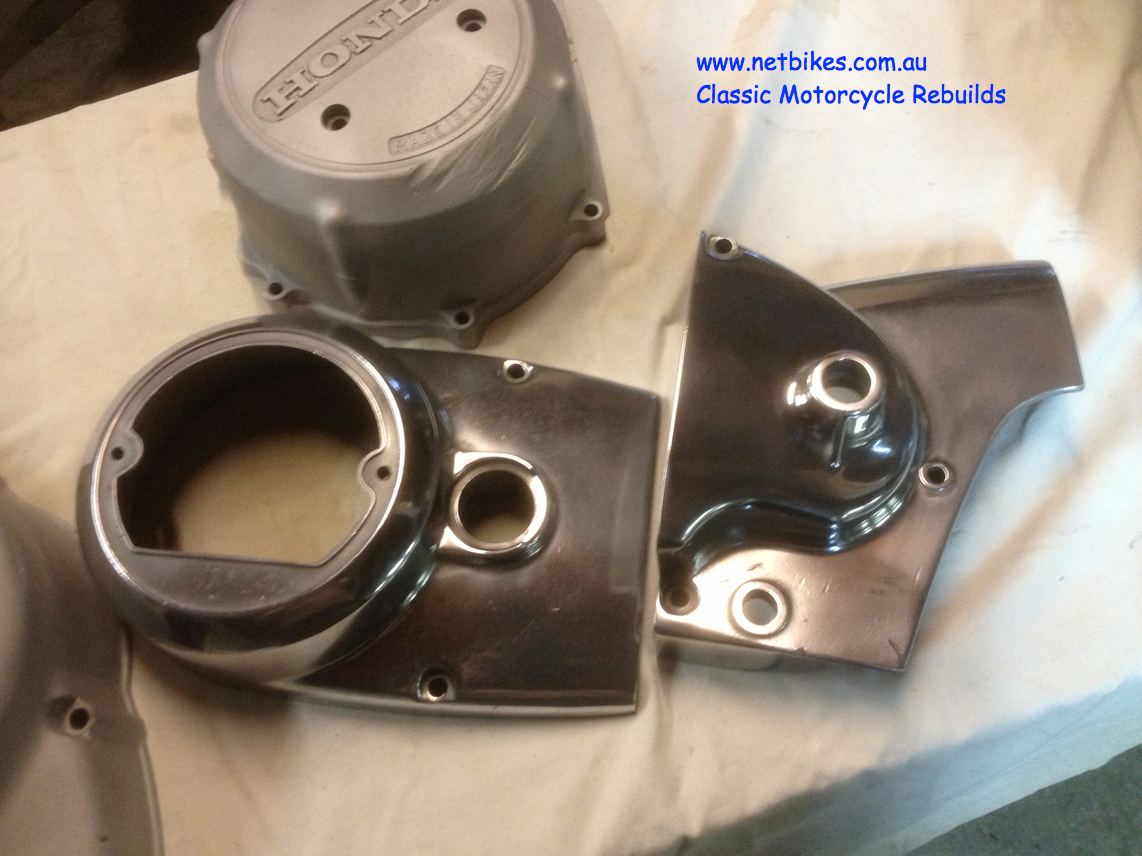

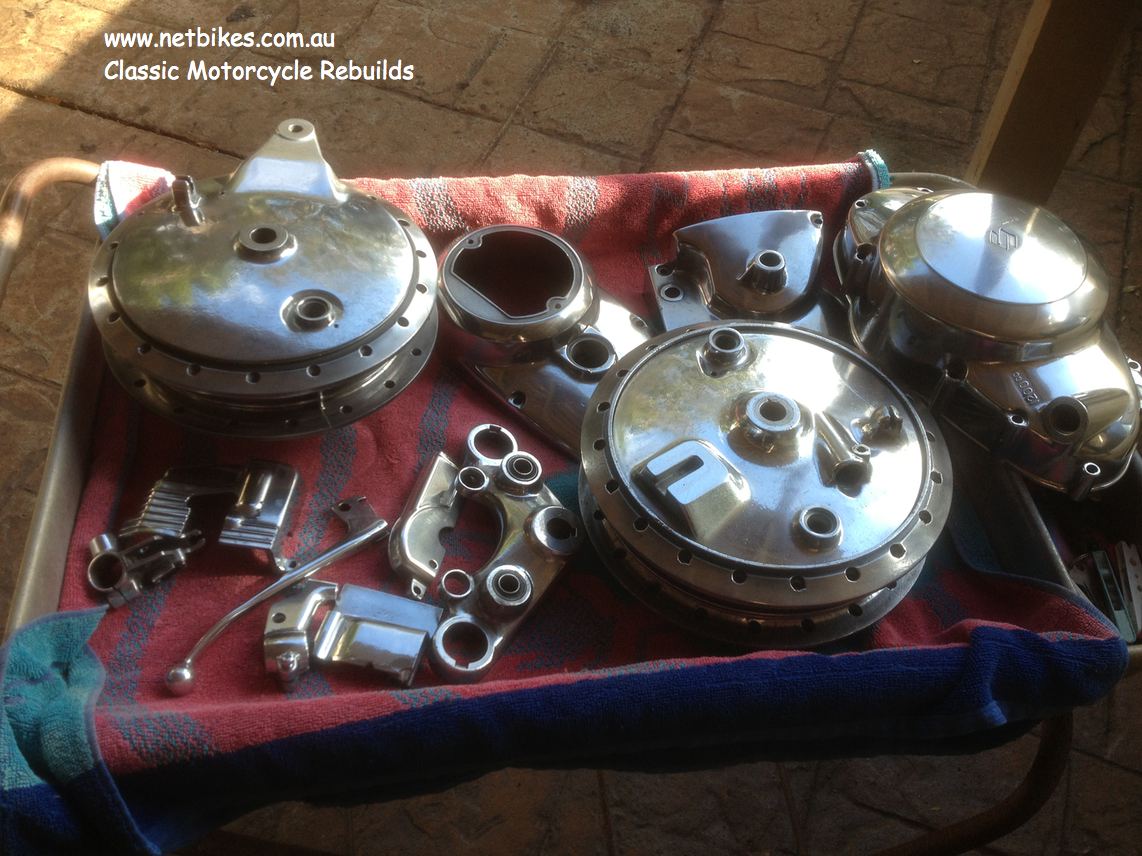

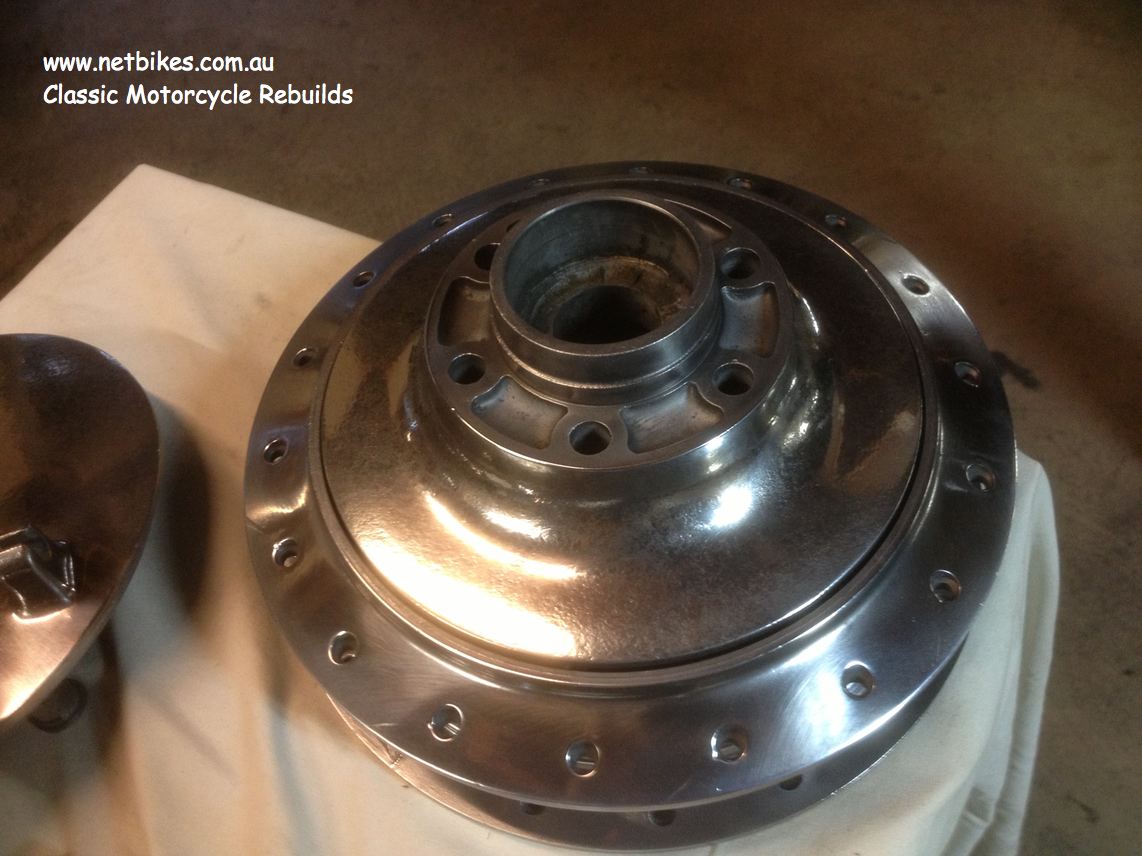

Blasted and polished parts.

suzuki T350

suzuki T350

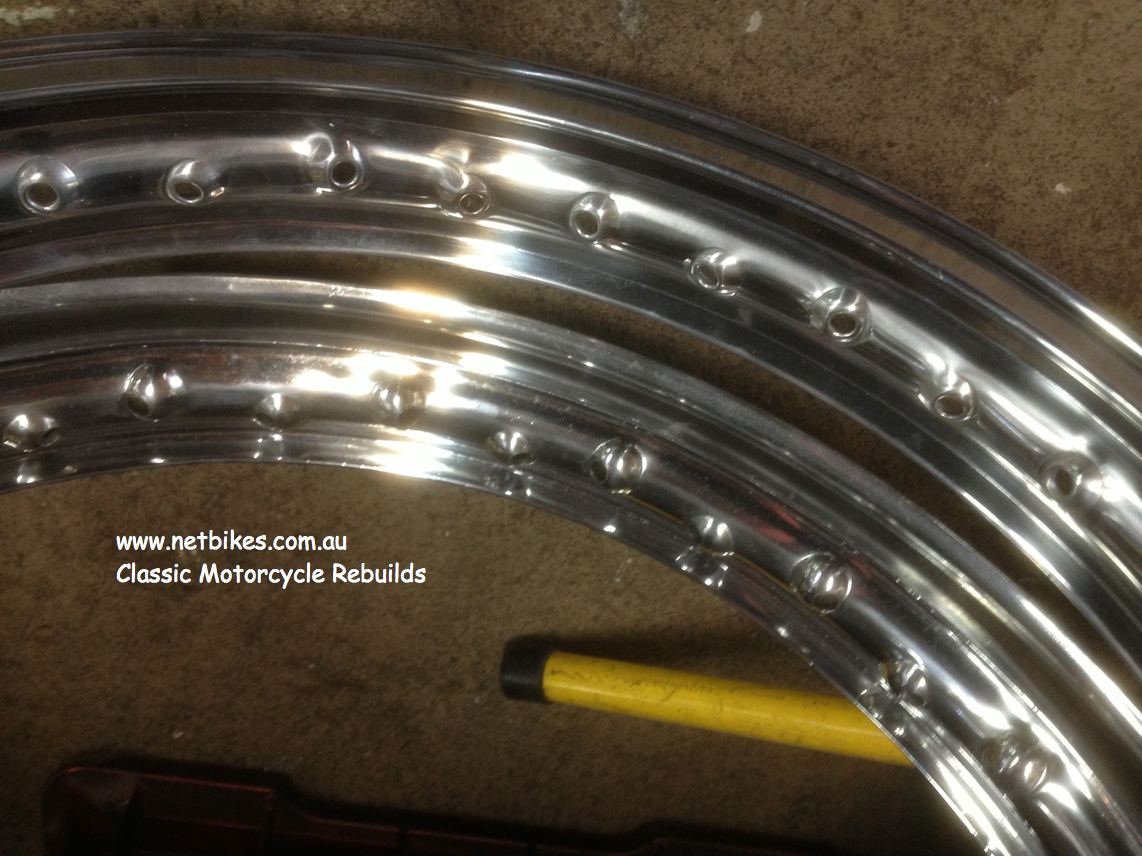

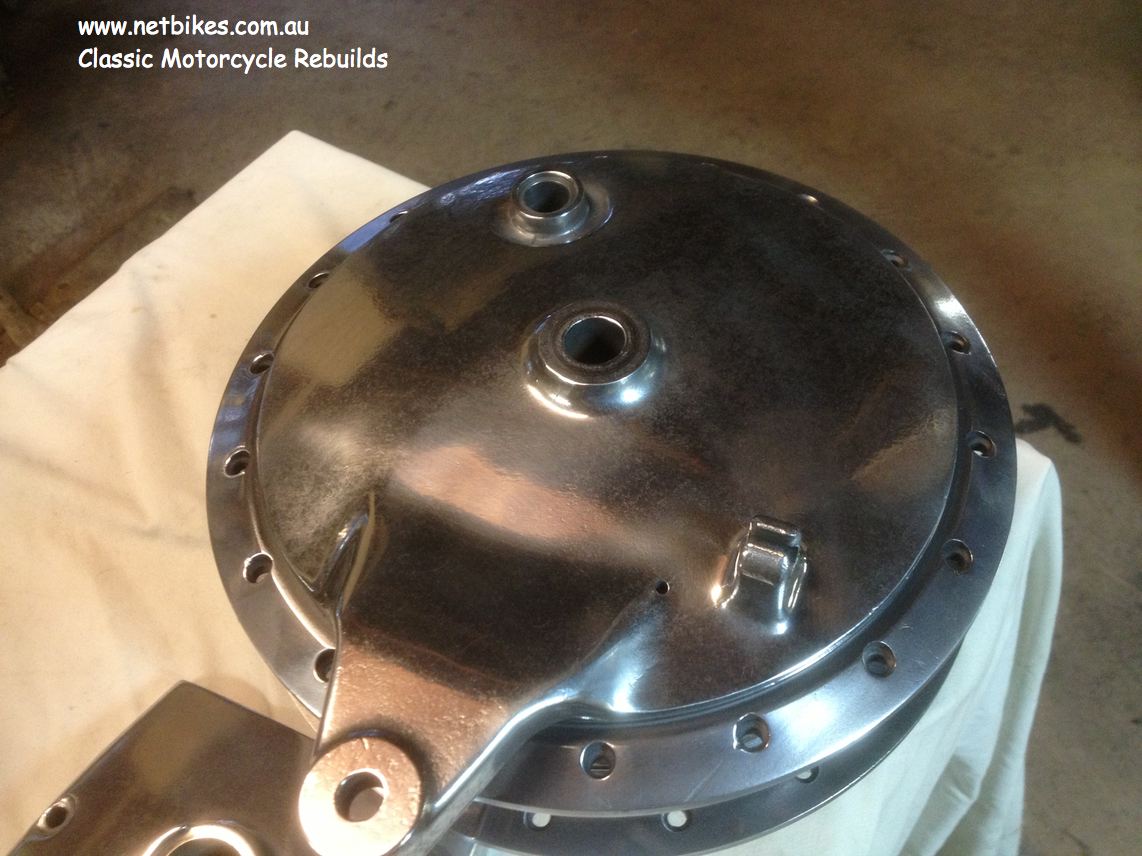

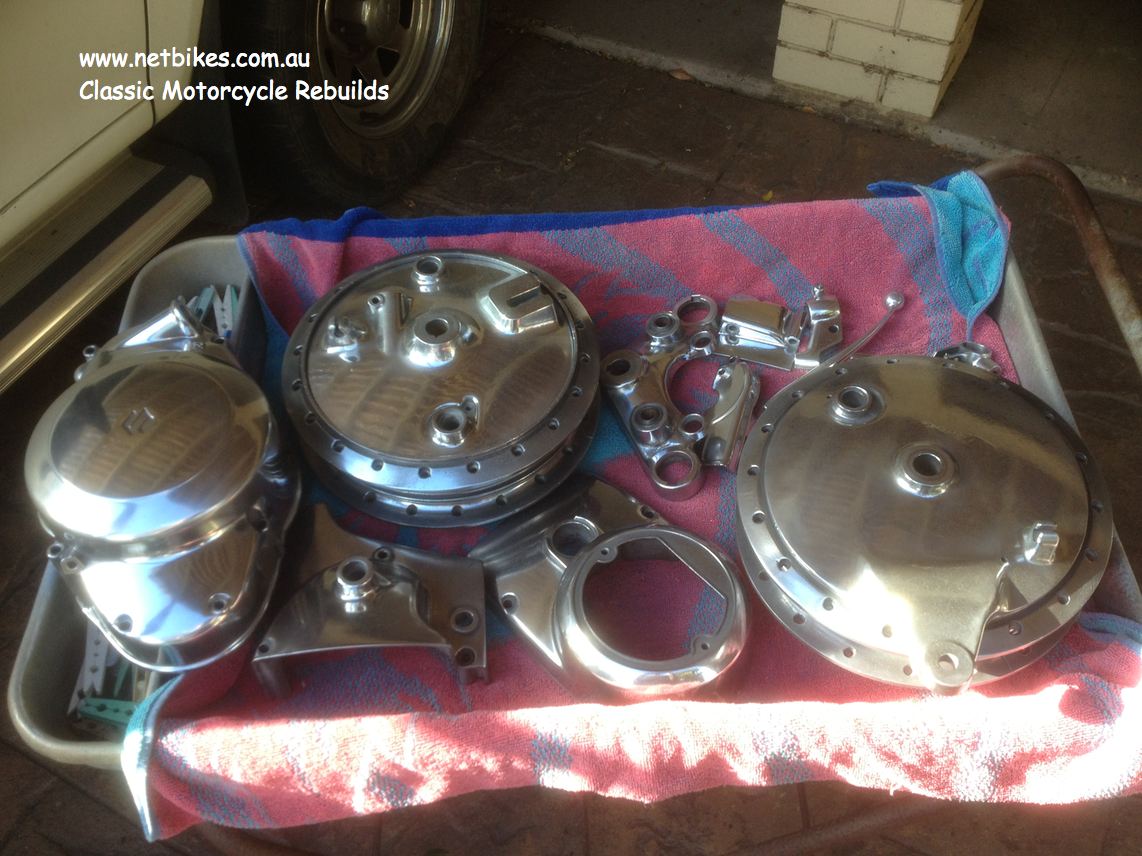

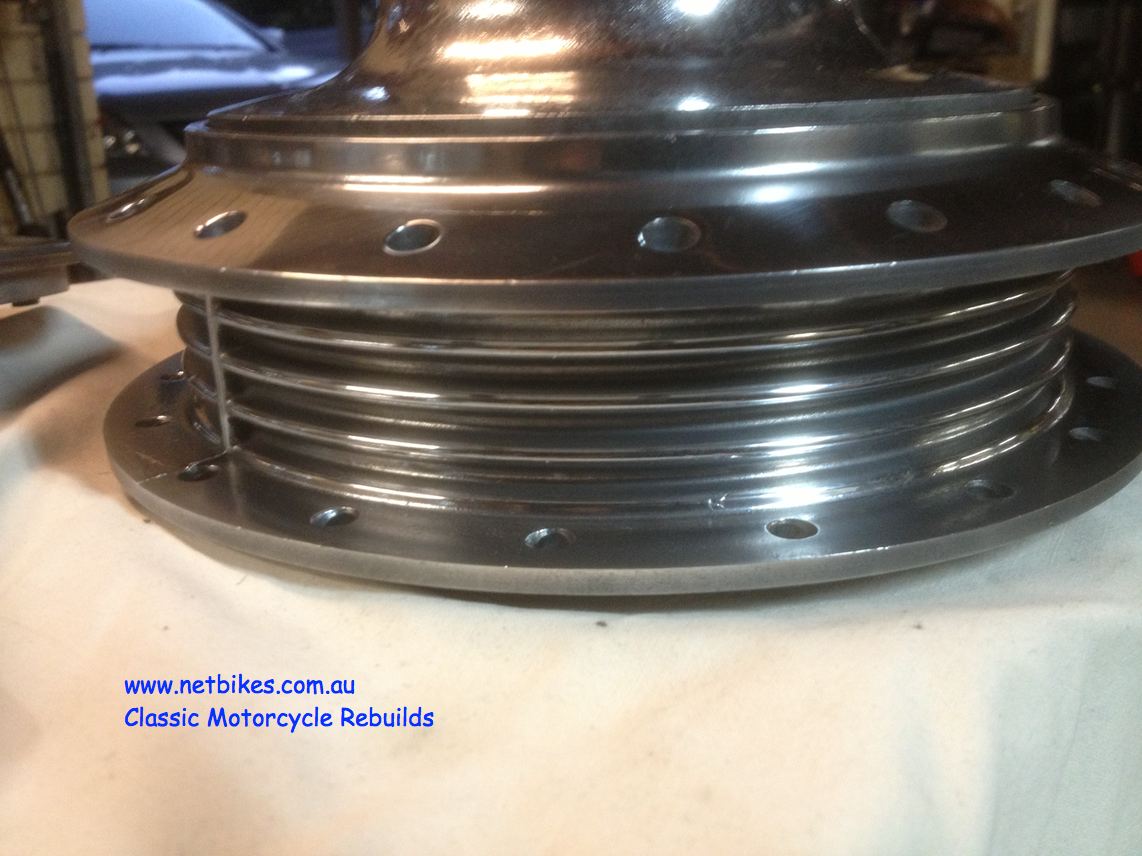

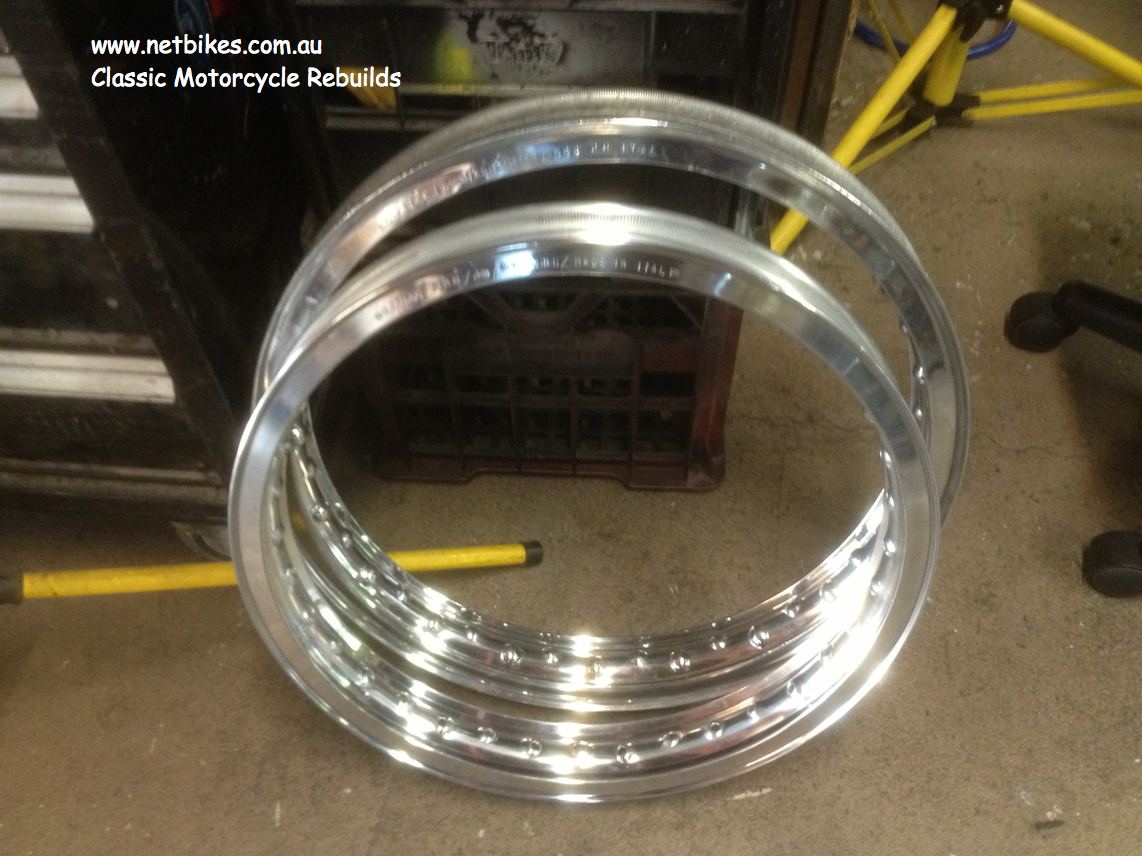

And then polished them.

suzuki T350

suzuki T350

suzuki T350

suzuki T350

suzuki T350

suzuki T350

suzuki T350

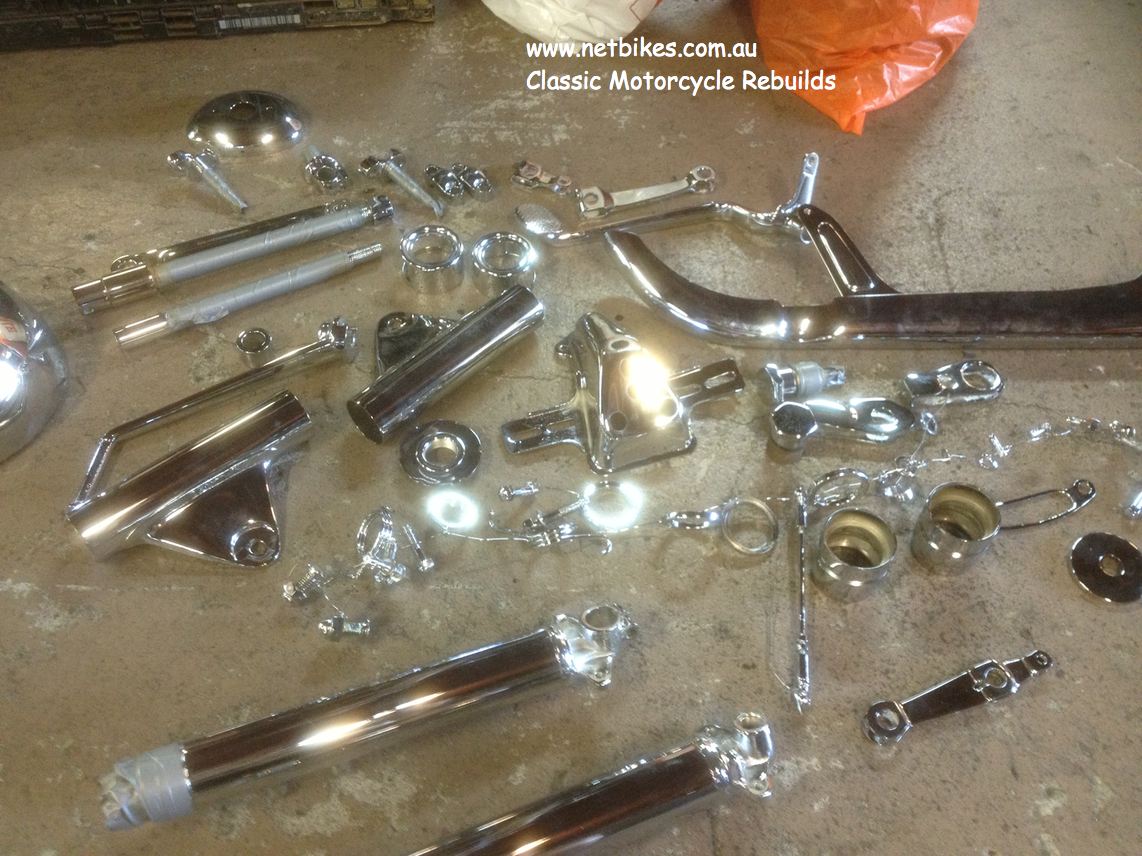

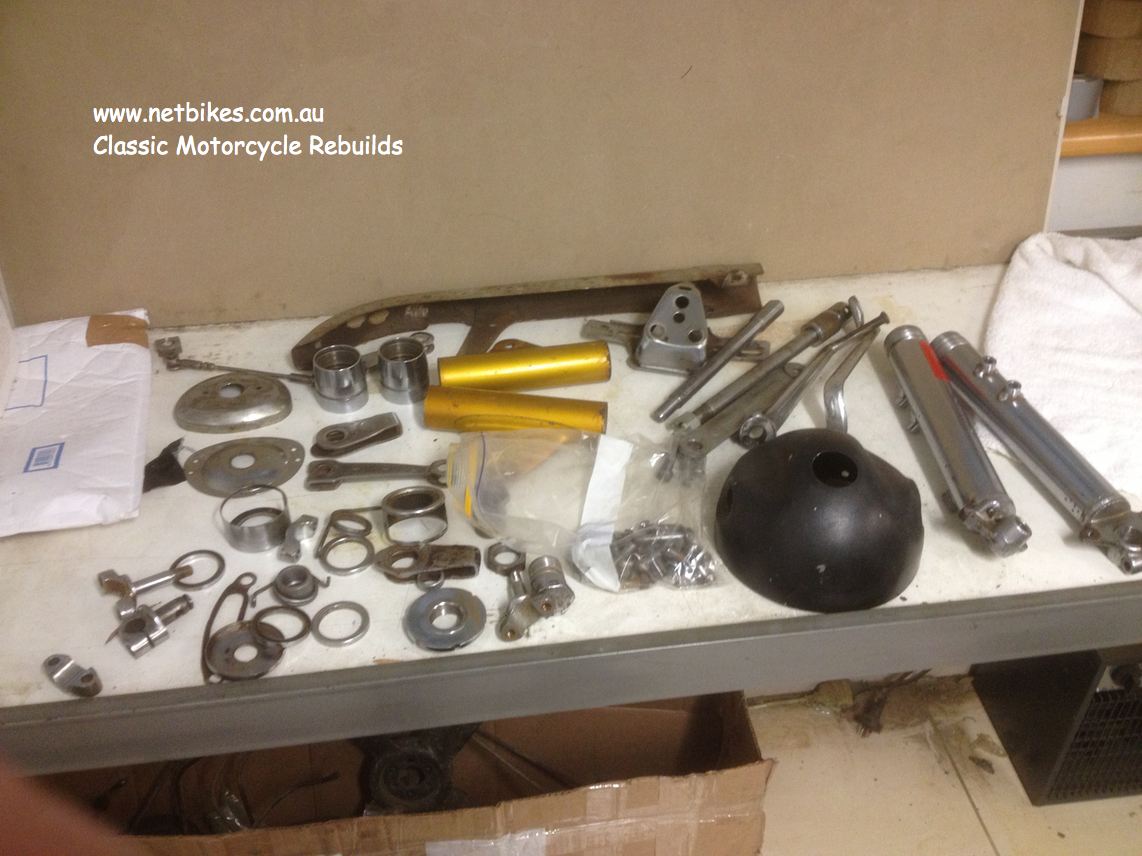

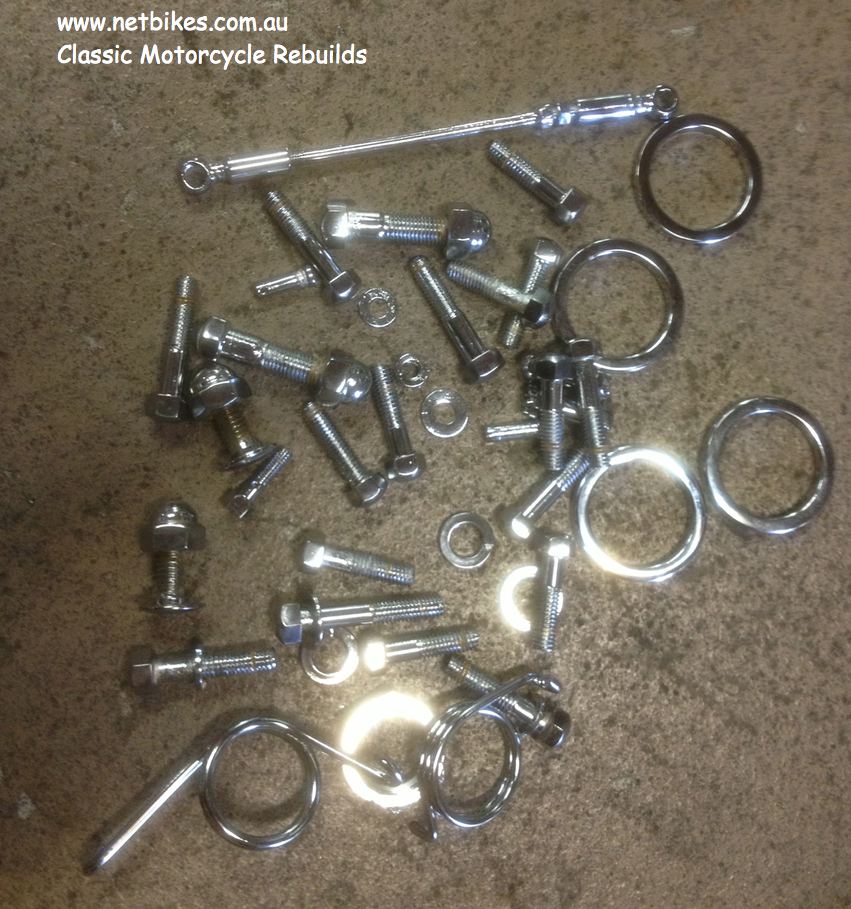

Chroming I had done

suzuki T350

suzuki T350

suzuki T350

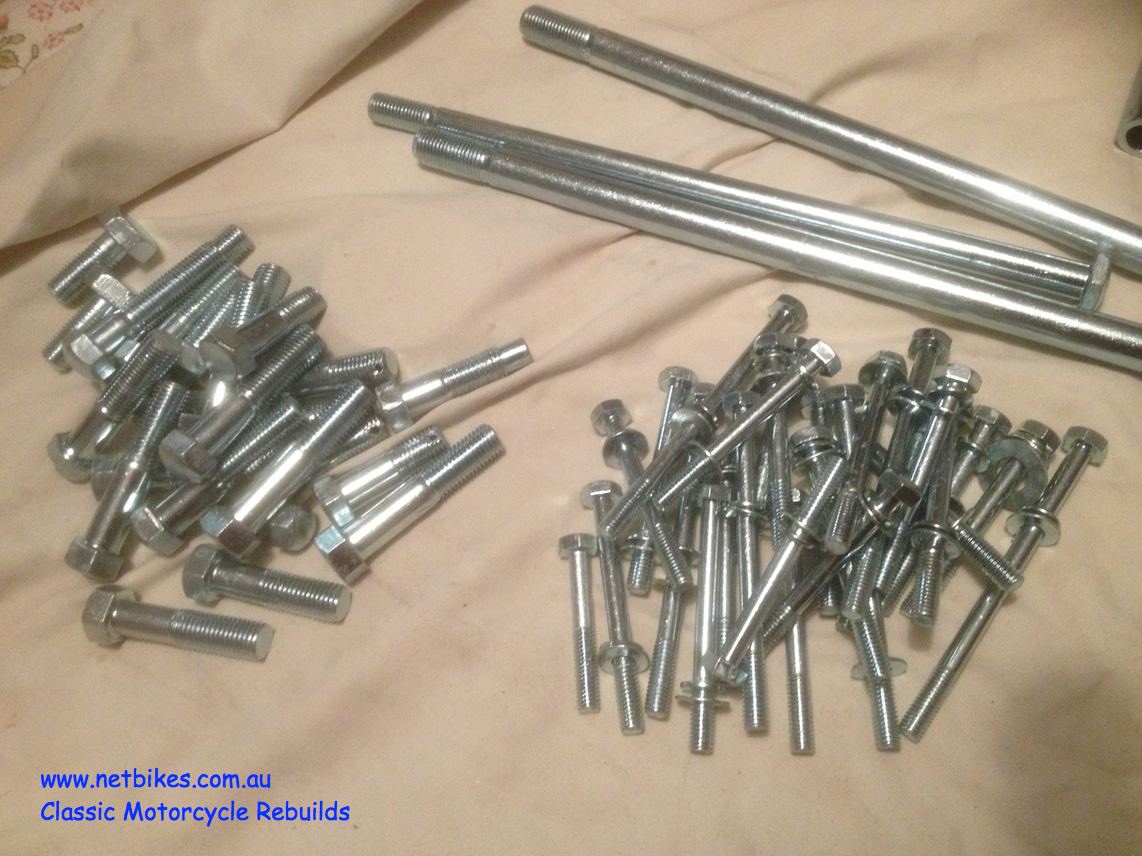

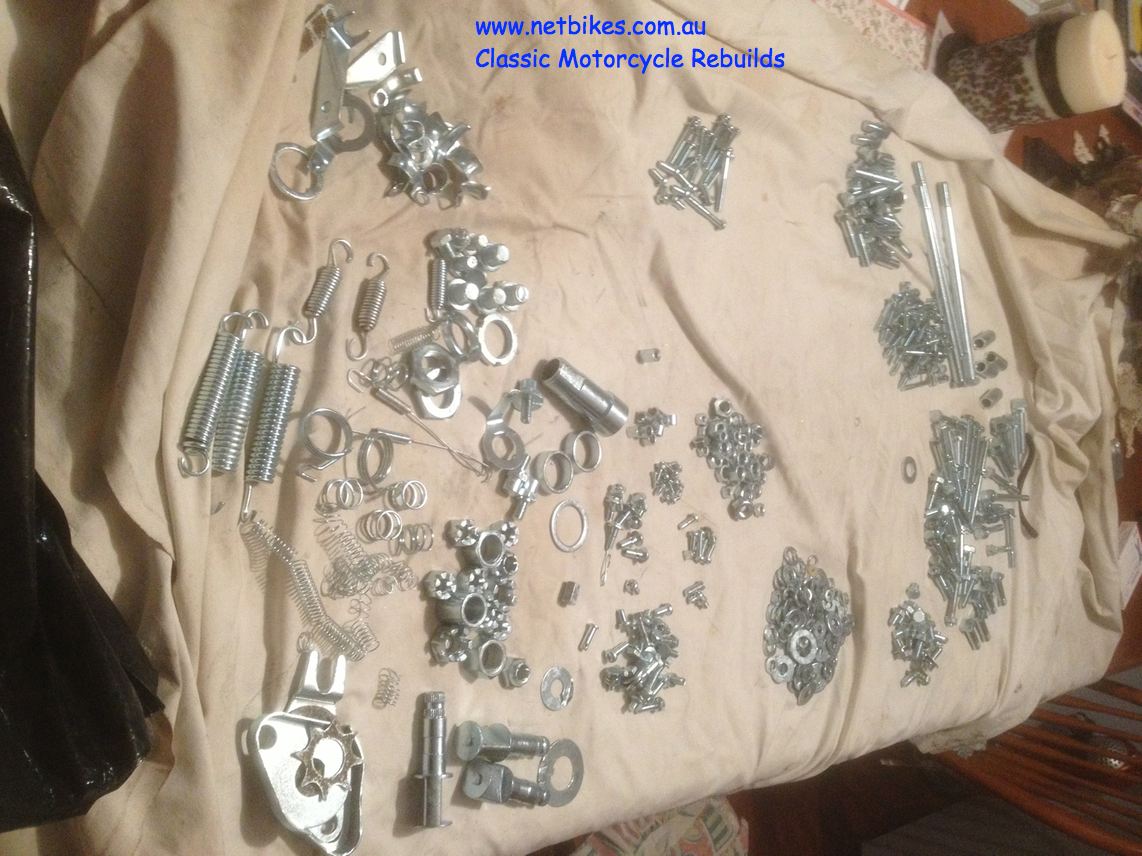

Cycle threads re zinc plated.

suzuki T350

suzuki T350

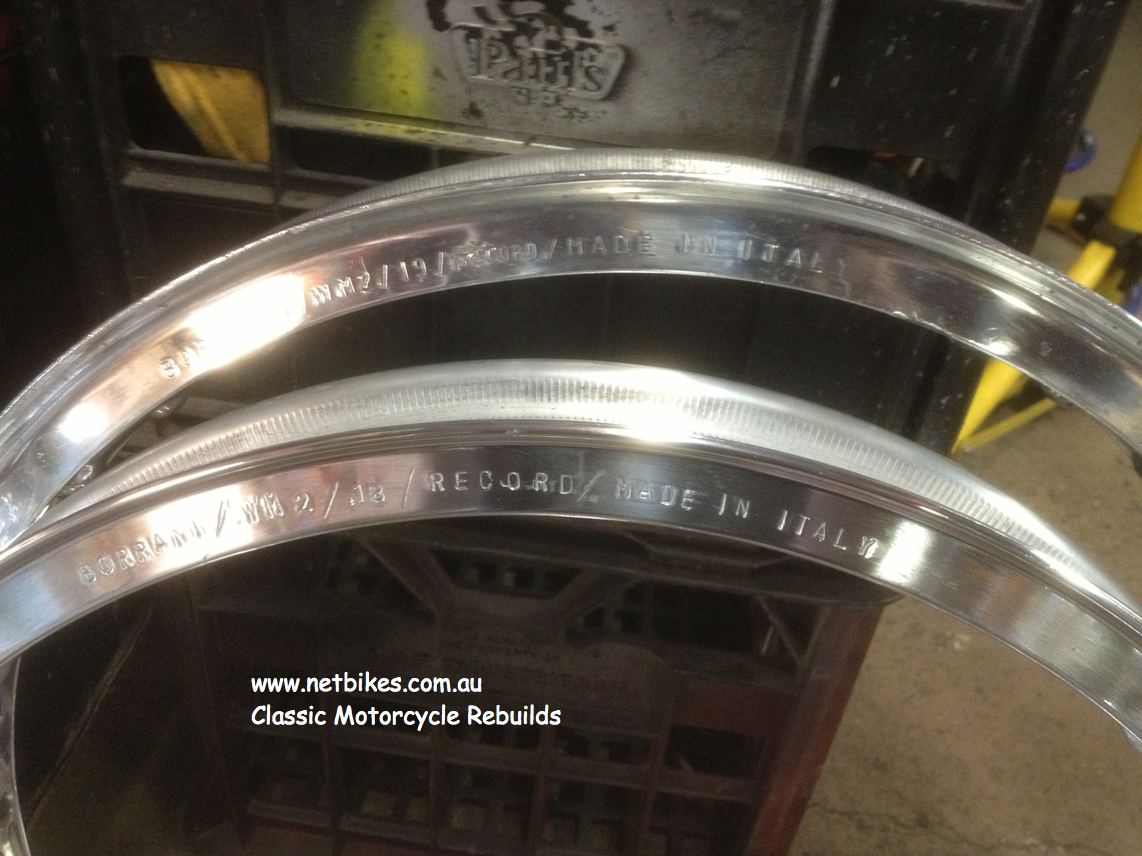

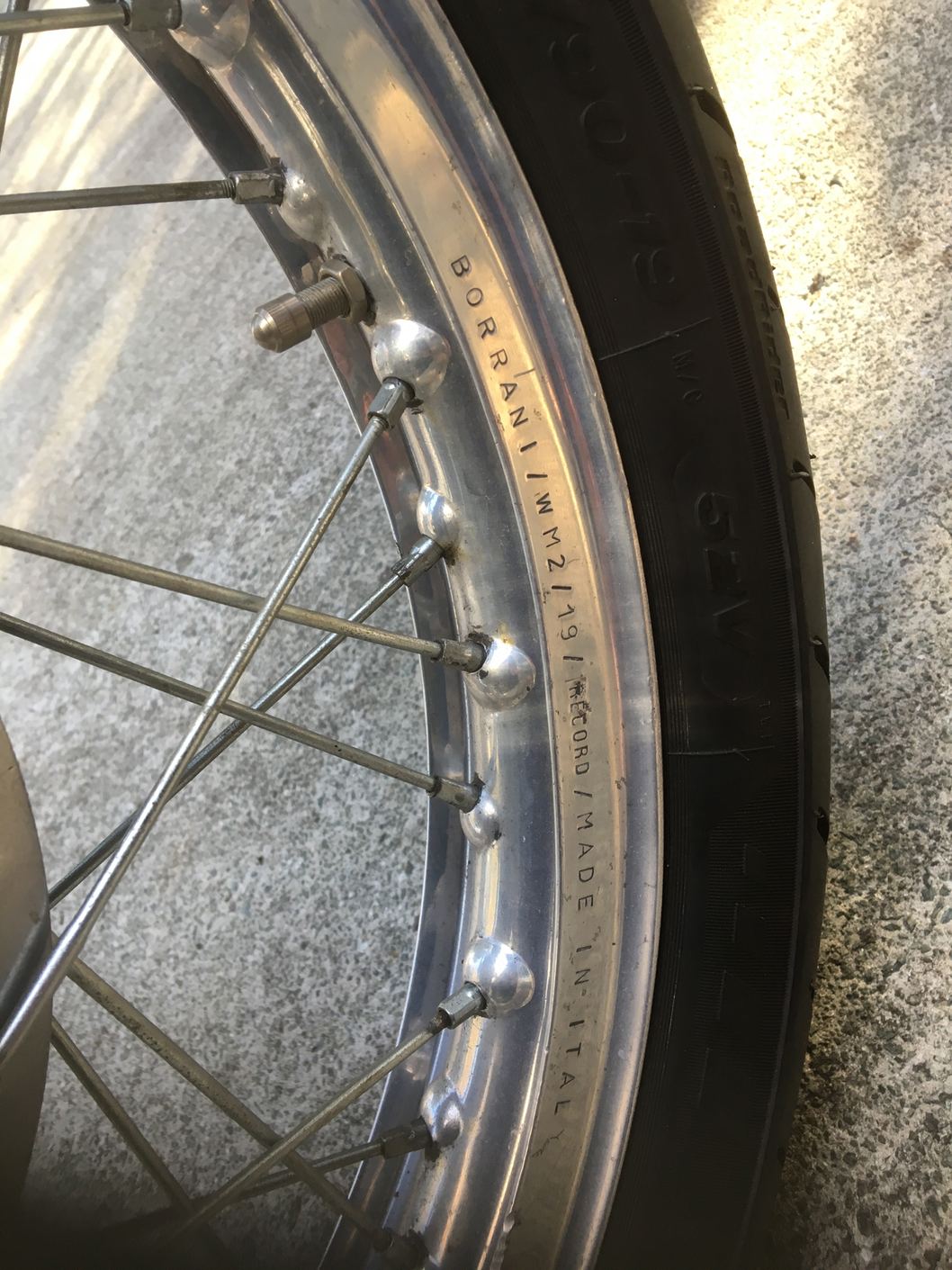

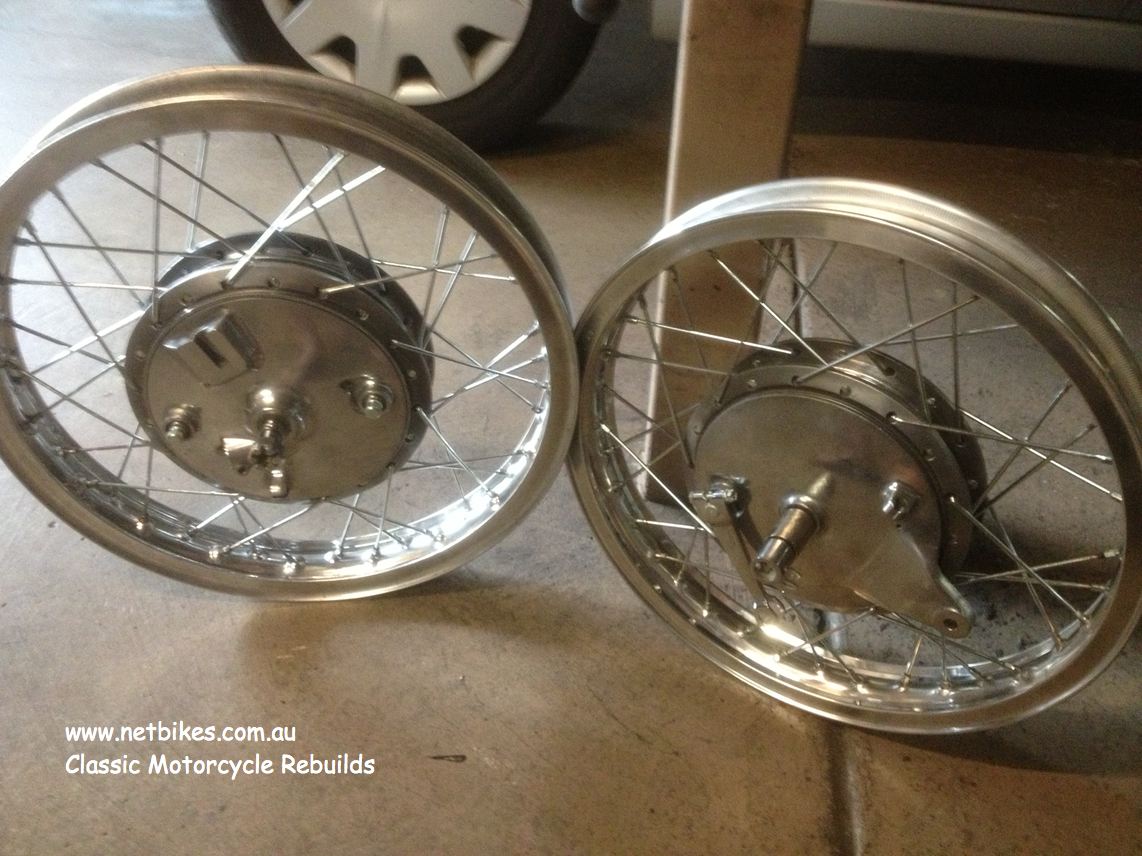

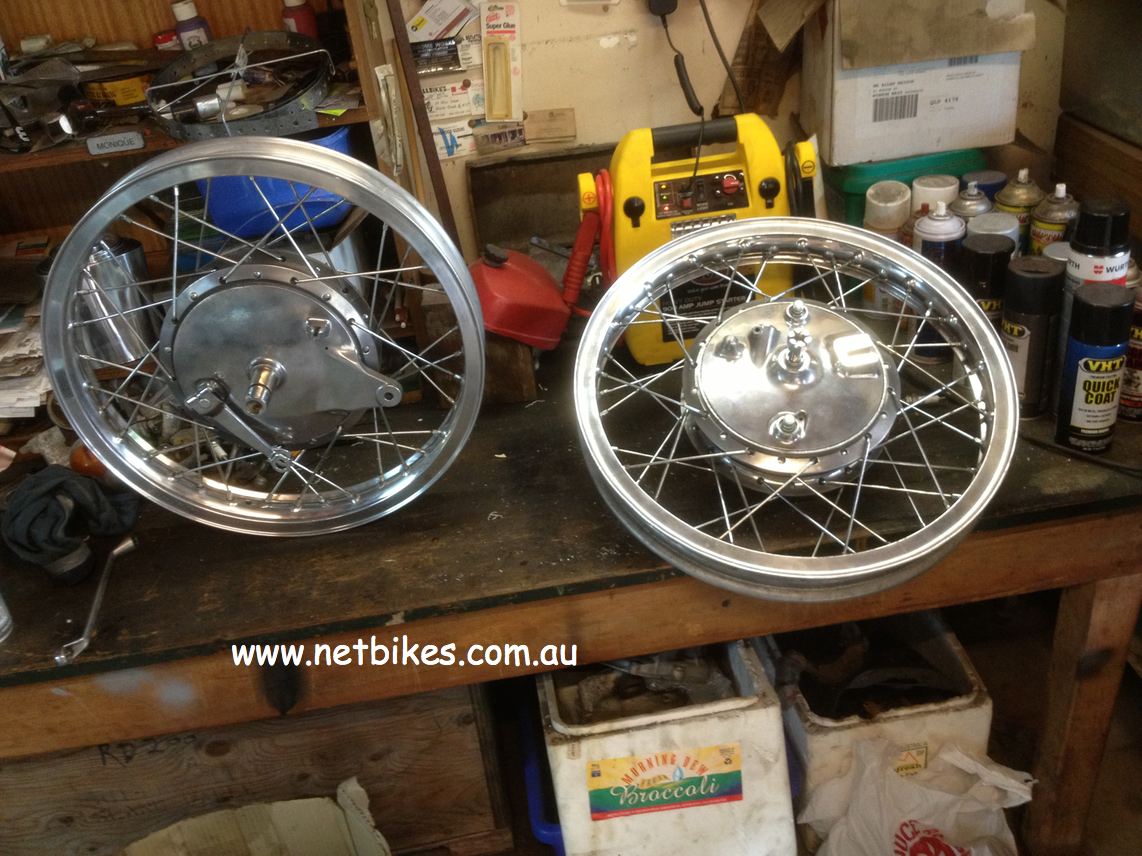

The wheels, both are Borrani, the front was fitted to a H1 Kawasaki in the 70's and is therefore 19inch, the rear is 18inch.

suzuki T350

suzuki T350

suzuki T350

suzuki T350

suzuki T350

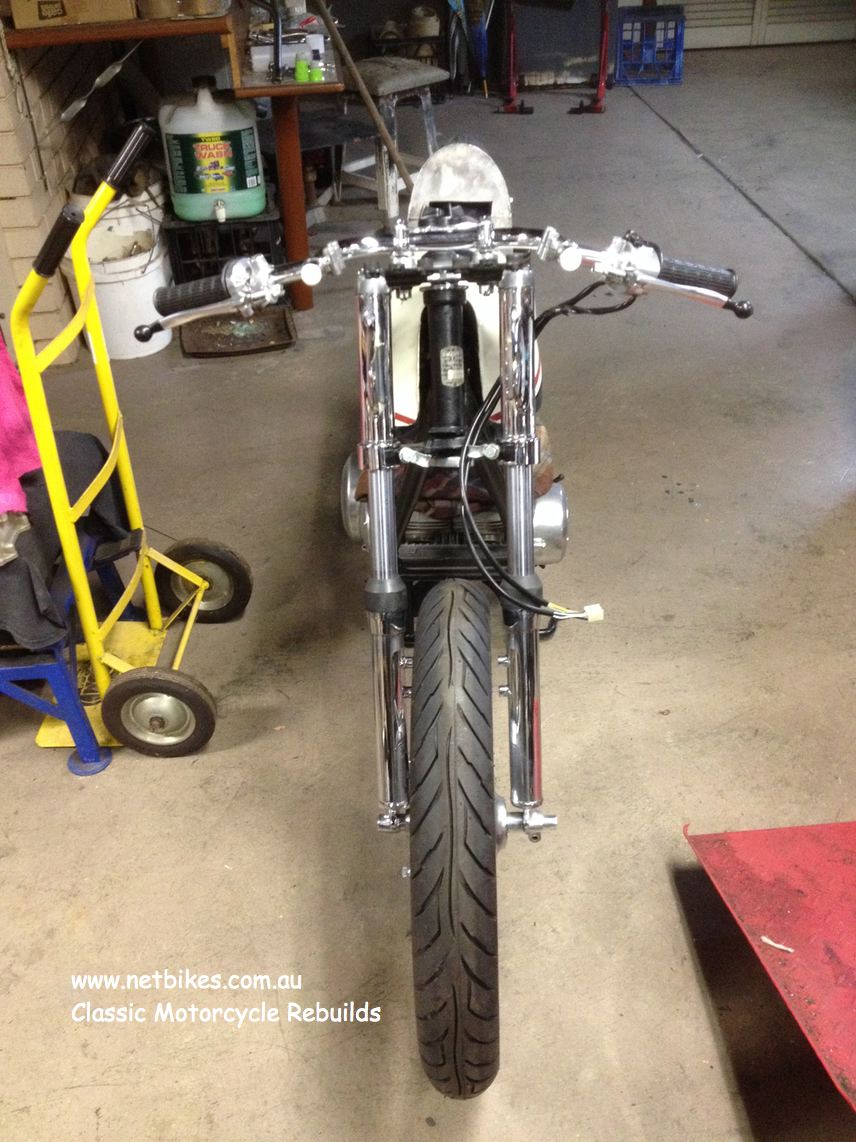

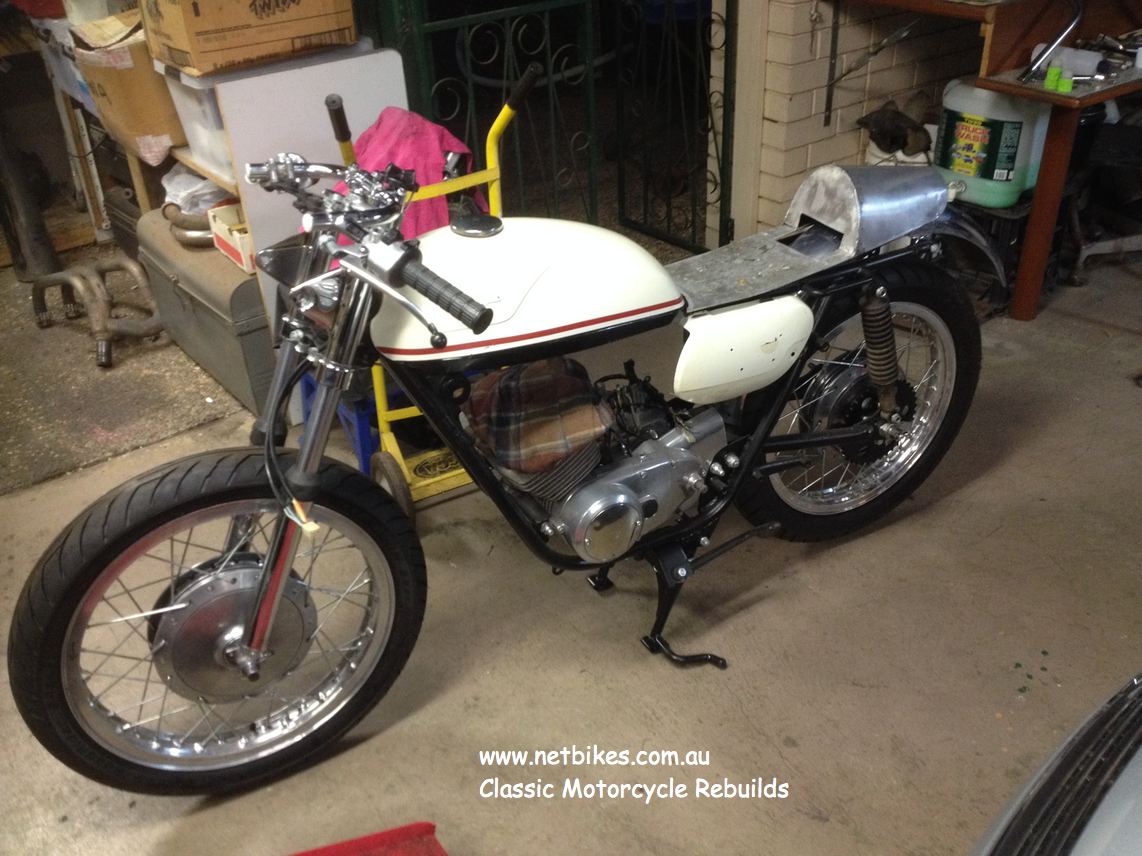

Putting it all together, or mocking it up really.
Those instruments have now been used on another bike but I have a nice set from a 72 model I will use,

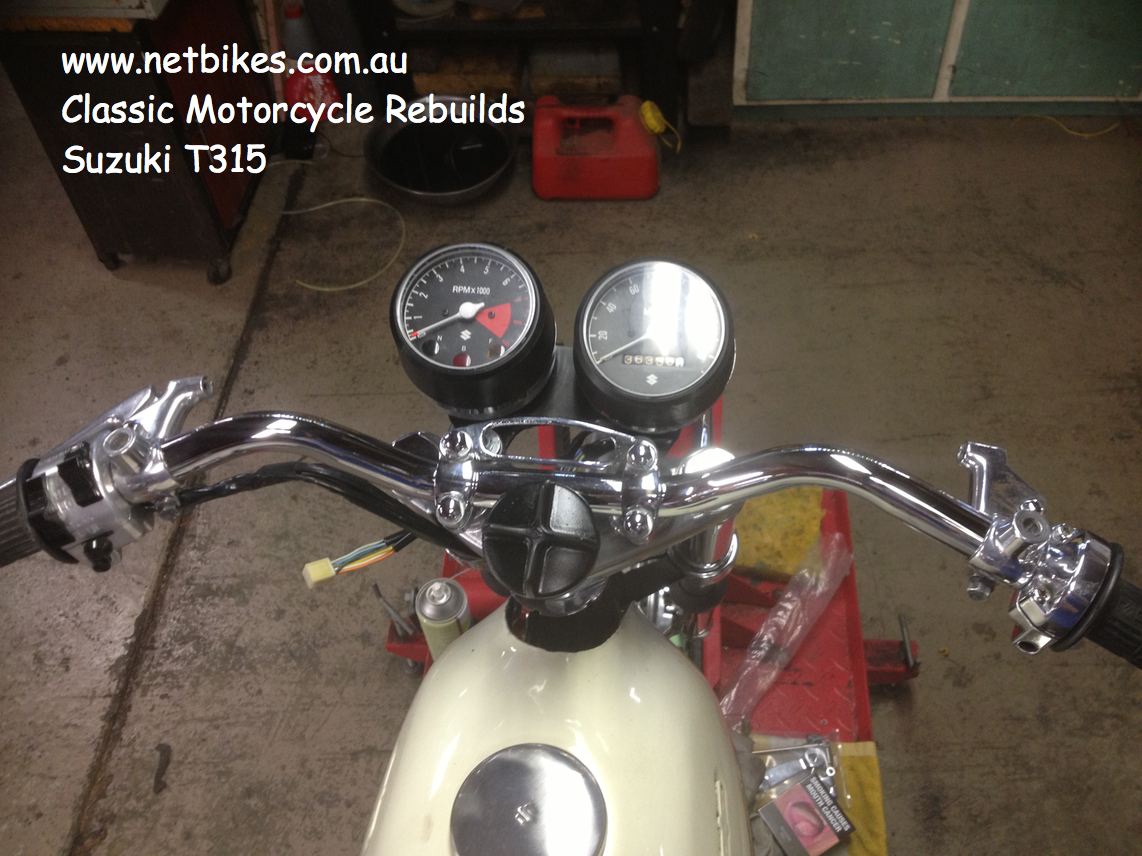

The bars have now been replaced with adjustable clubmans.

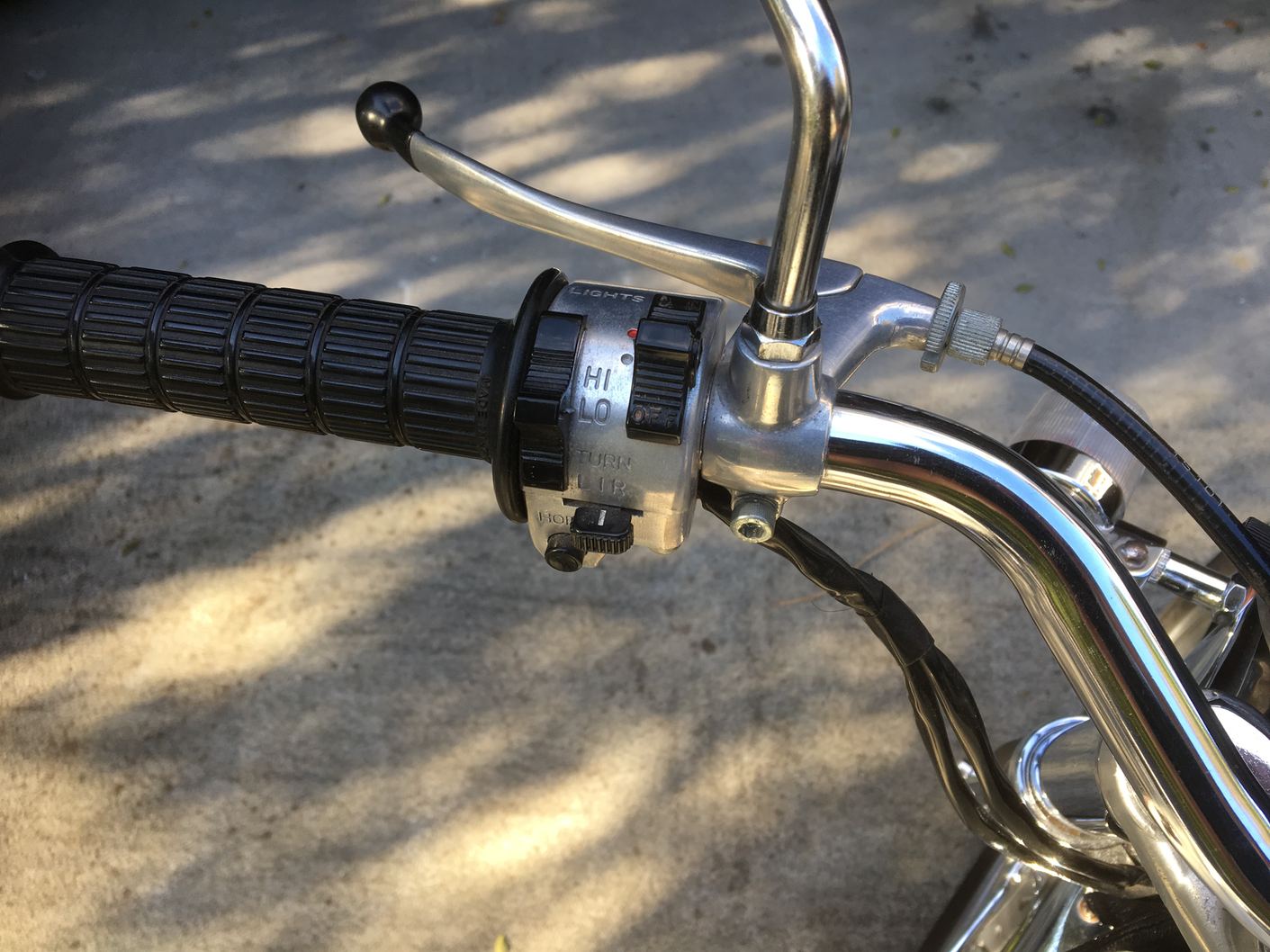

The left switch block is NOS.

suzuki T350

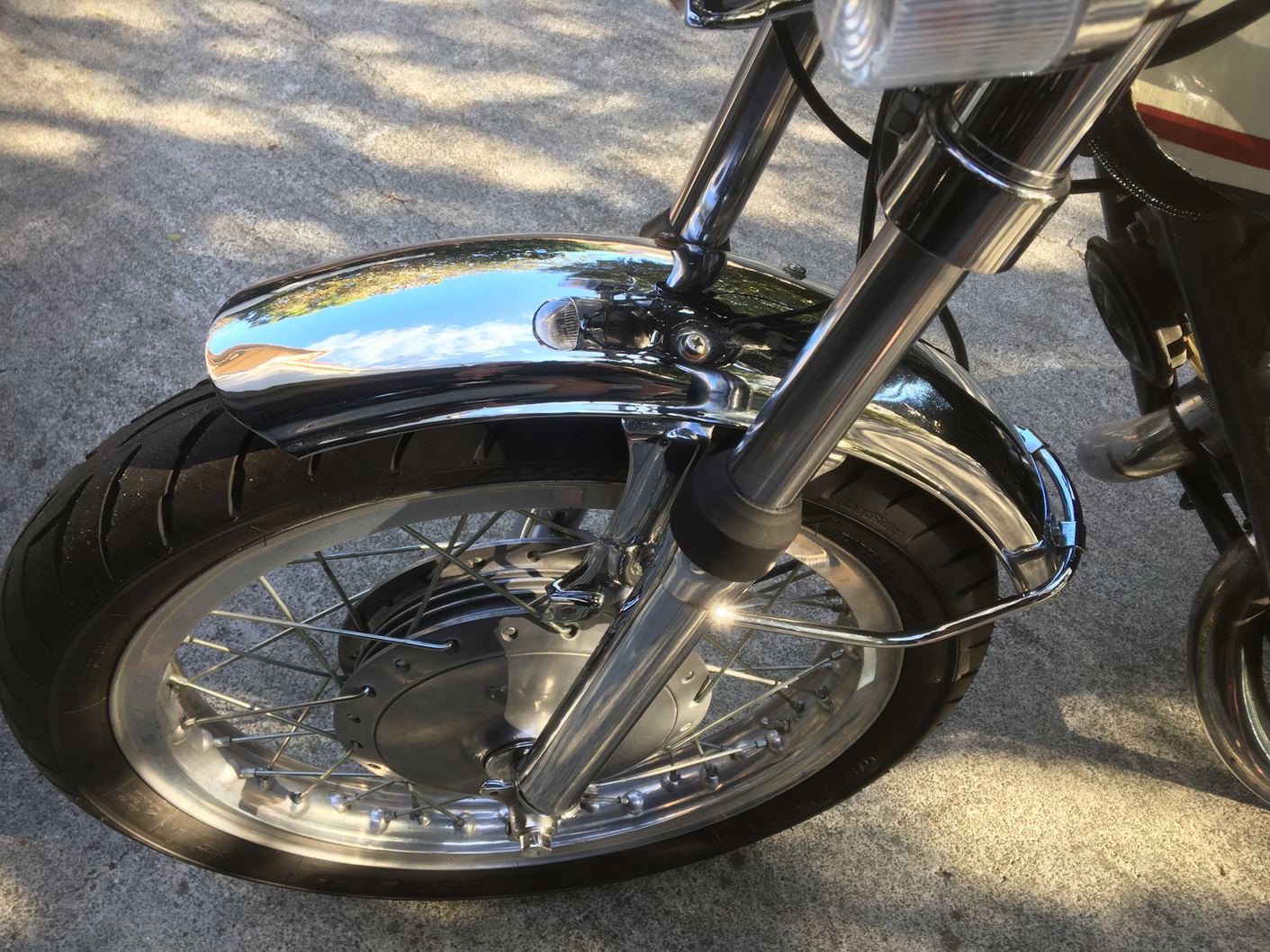

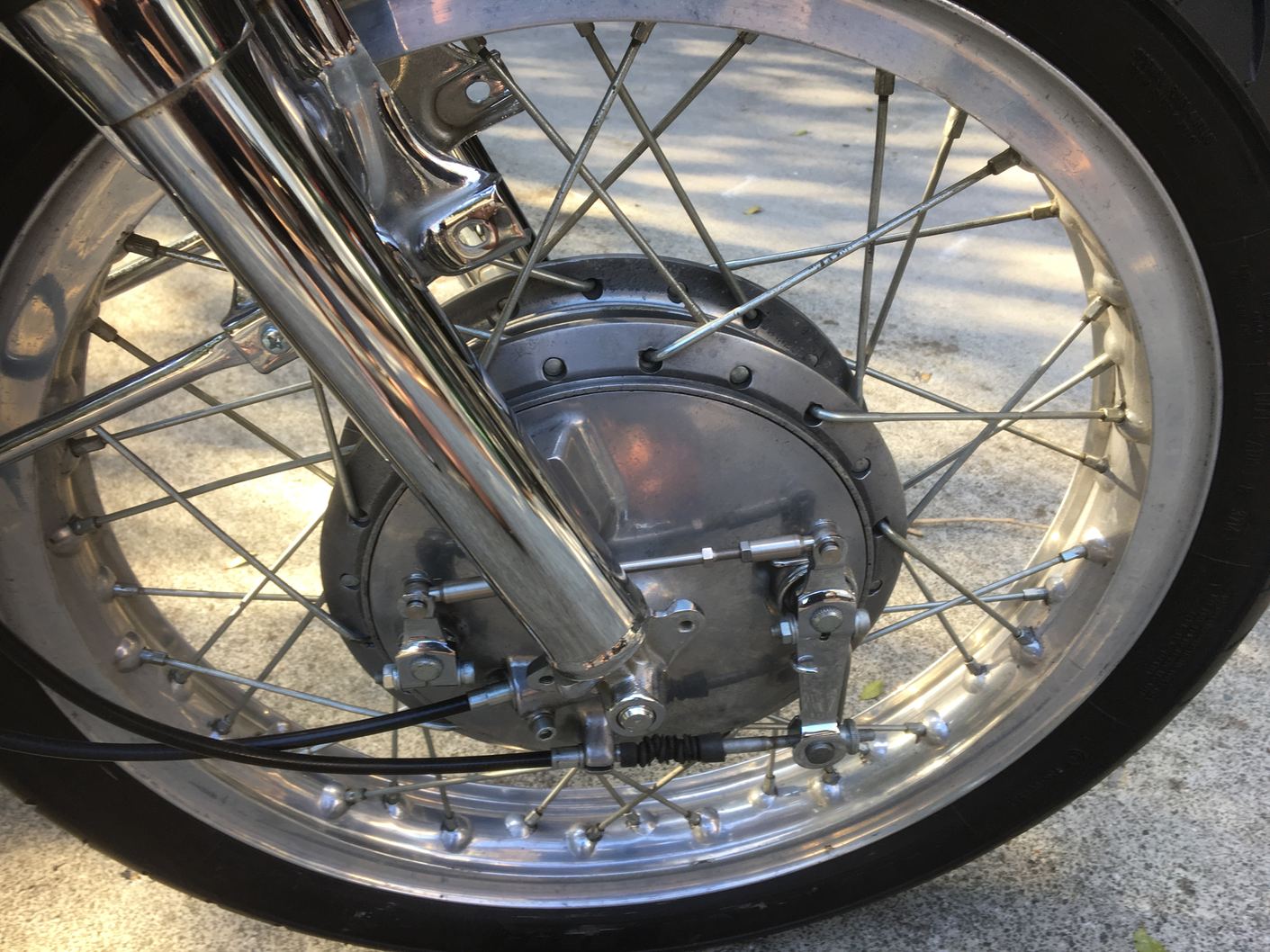

The fork tubes are NOS, front wheel sits with brake on right side as per Kawa H1
The axle was modified to fit the T350 fork lowers, I will be using a T500 front guard.

suzuki T350

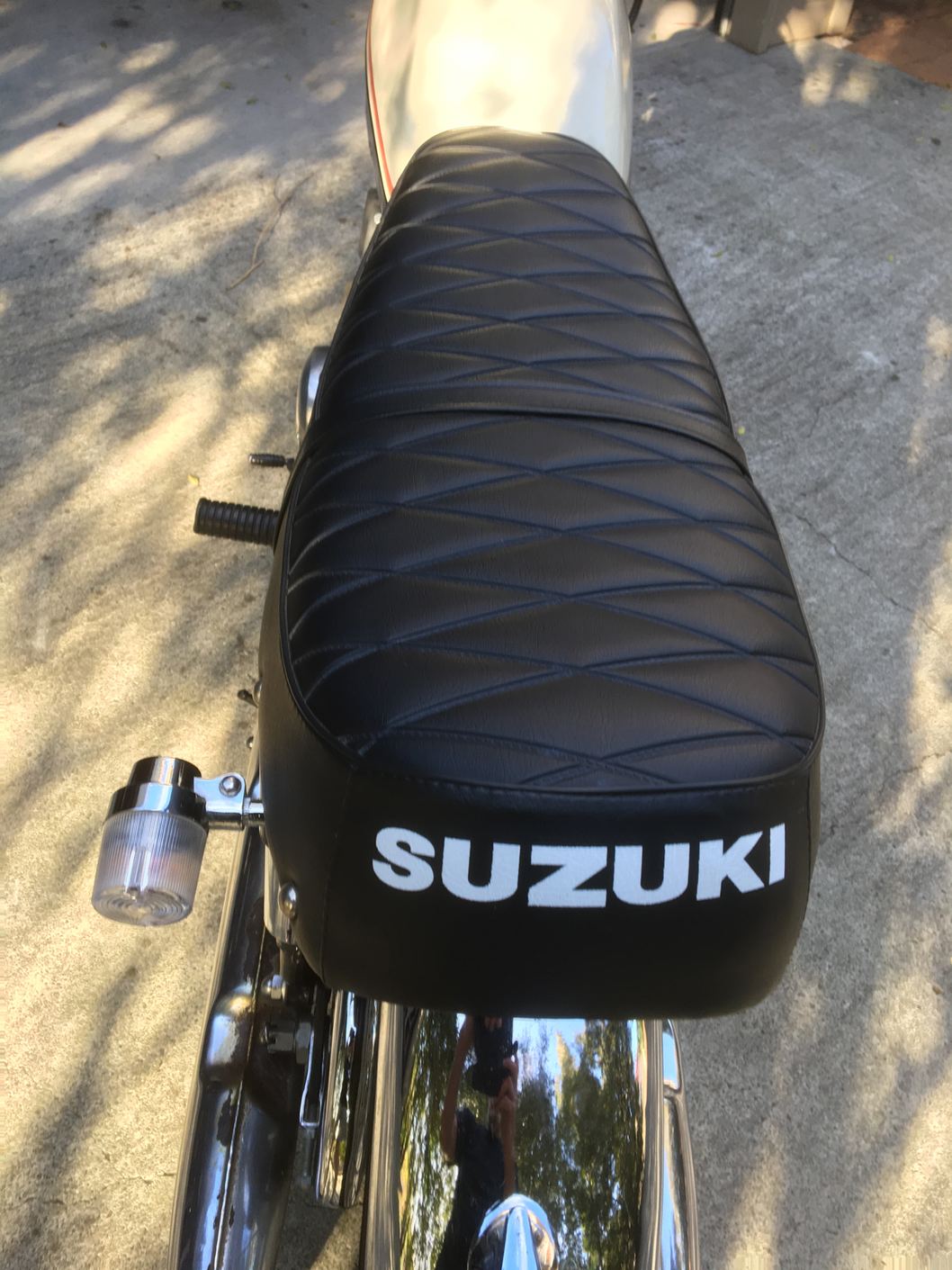

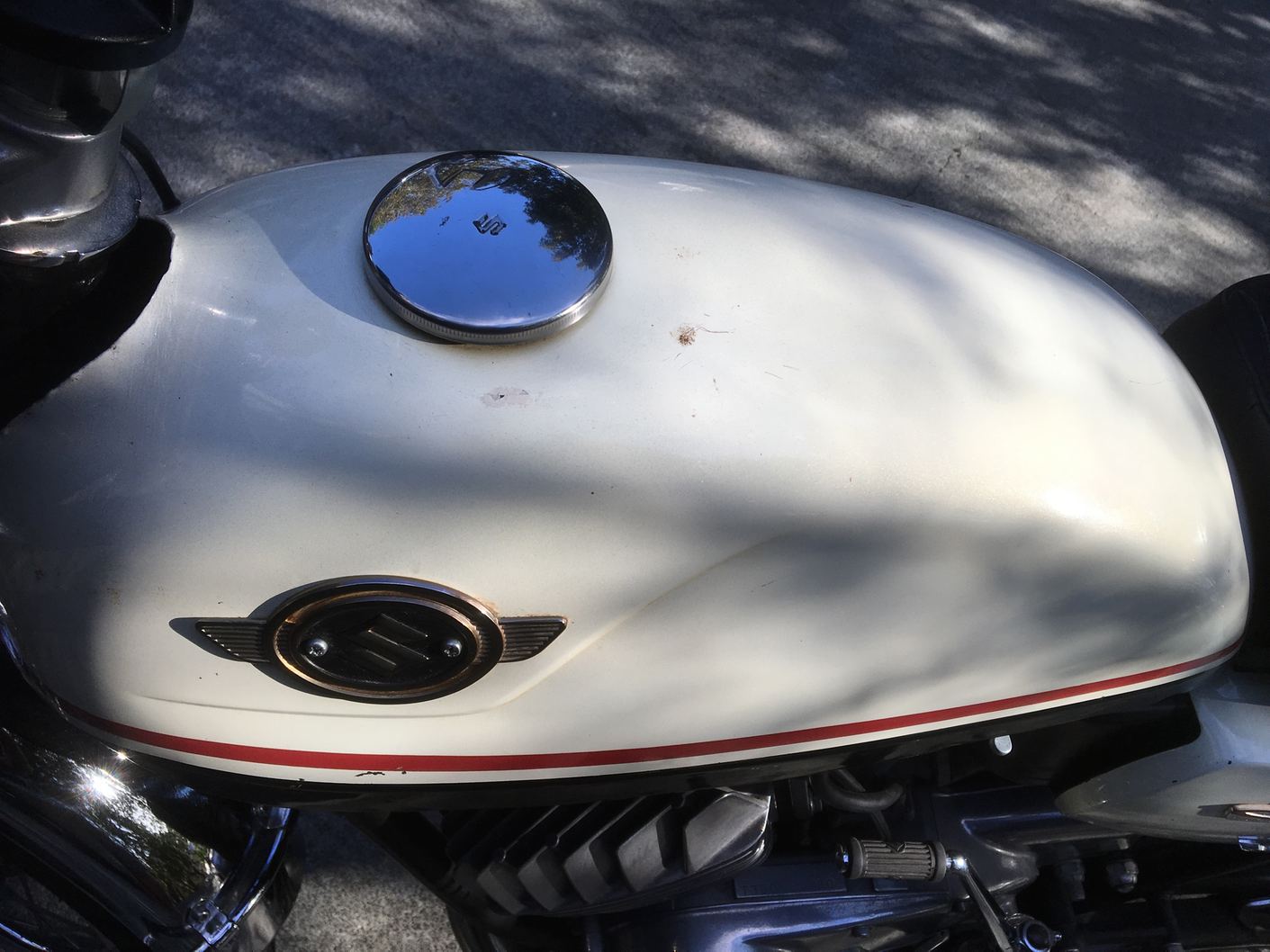

The tank is 1969 T350, the seat is home built.

suzuki T350

Suzuki T350

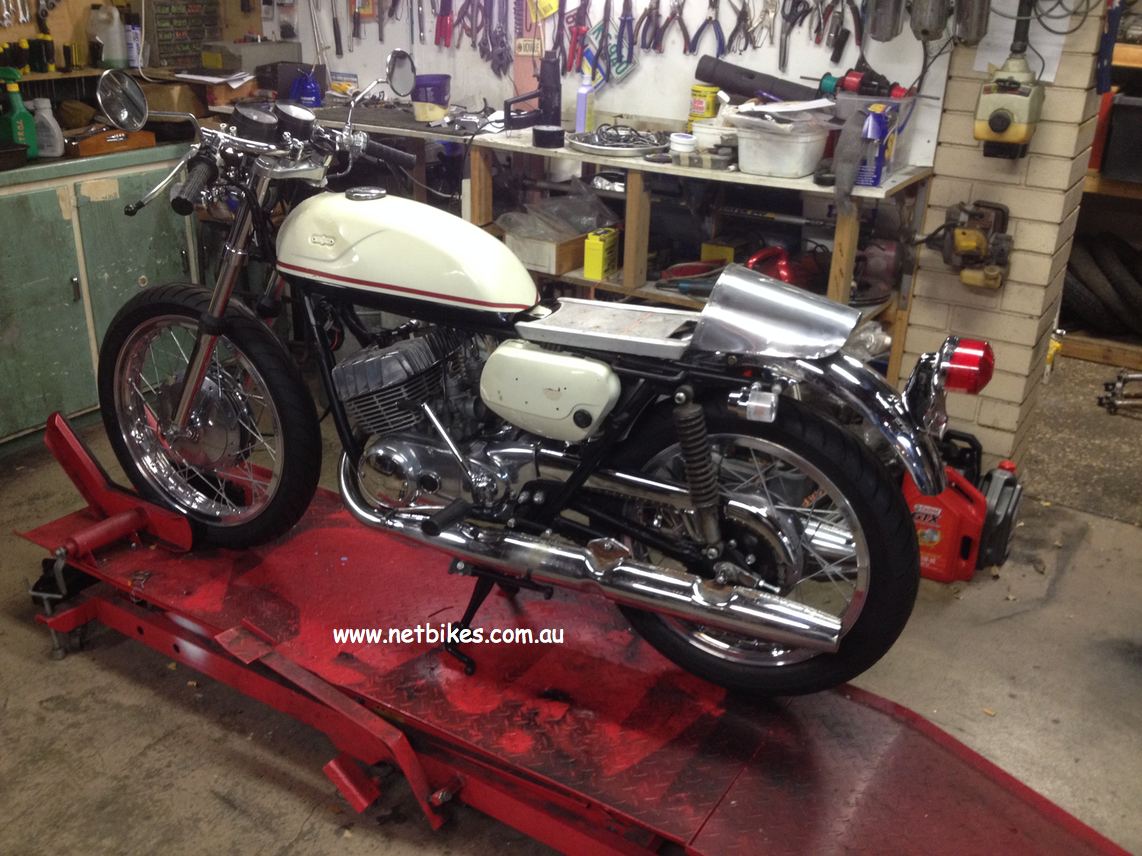

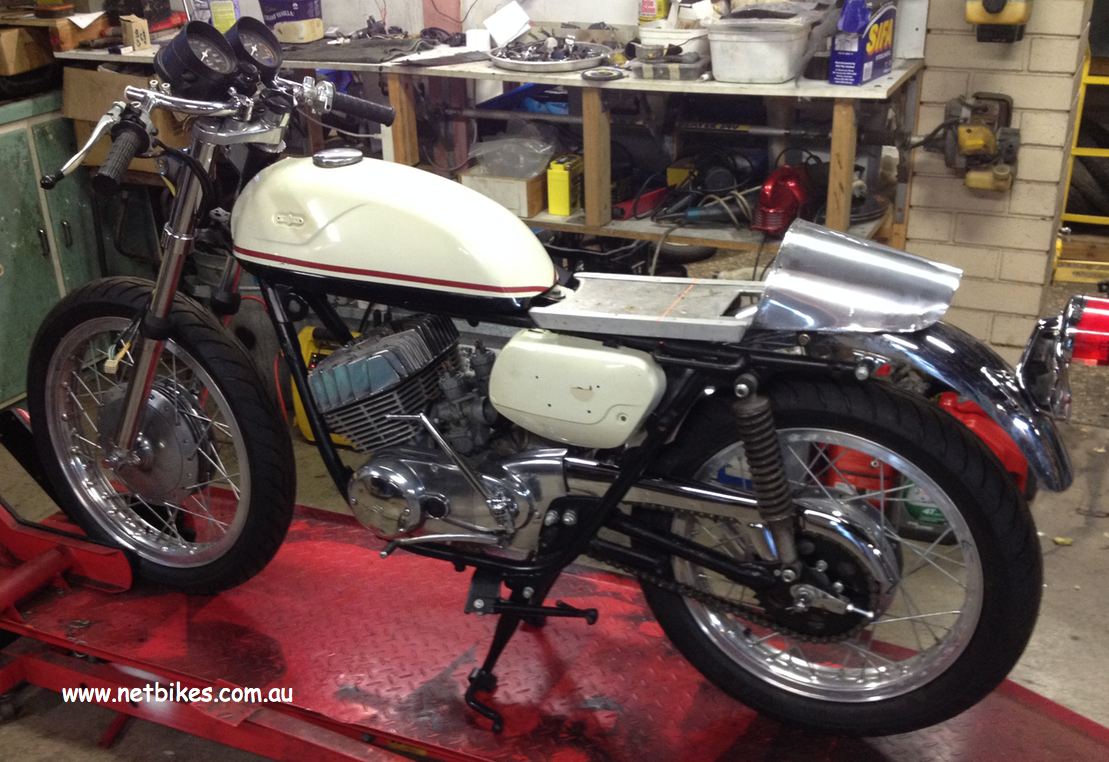

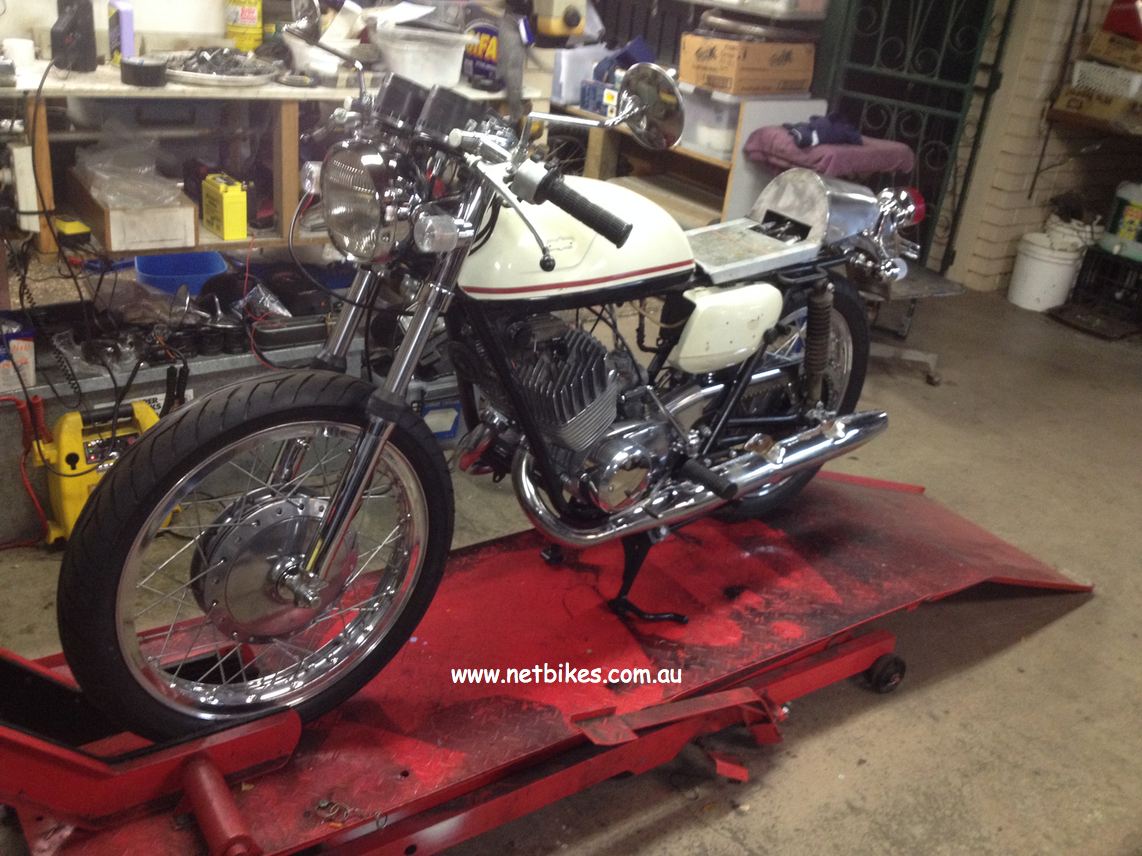

Above picture a little more that half way finished.

Suzuki T350

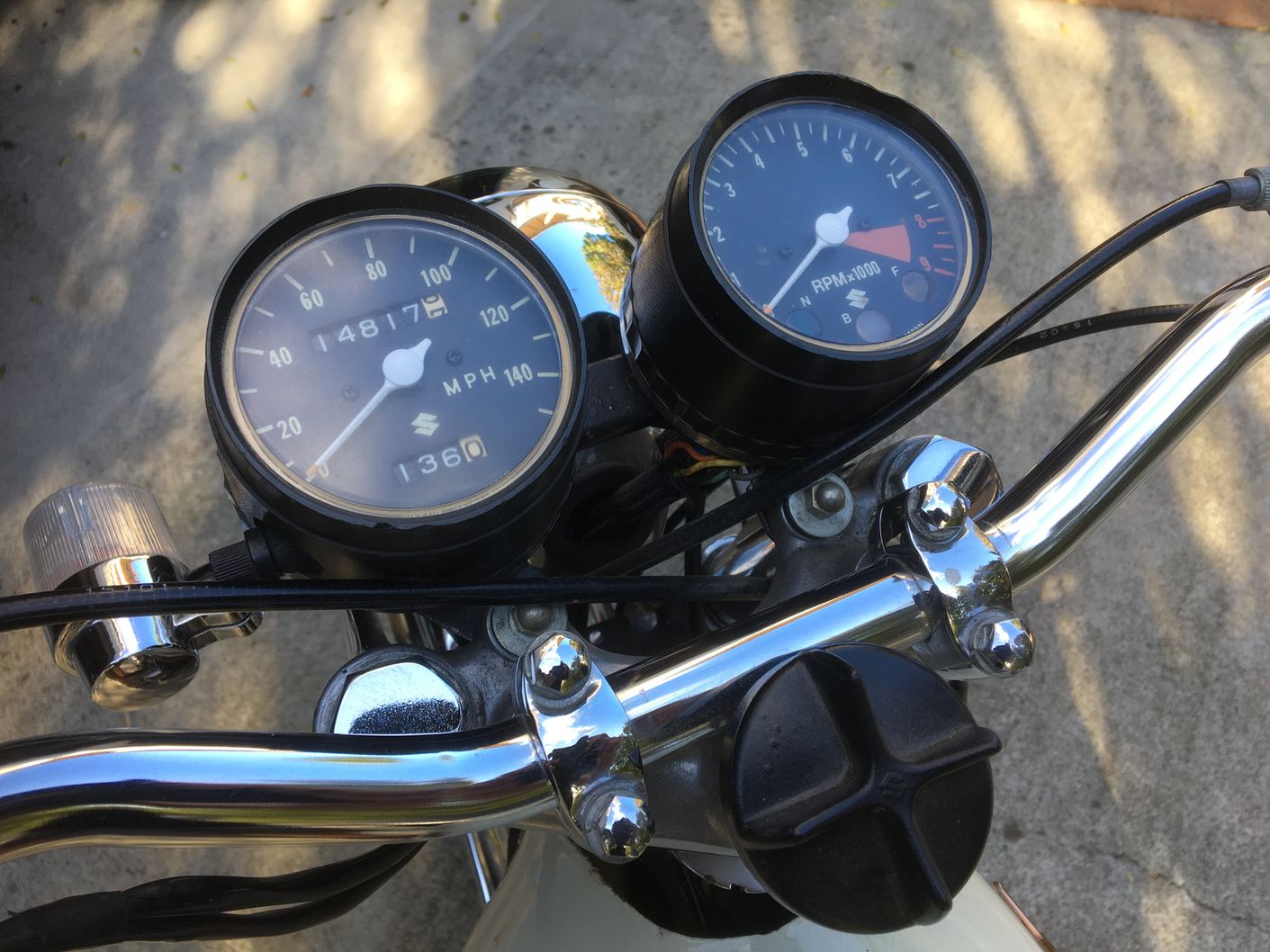

July 9, All electrics fitted and working. I ended up using another set of instruments,
the GT250 set were too wide and allowed no movement for the adjustable bars to be adjusted.

Suzuki T350

This bike is now completed and it for sale, $5500.00 ONO. My email and phone contact are at the bottom of this page.

CLICK HERE FOR SALE PAGE

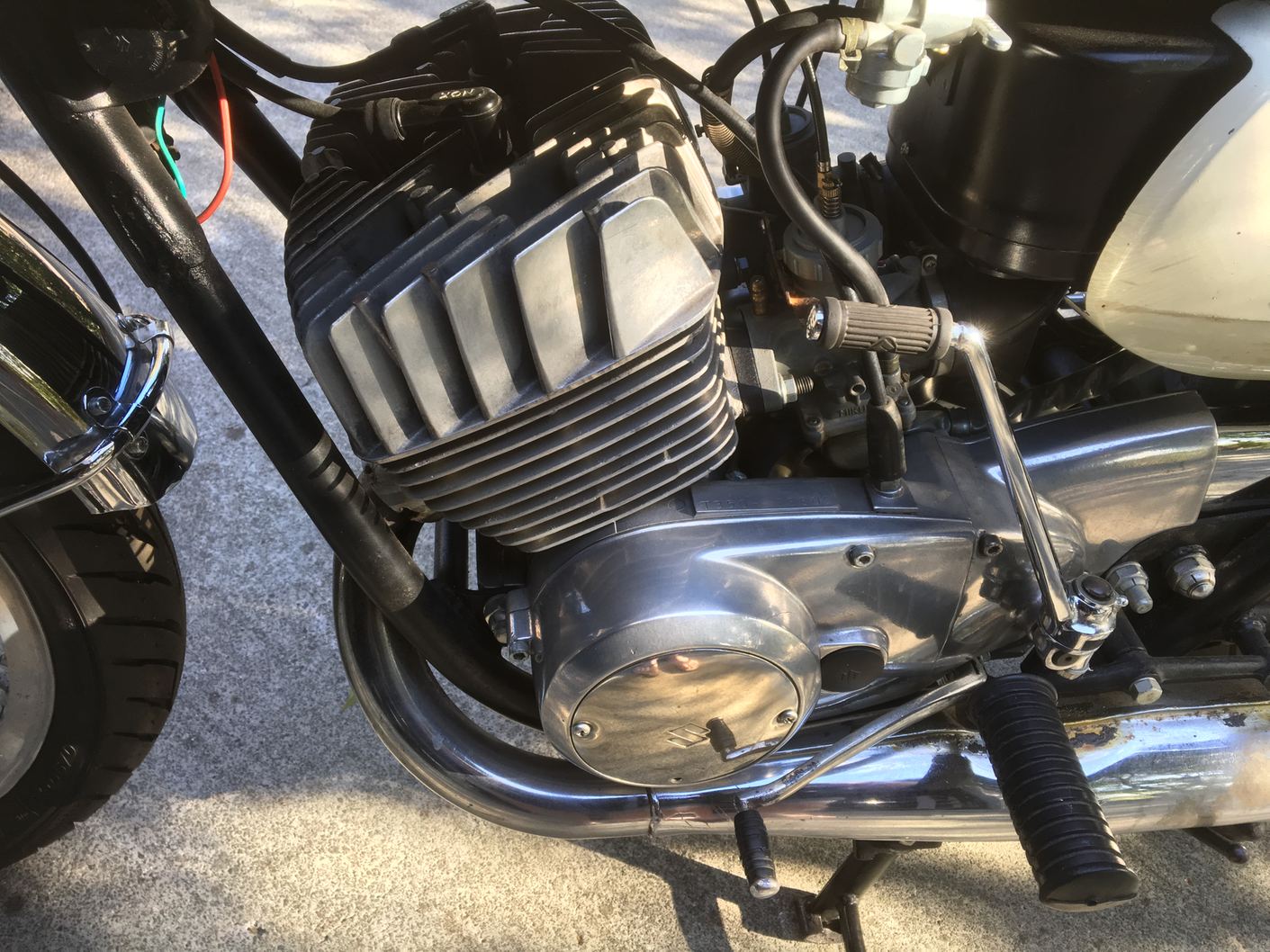

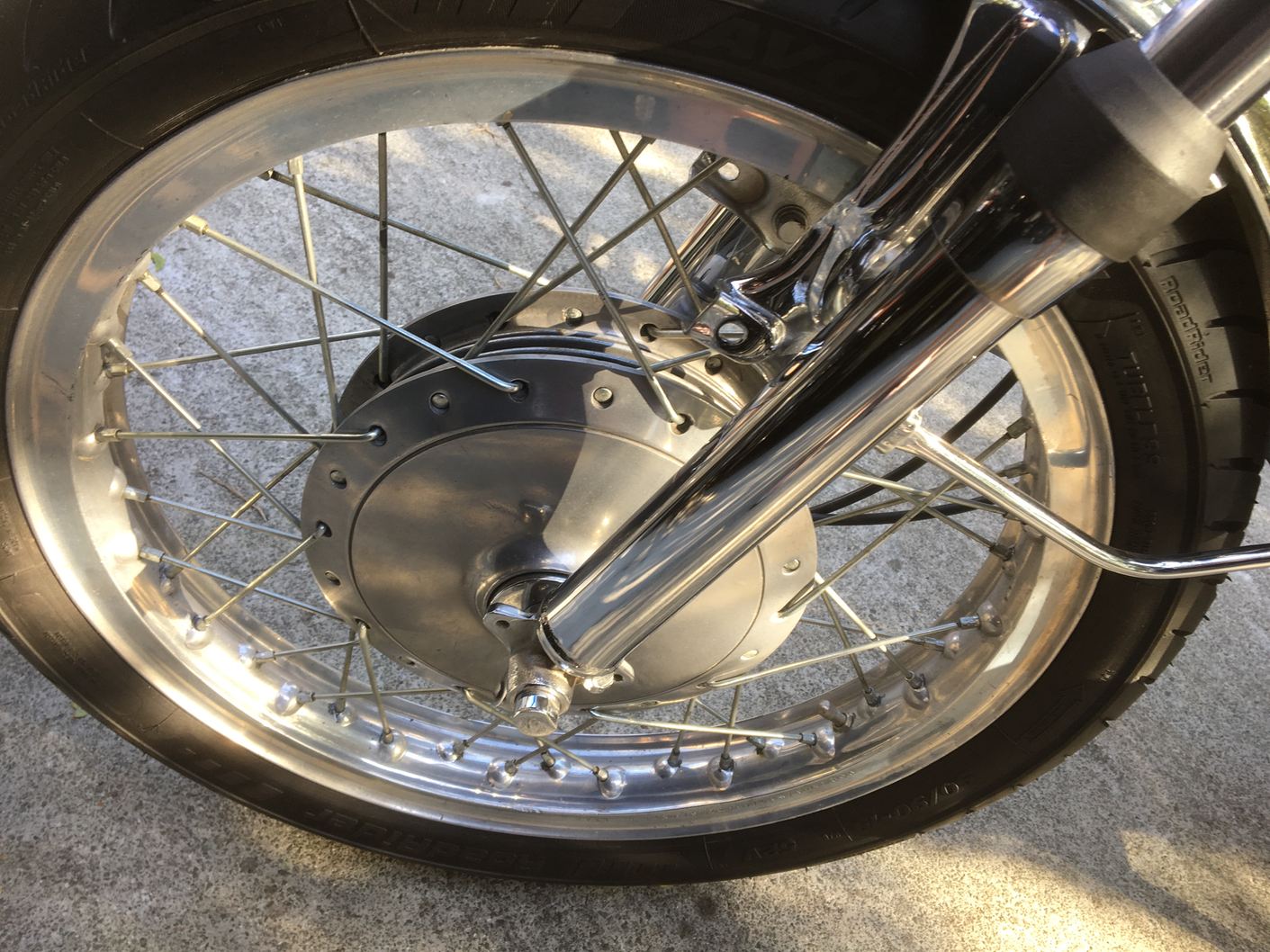

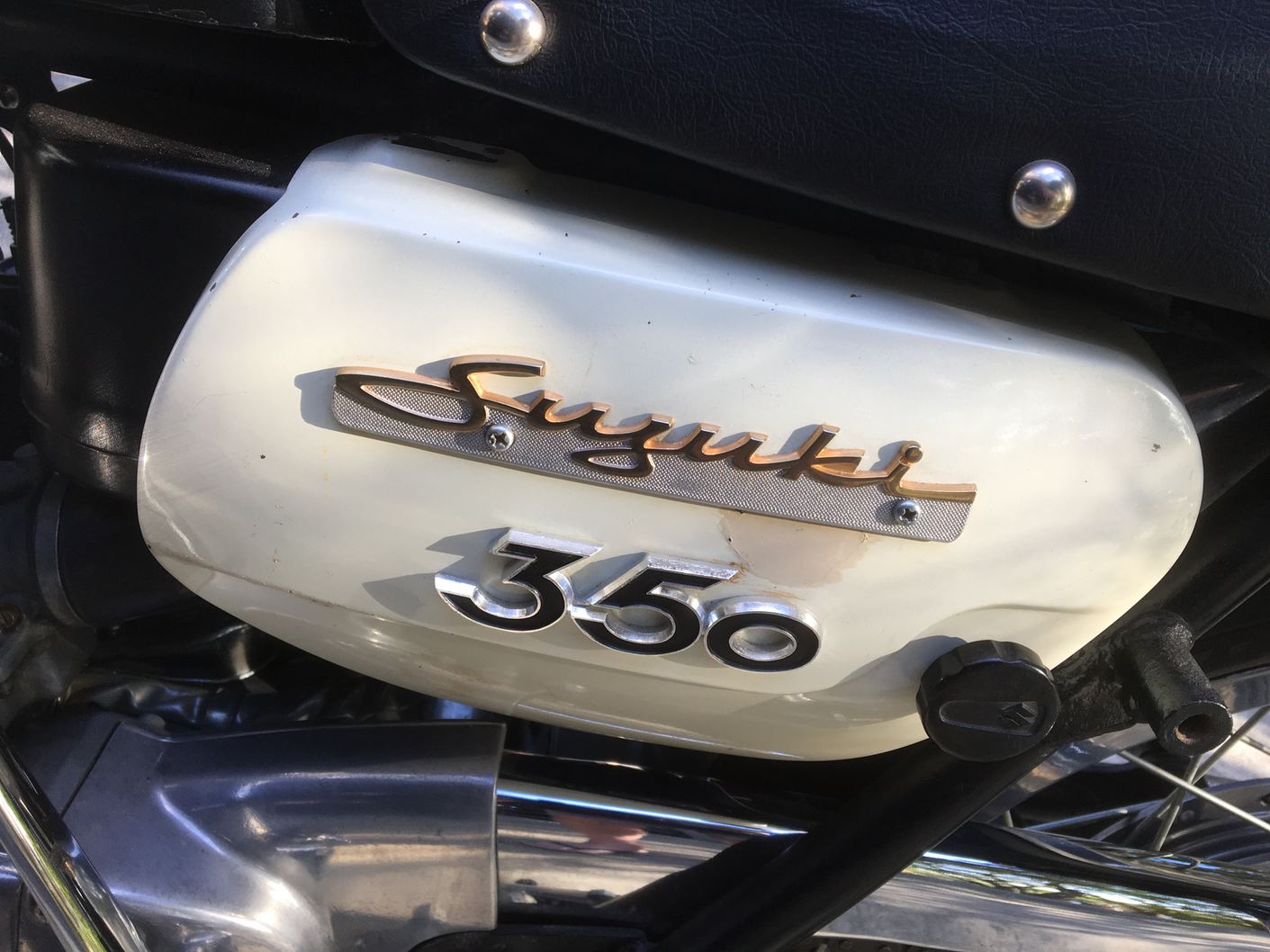

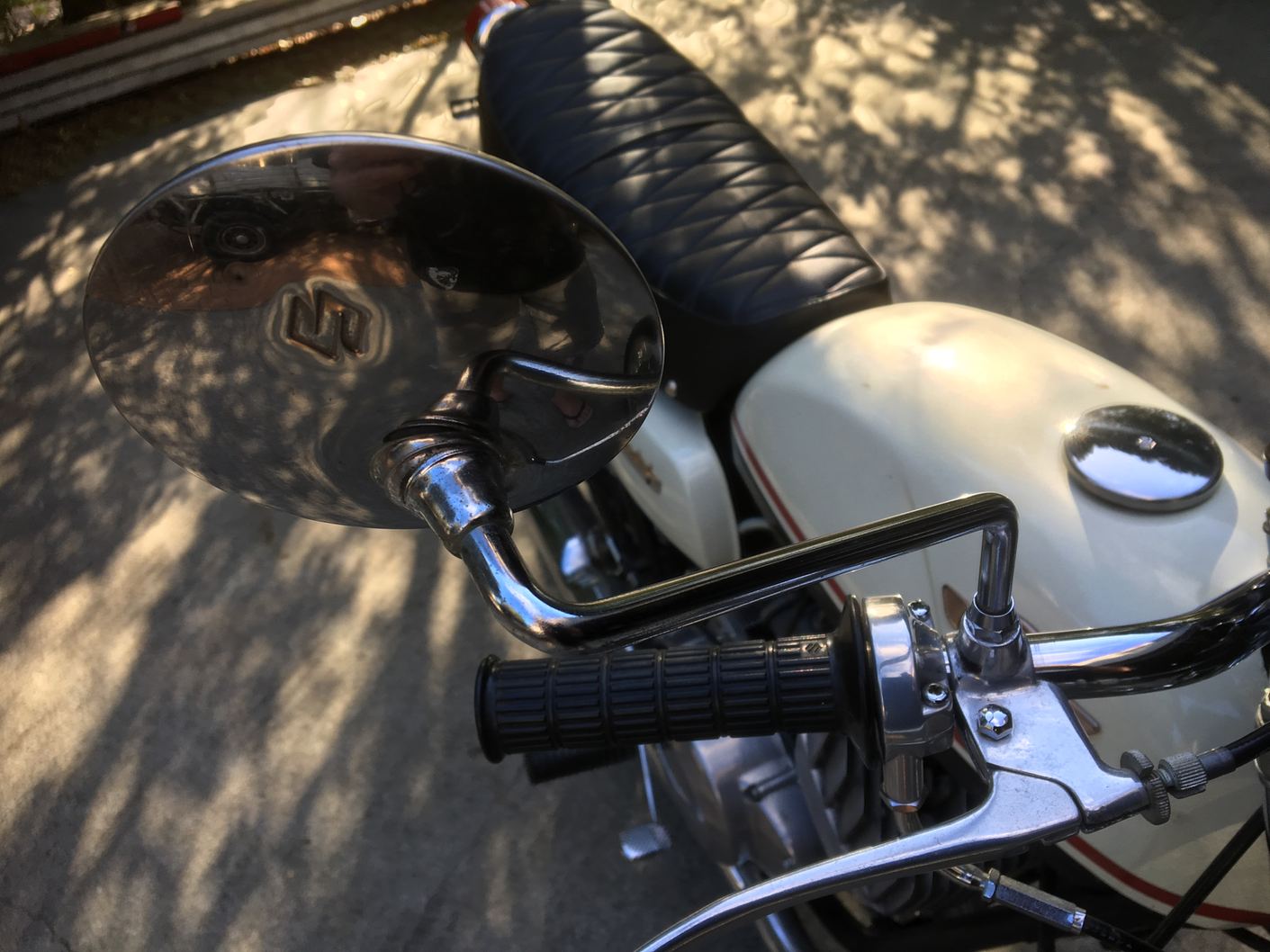

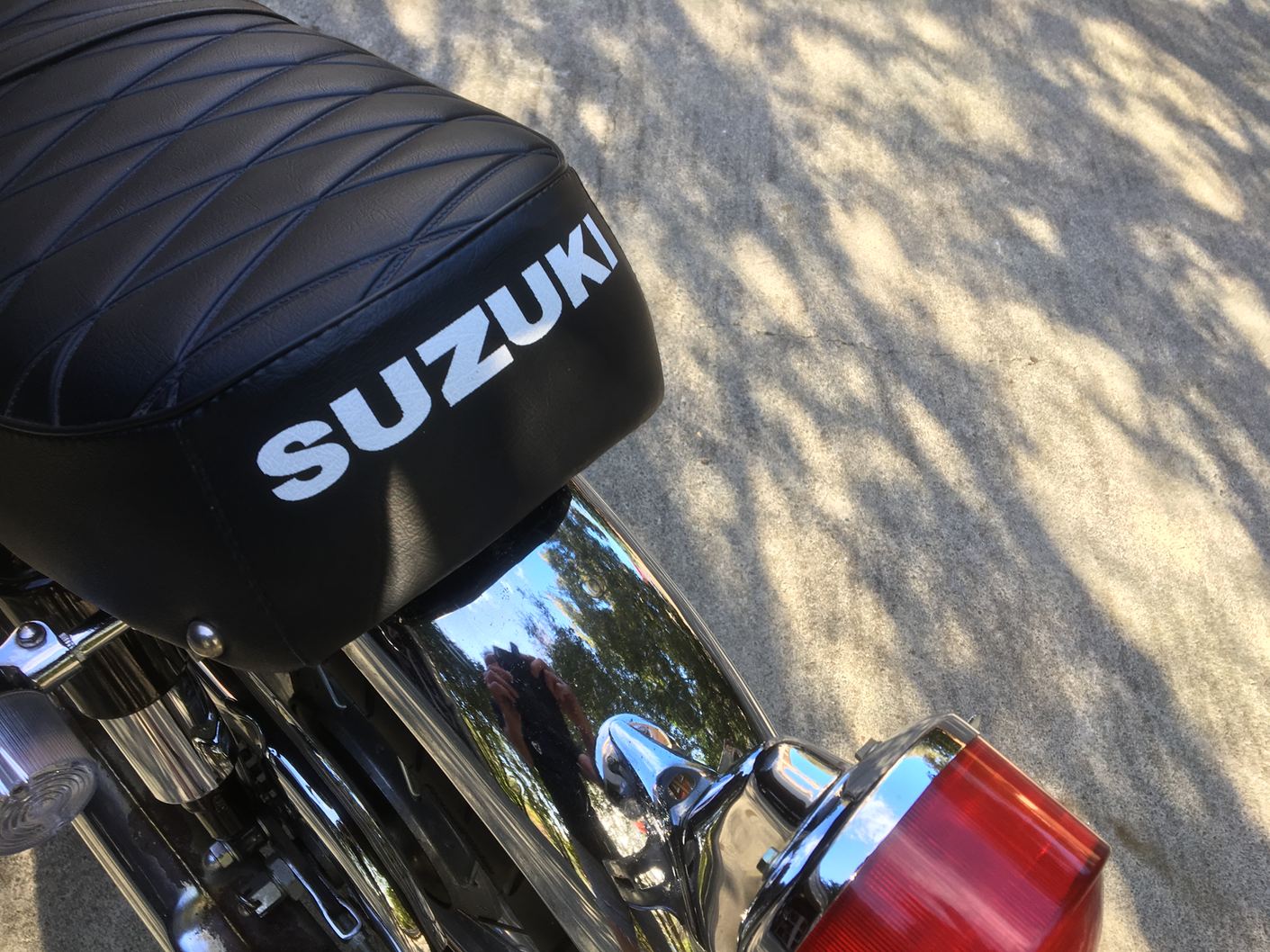

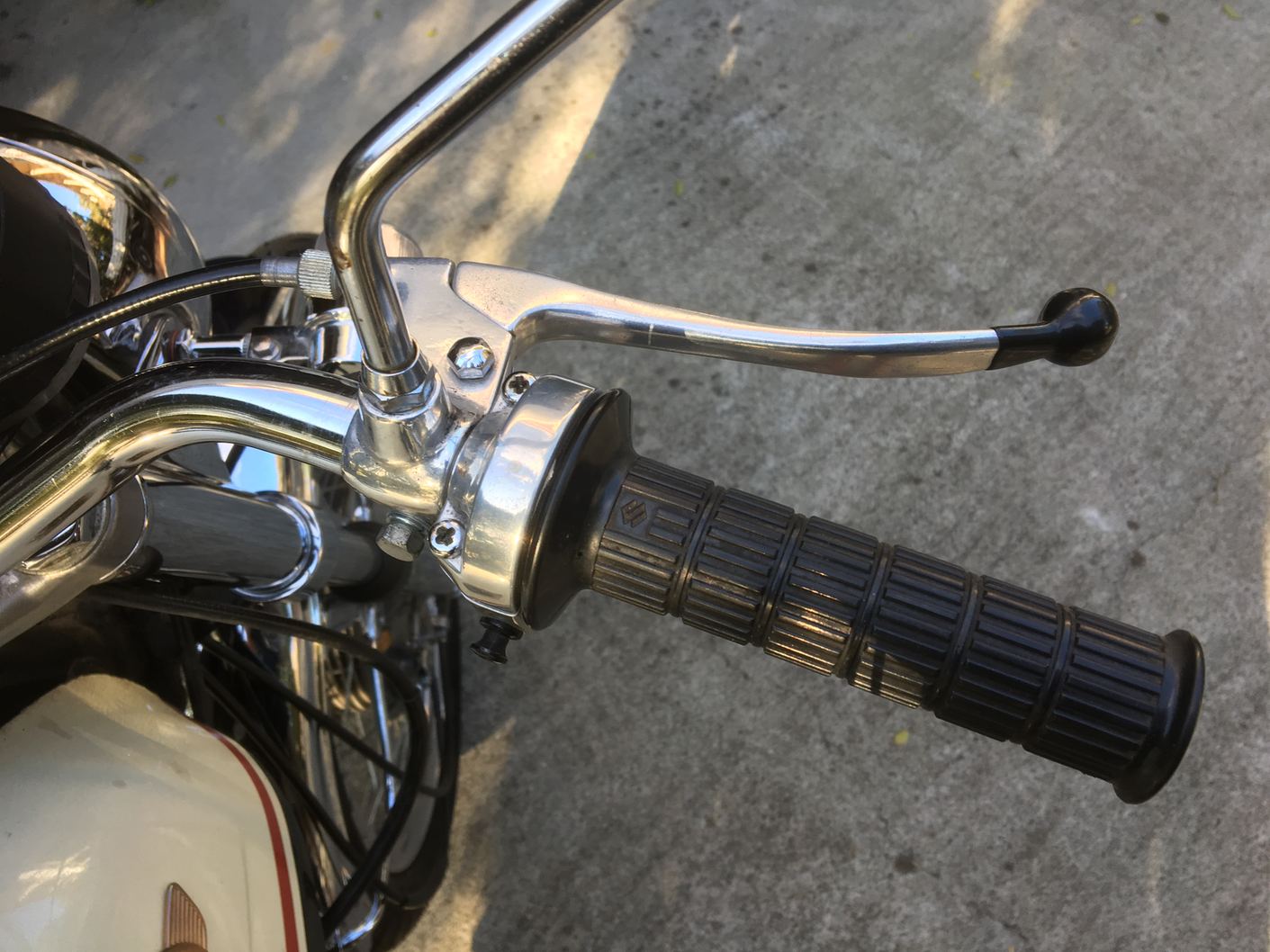

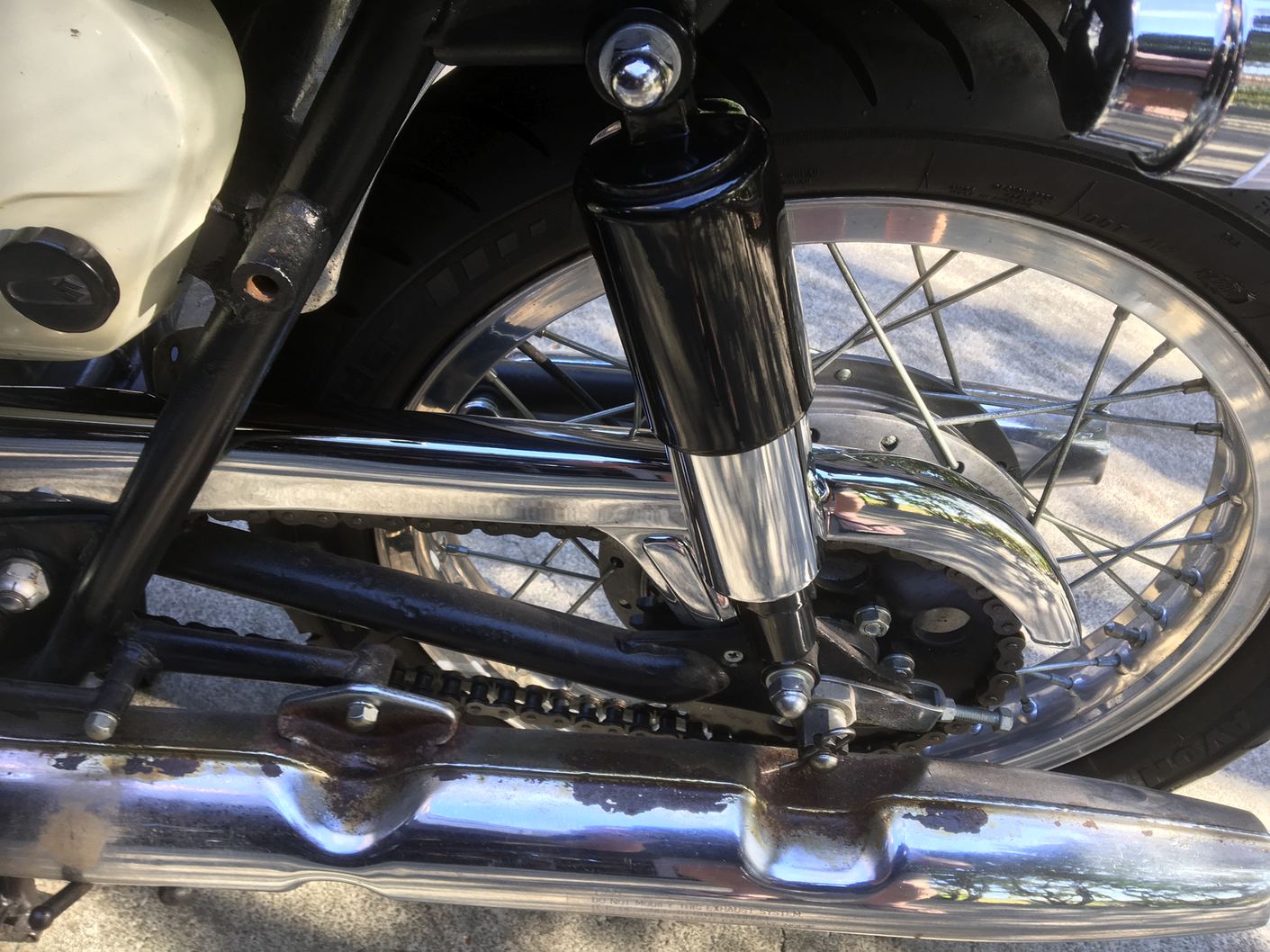

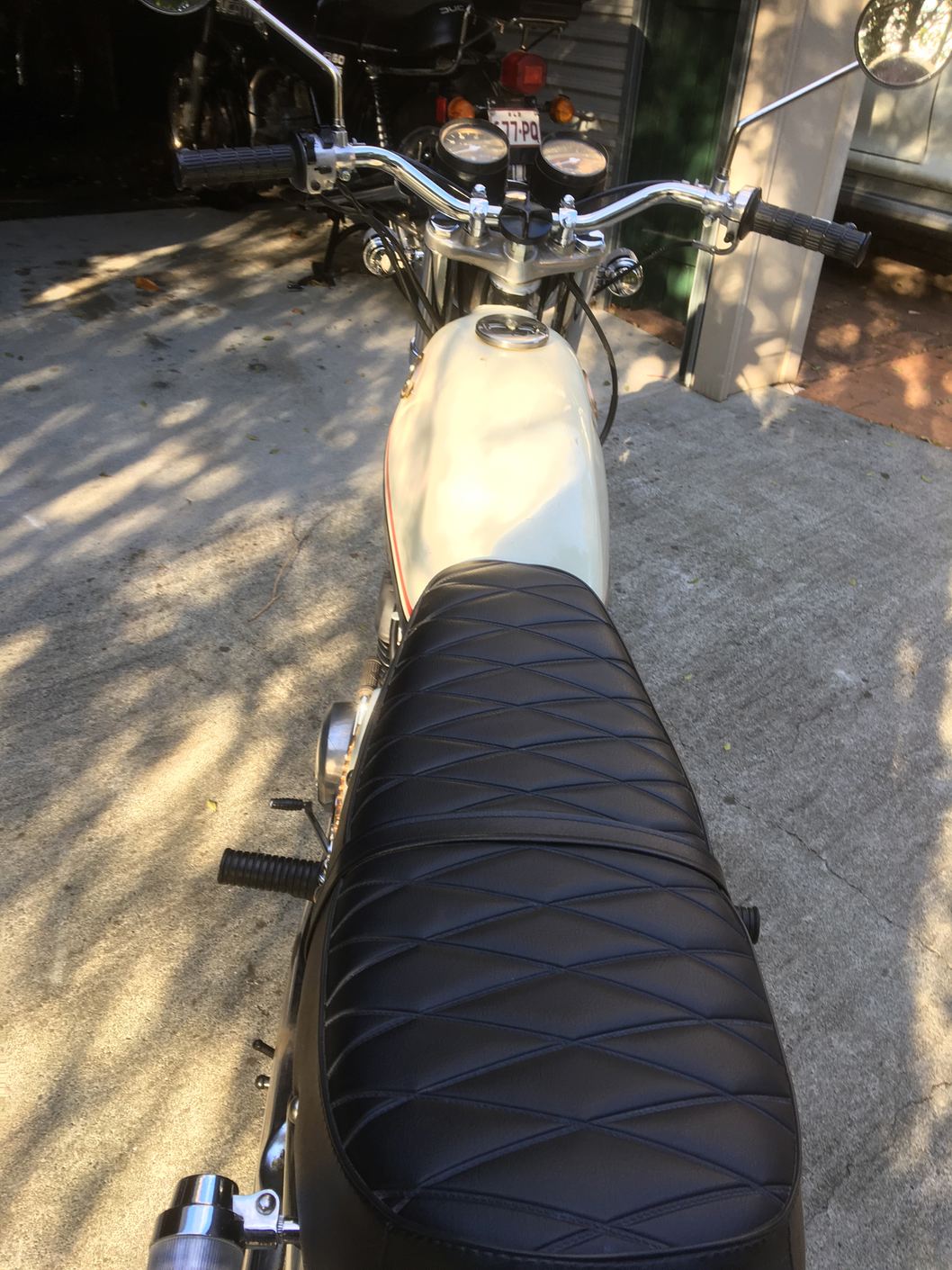

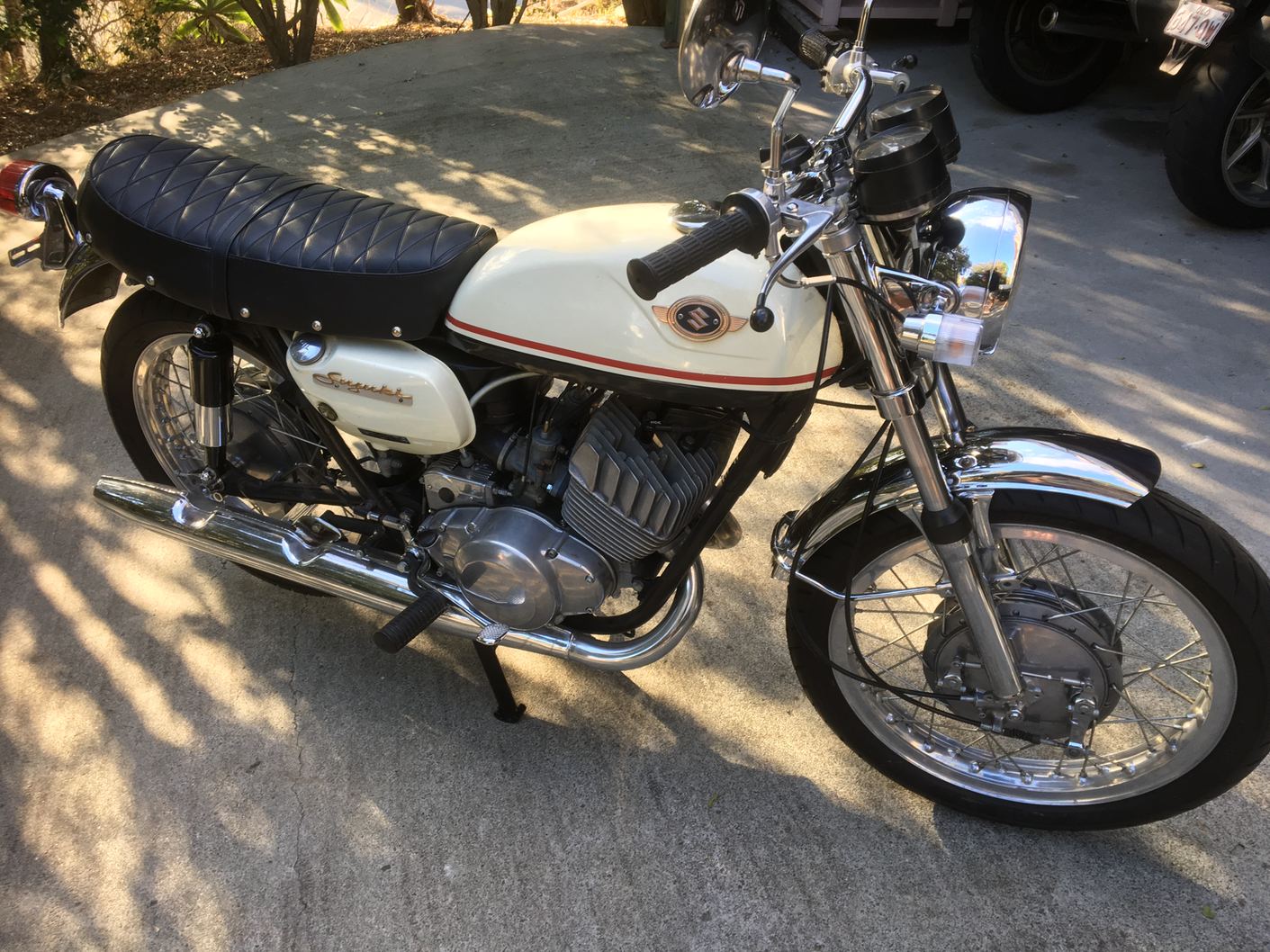

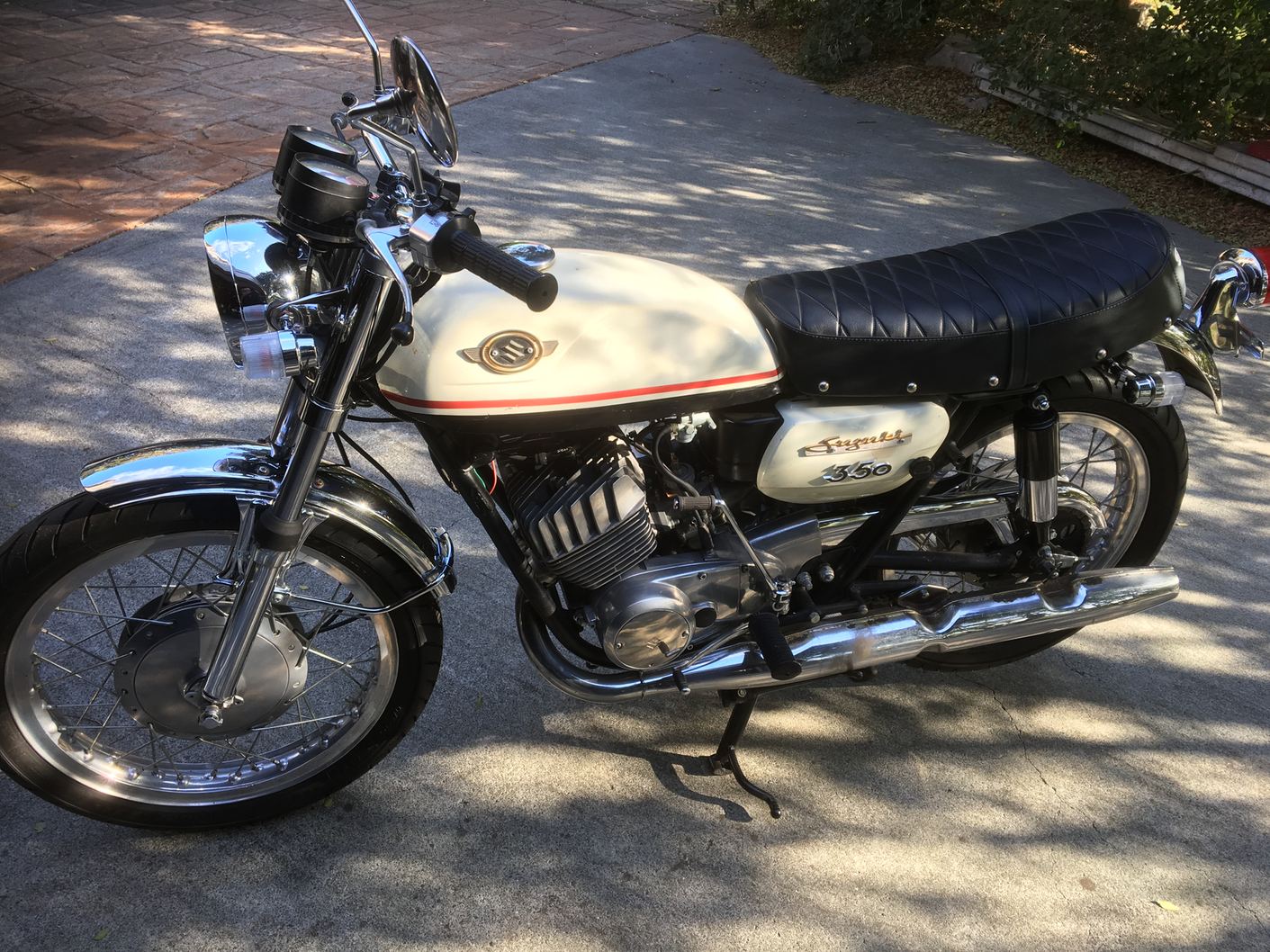

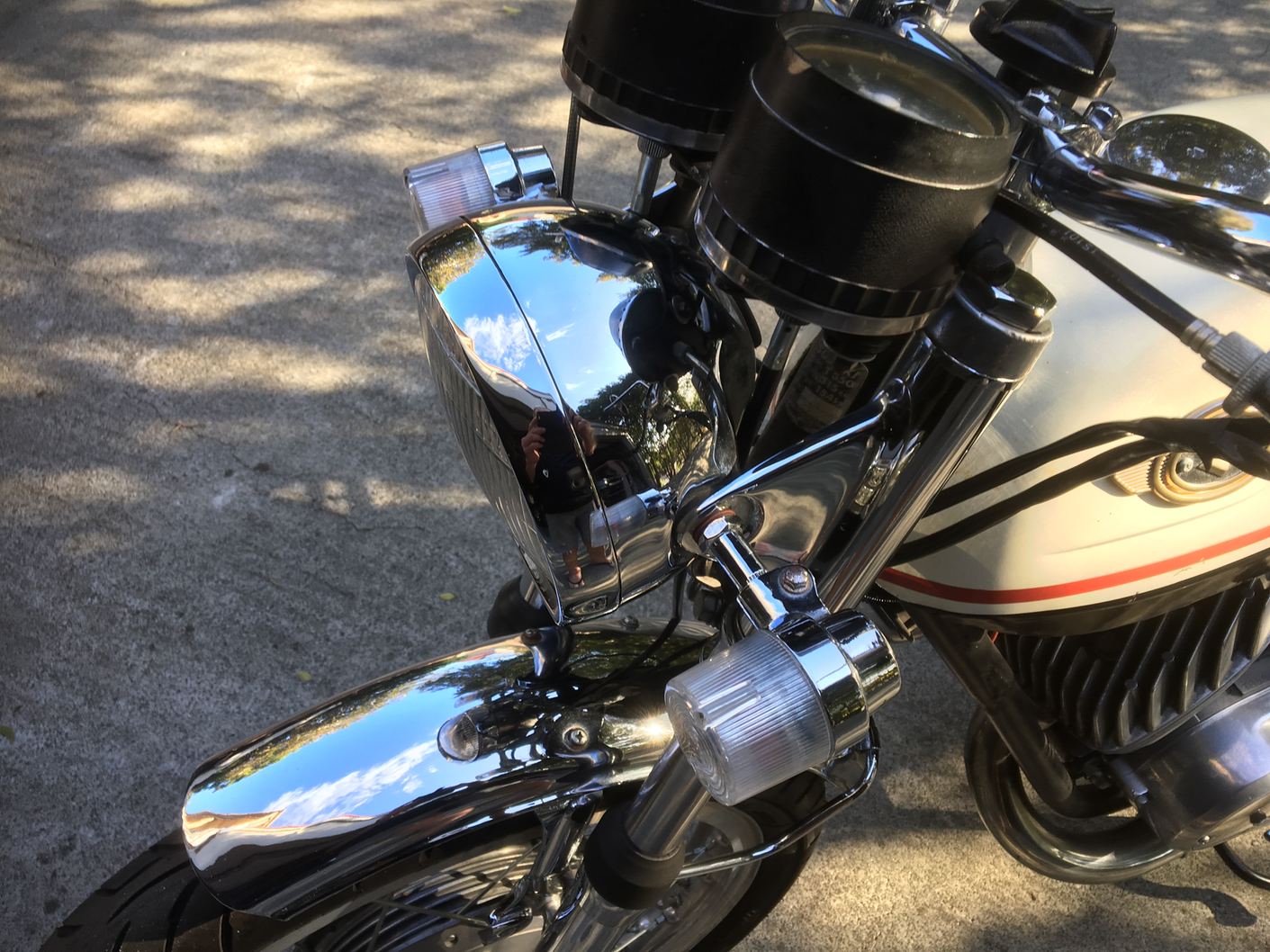

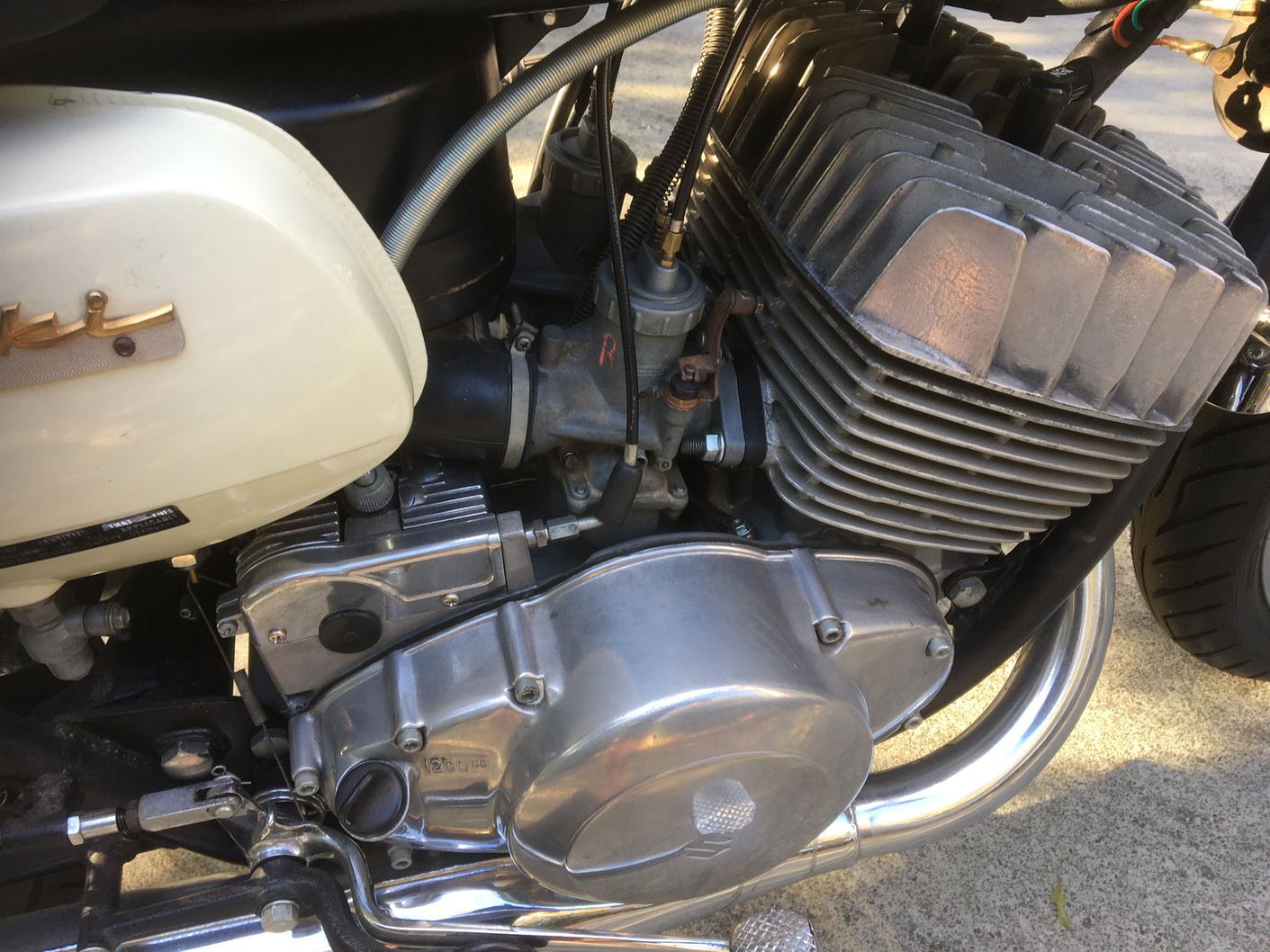

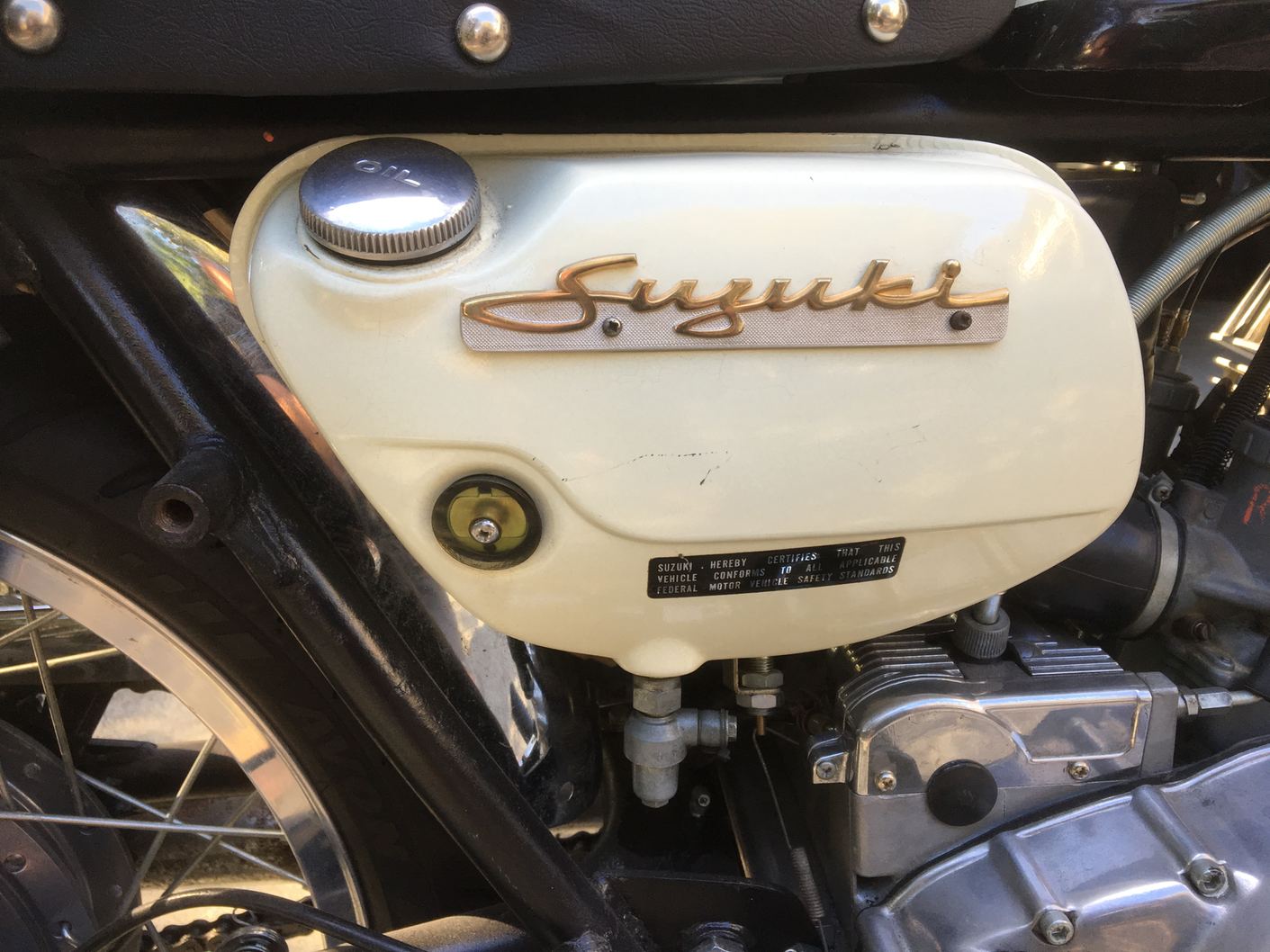

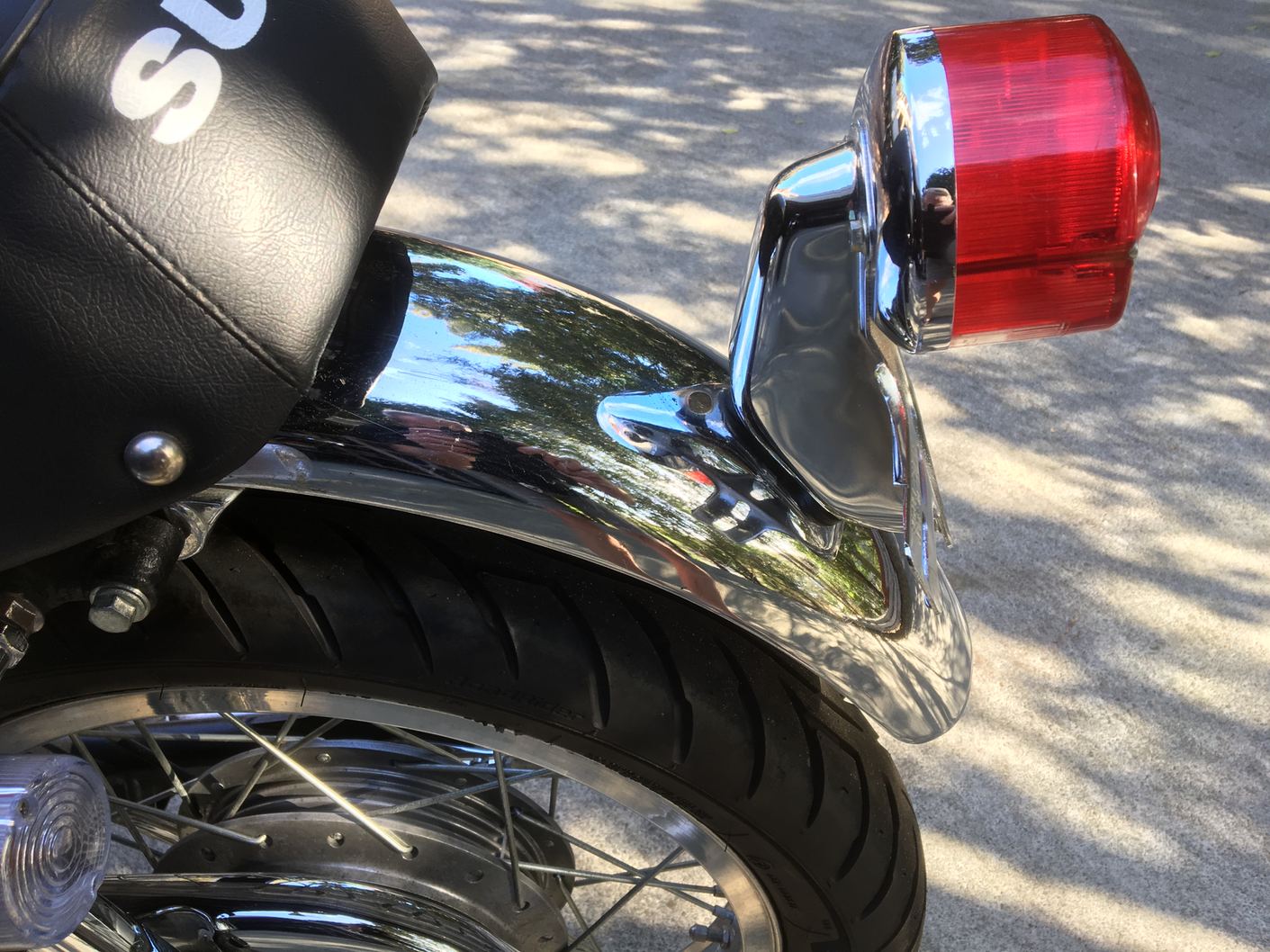

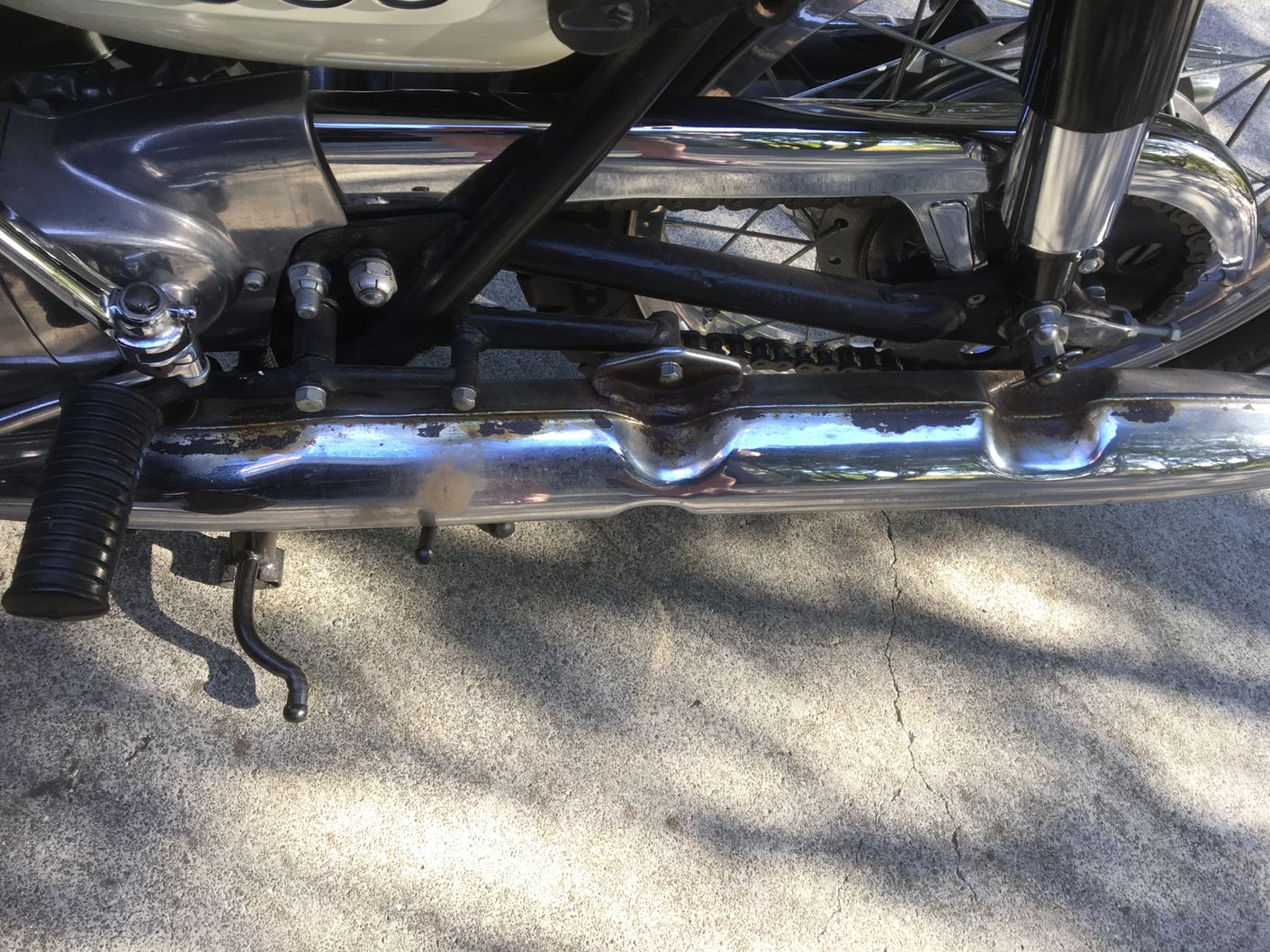

Finished pictures below, as you can see I have gone for the more standard riding position, I guess age does that to you :-)

suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

Suzuki T350

If you need work done on your classic machine, from basic service to full rebuilds, contact me, I can help.
