The GT
1974 250L

Suzuki GT250L

This bike completed and for sale now, sale details below build information. (NOW SOLD)

June 8-2018

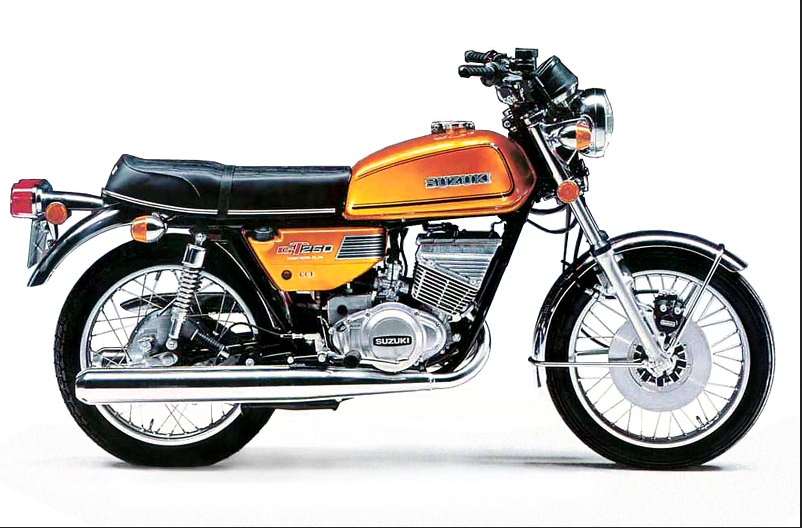

Well yes, it would be nice, but no, the one I am building will not be as nice as the one in the pic above. You see when this bike is complete it will be for sale so in the interests of keeping the price down for both myself and the buyer I have opted out of rechroming except for a few small bits n bolts. In favour I will rebuild the motor from ground up, do all the painting of body work, new seat and so on.

To follow this page I recommend you friend me on Facebook, I will update there regularly. My Facebook Page. My email address is also at the bottom of this page so if you have a purchase interest you may contact me that way.

In house inspection is available anytime through the build progress too.

I will just drop pictures of progress as I go along, this first slab will highlight a few of the new bits going into the build and some prelim work already done.

This page will become image heavy after a time so you may want to make coffee while page loads :)

Some images may seem unnecessary or almost doubles, this is just to show potencial buyers as many angles or individual parts as possible, and their condition.

GT250 suzuki

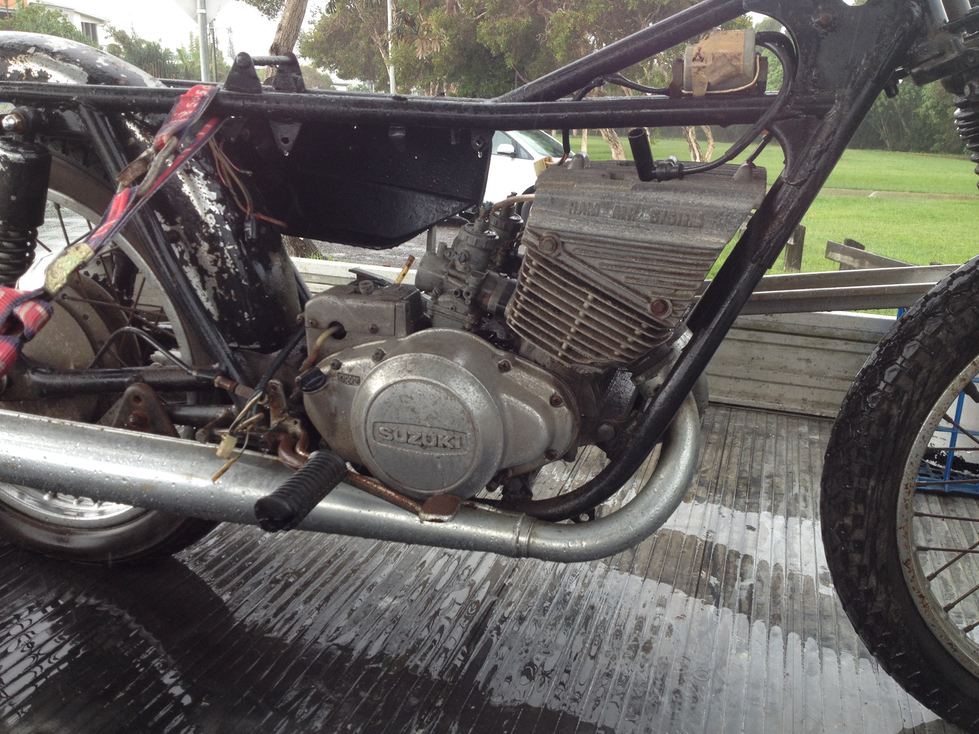

This is how I received the bike, that's it, there were no other parts, I am lucky to have a number of spare parts here for it. Note the bent/broken fins on the right barrel, this barrel will not be used.

GT250

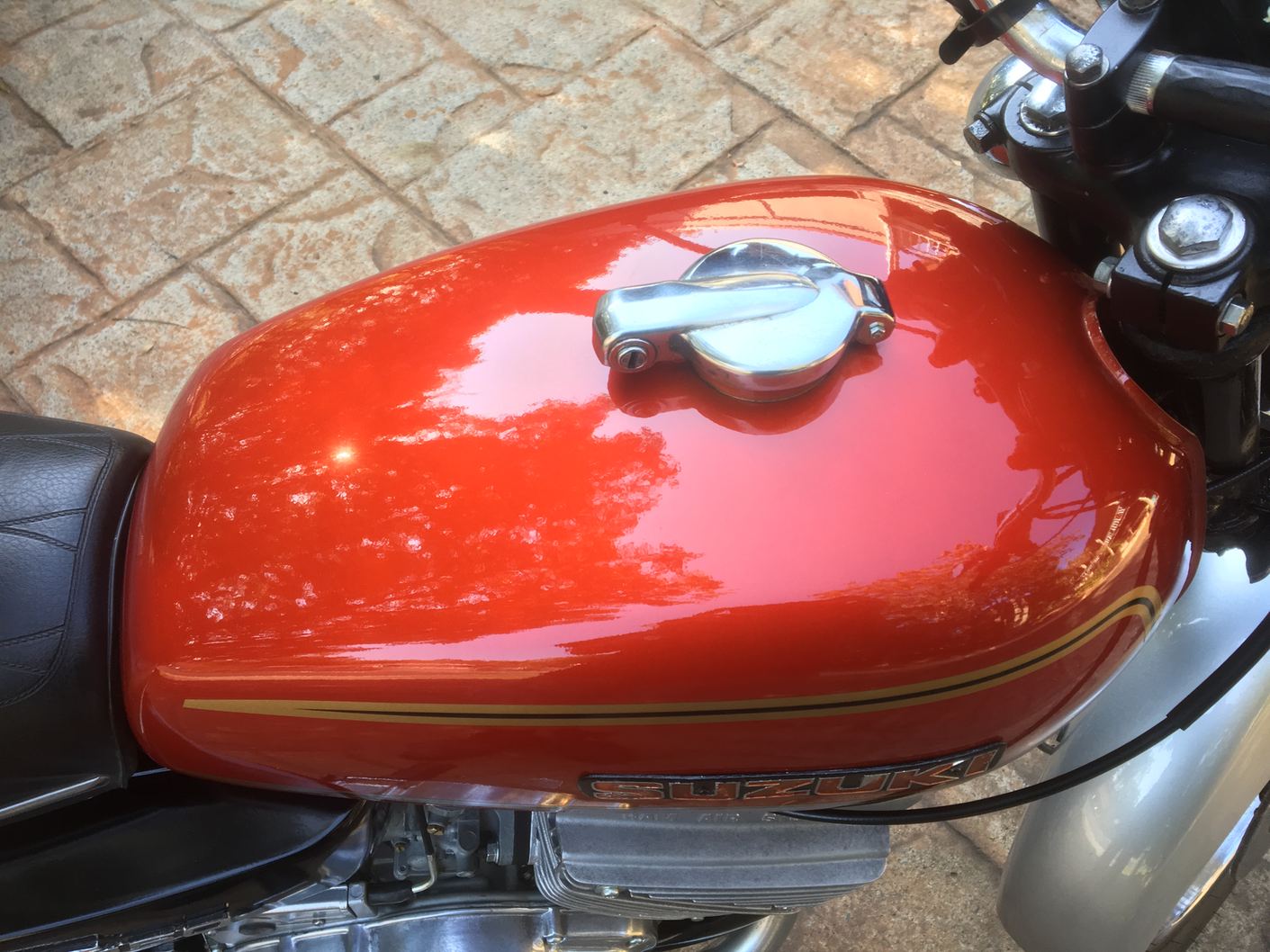

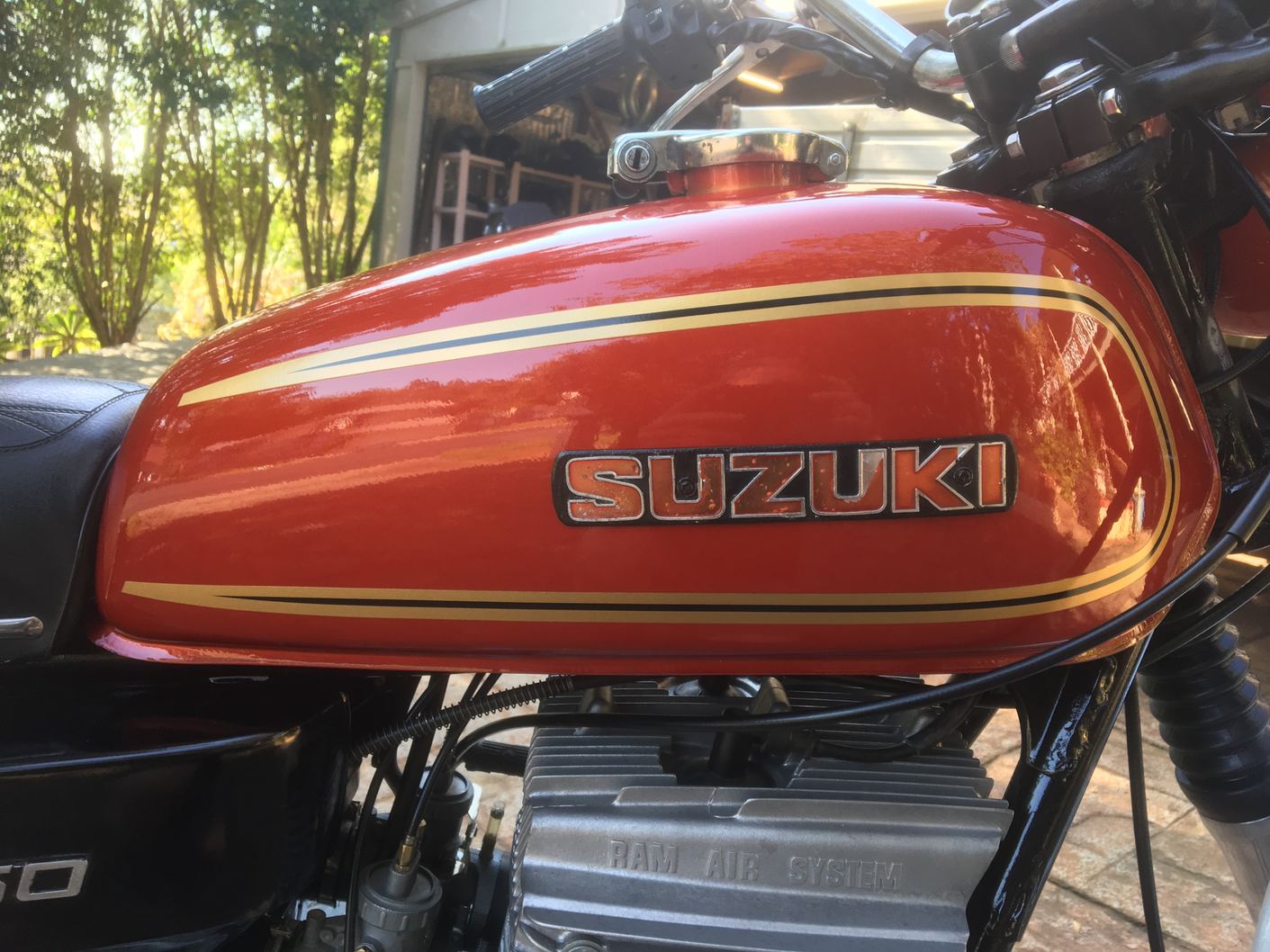

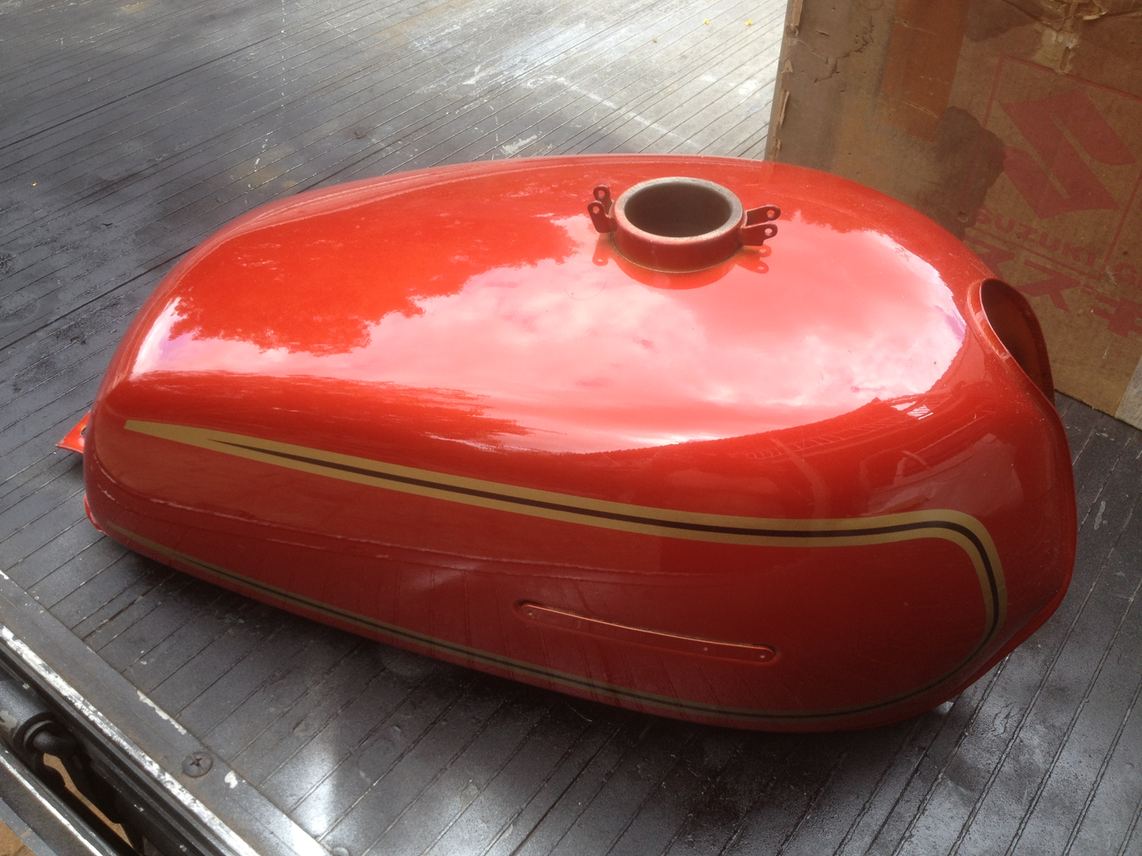

This is the tank I will use, it is NOS in perfect condition. Now you're getting excited hey :)

GT250

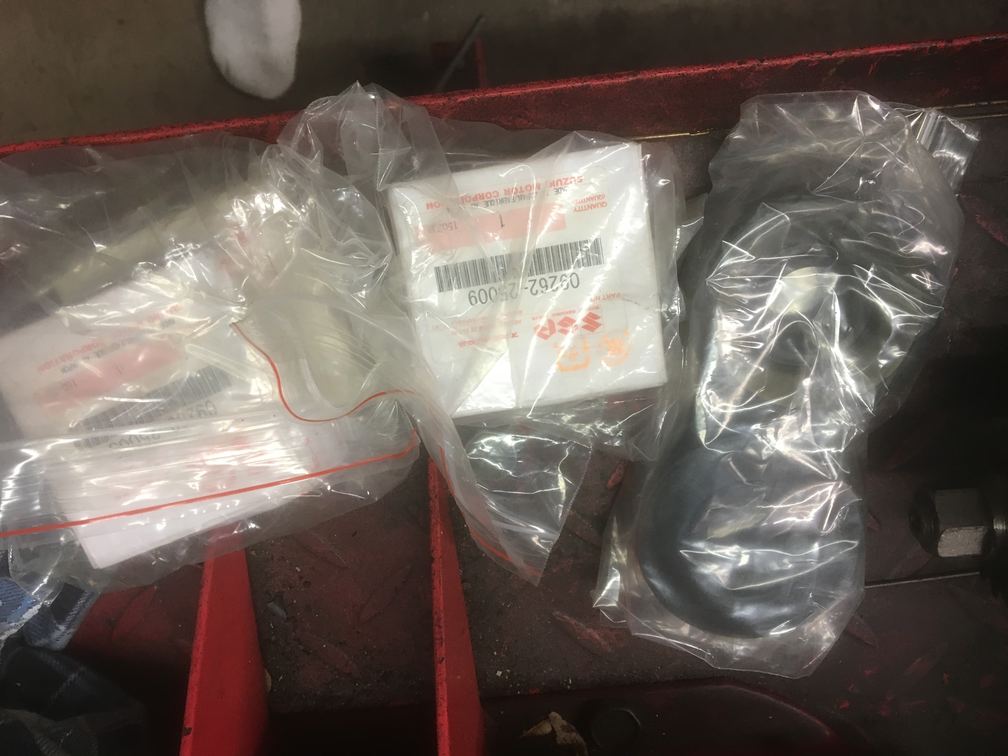

New crank bearings and seals.

GT250 suzuki

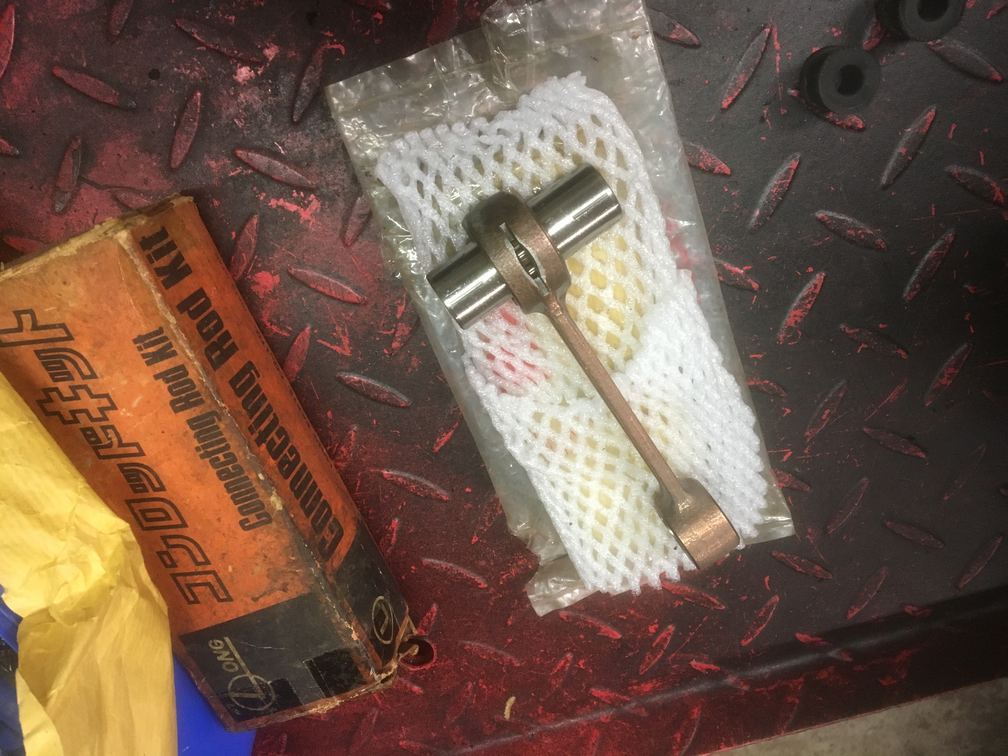

New rod kits

GT250 Suzuki

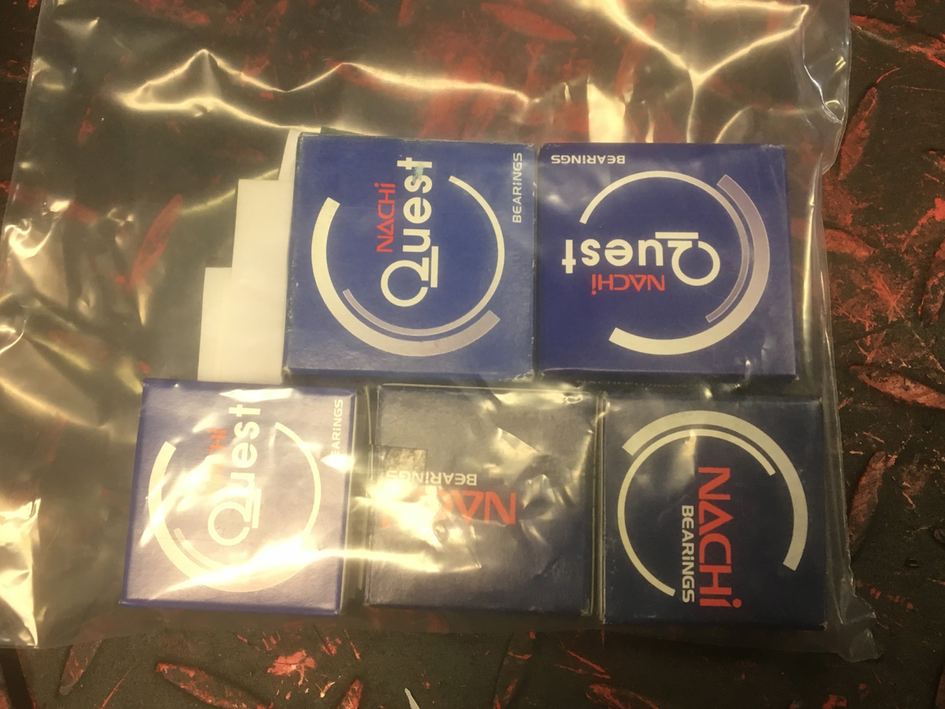

New wheel bearings and sprocket holder bearing, I also have new steering stem bearings.

suzuki GT250

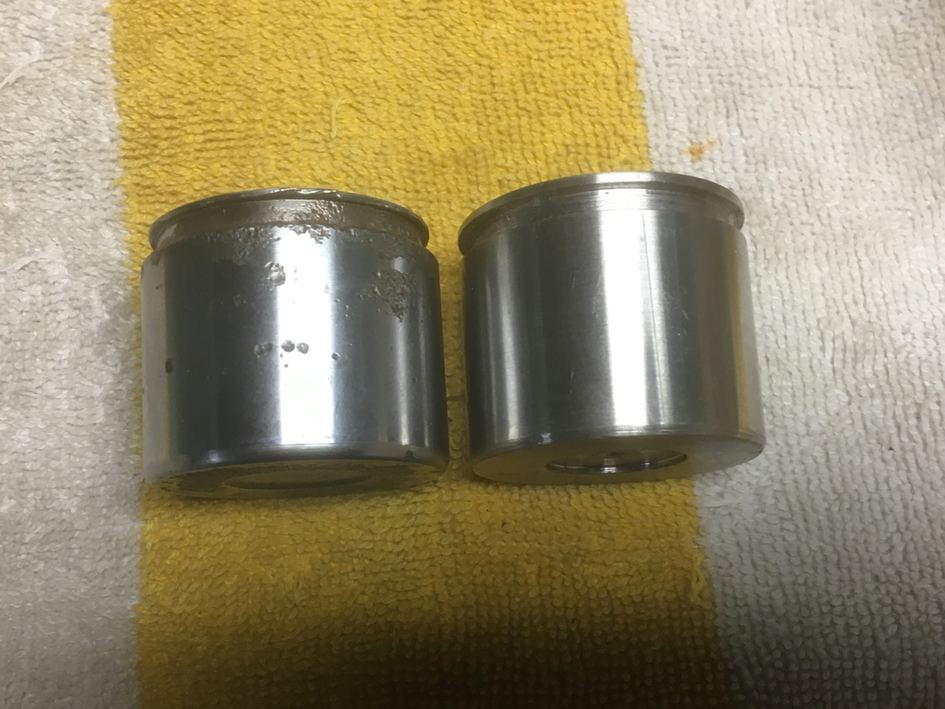

New brake caliper piston. Got a mate to machine this up for me.

suzuki GT250

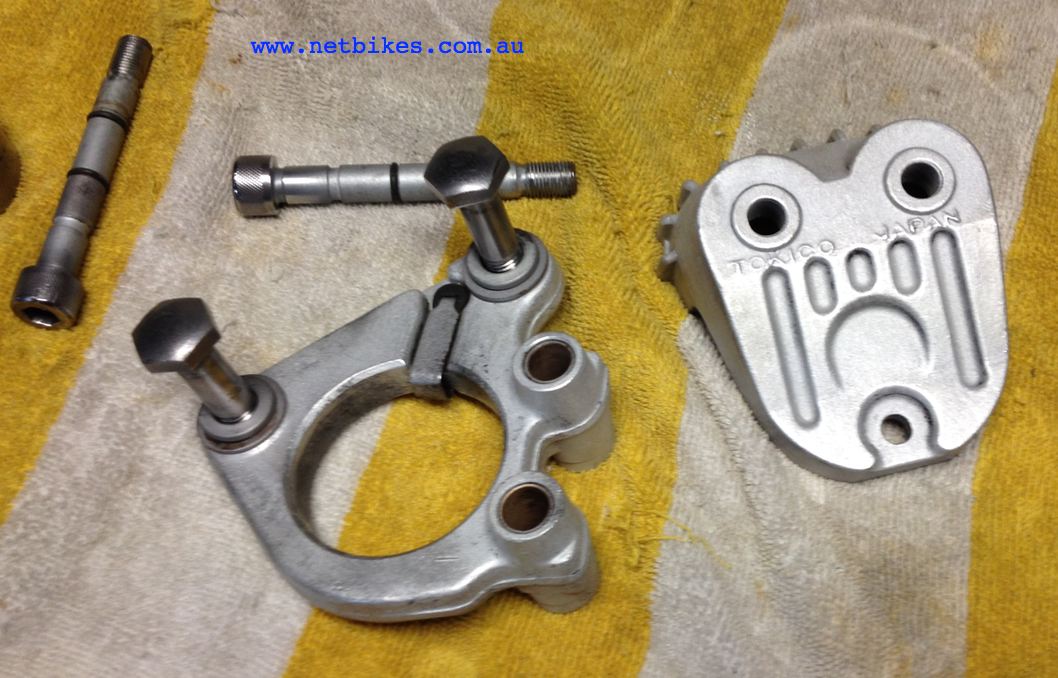

Calliper parts blasted and ready for paint.

suzuki GT250

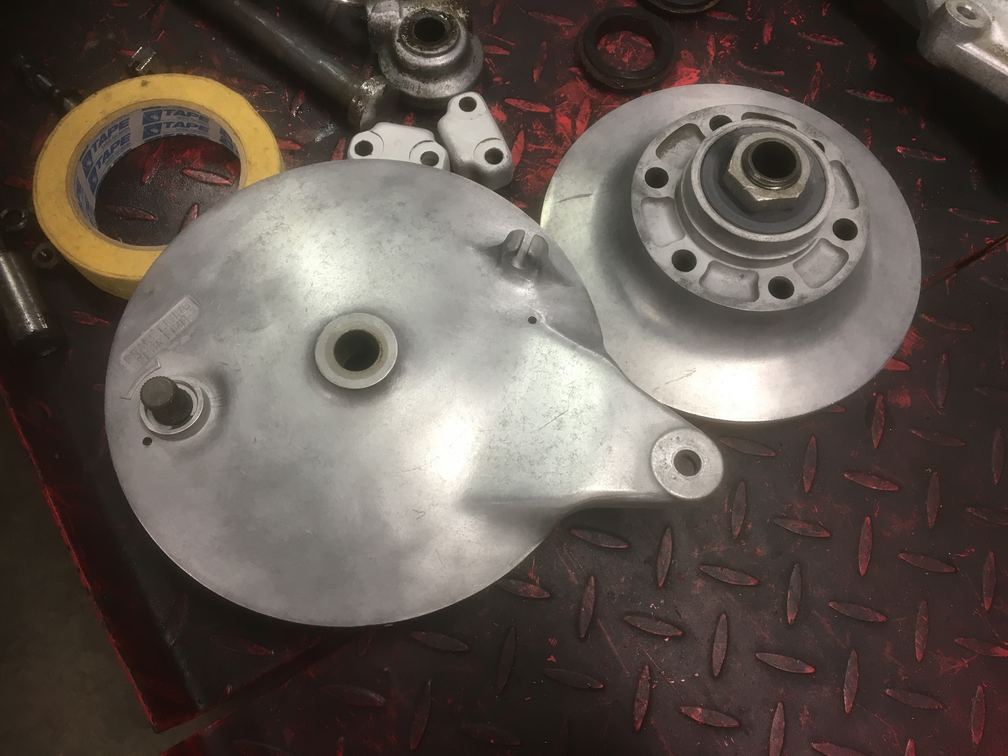

Sprocket holder and brake plate cleaned and ready to fit, no I won't be polishing them.

Suzuki GT250

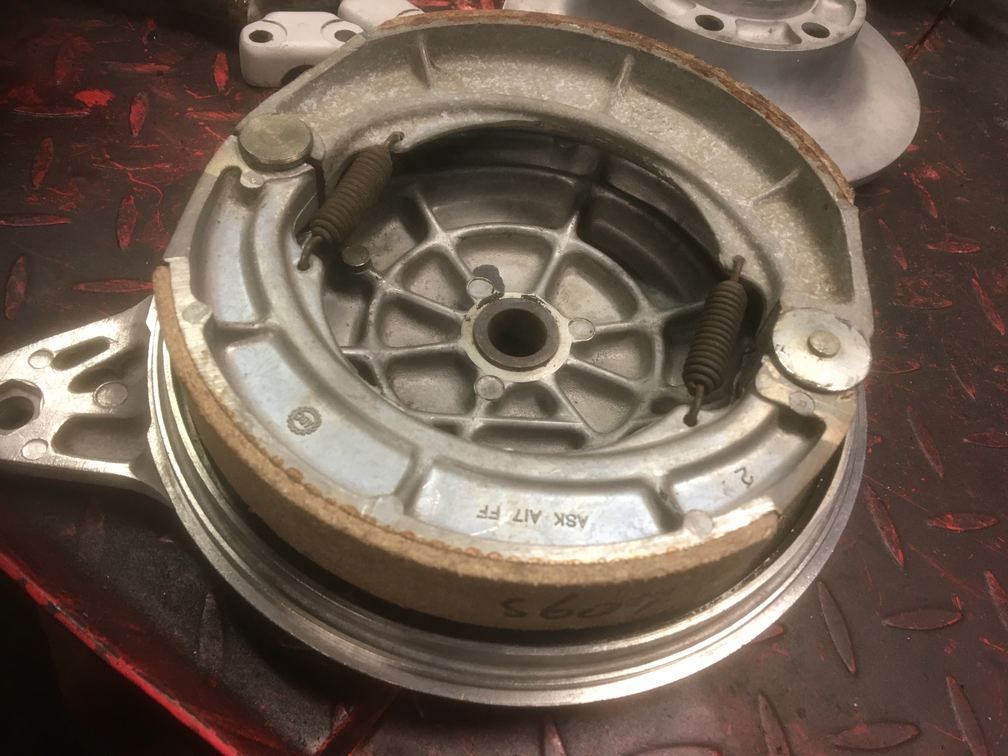

New rear brake shoes

suzuki GT250

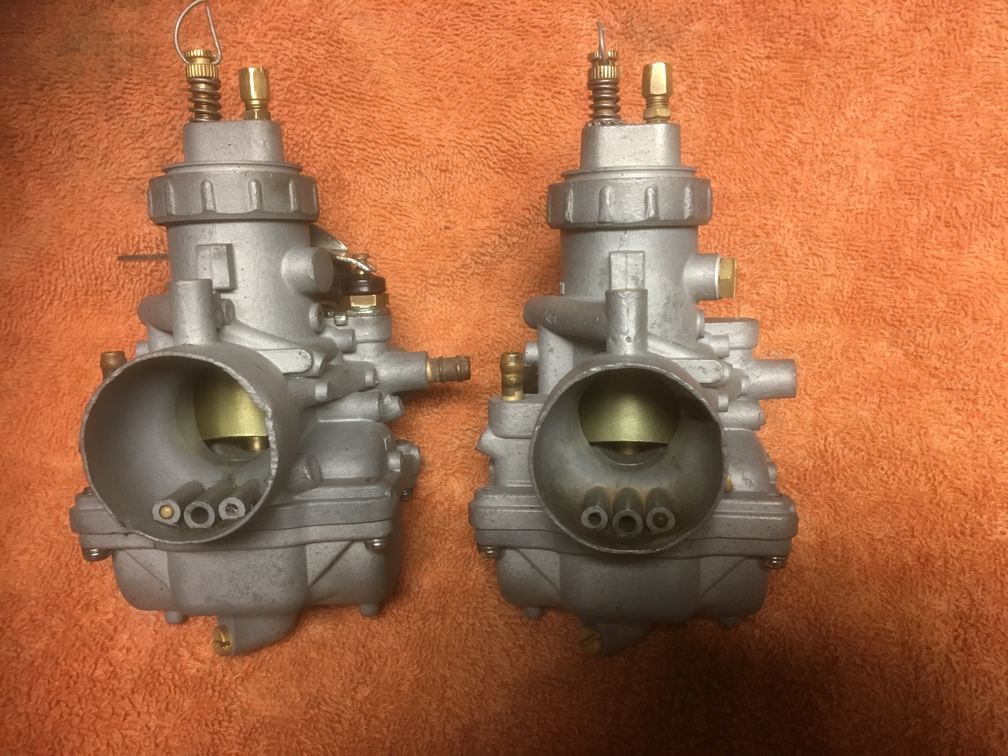

Carbies cleaned both internal and externally, bench tested for leaks, now ready to fit up.

suzuki gt250

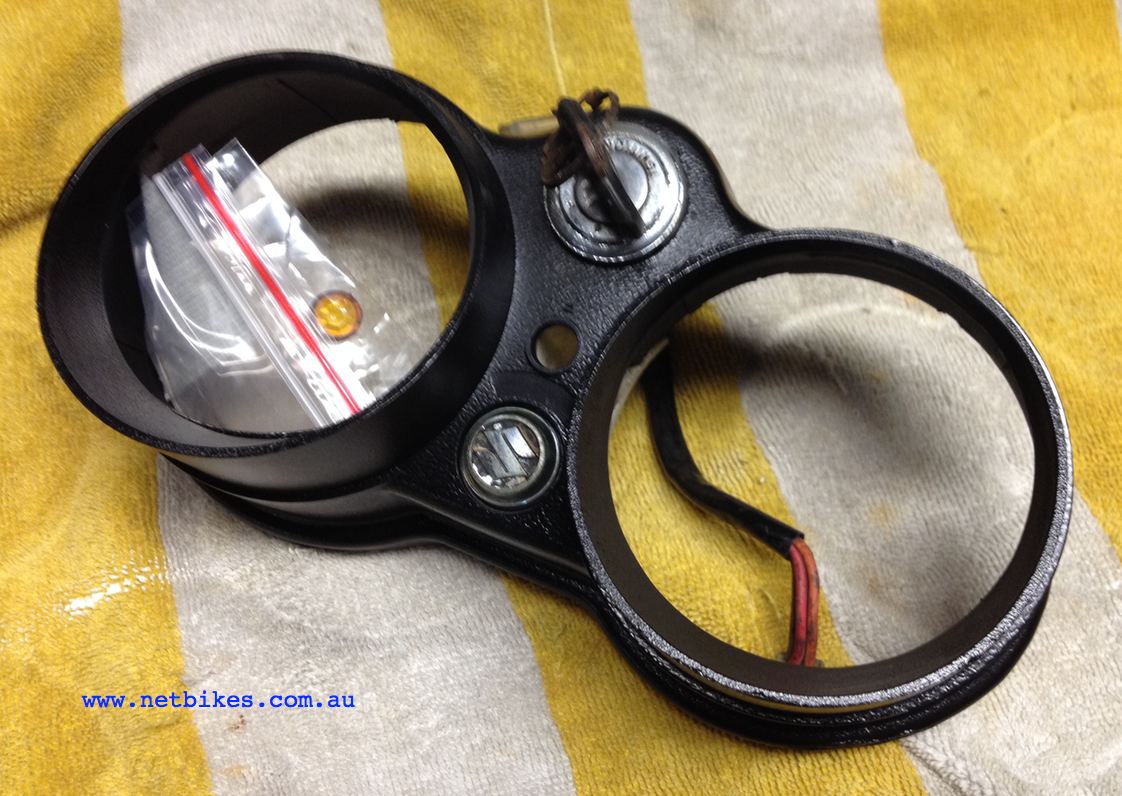

Instrument surround readied for fitting.

suzuki gt250

Ram air covers readied for fitting

suzuki gt250

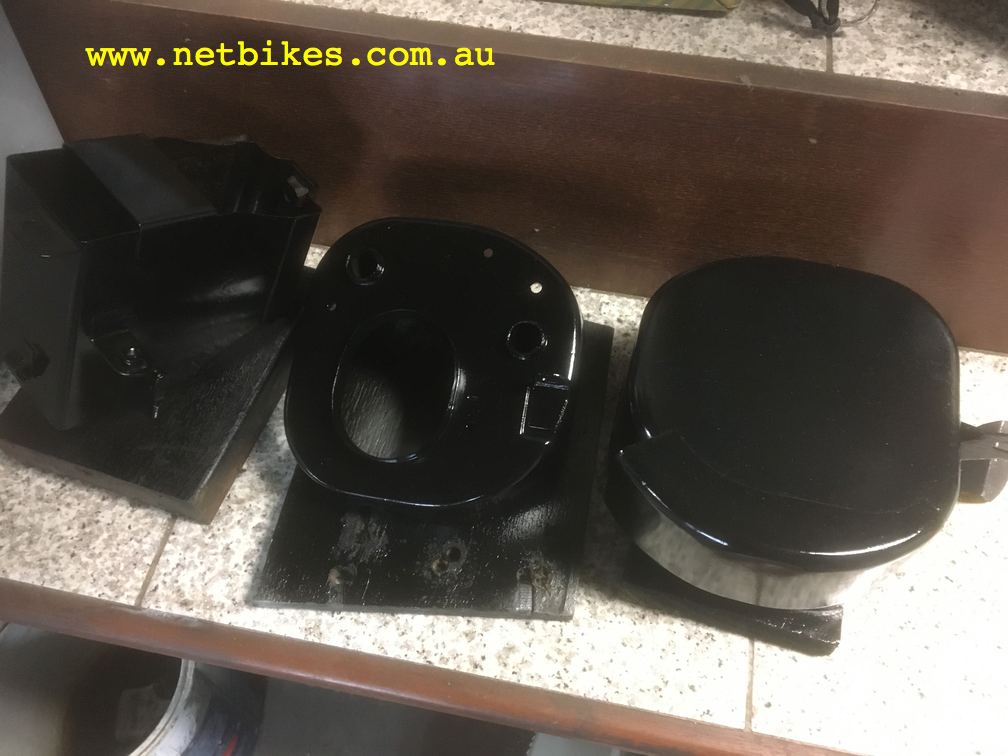

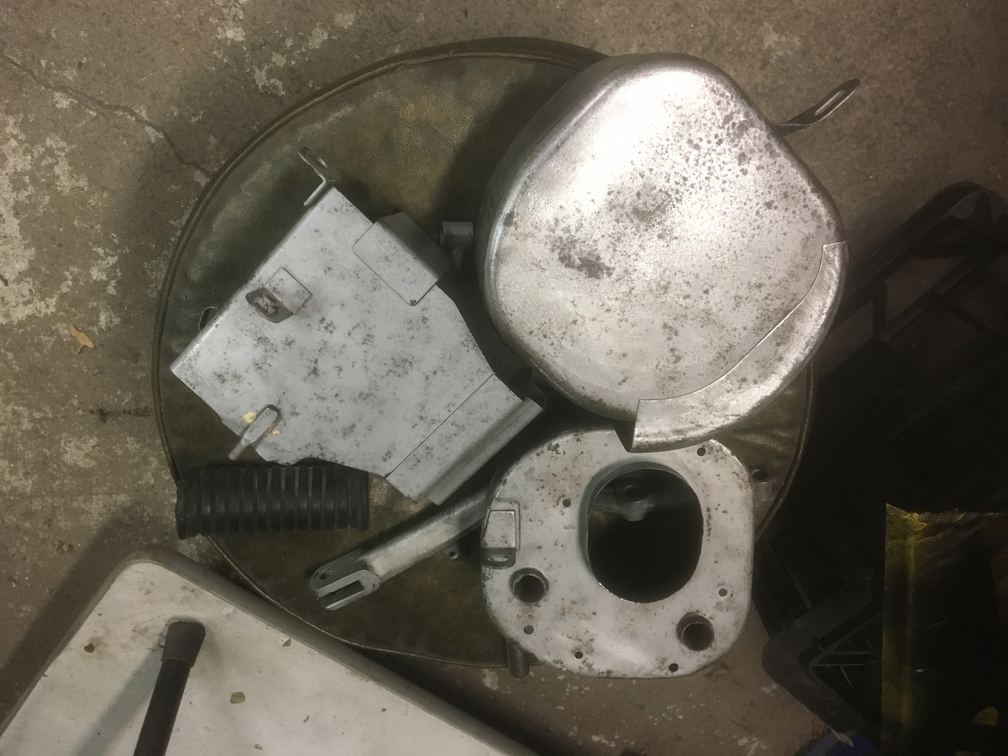

These parts prepped for painting.

gt250 suzuki

Job done.

suzuki gt250

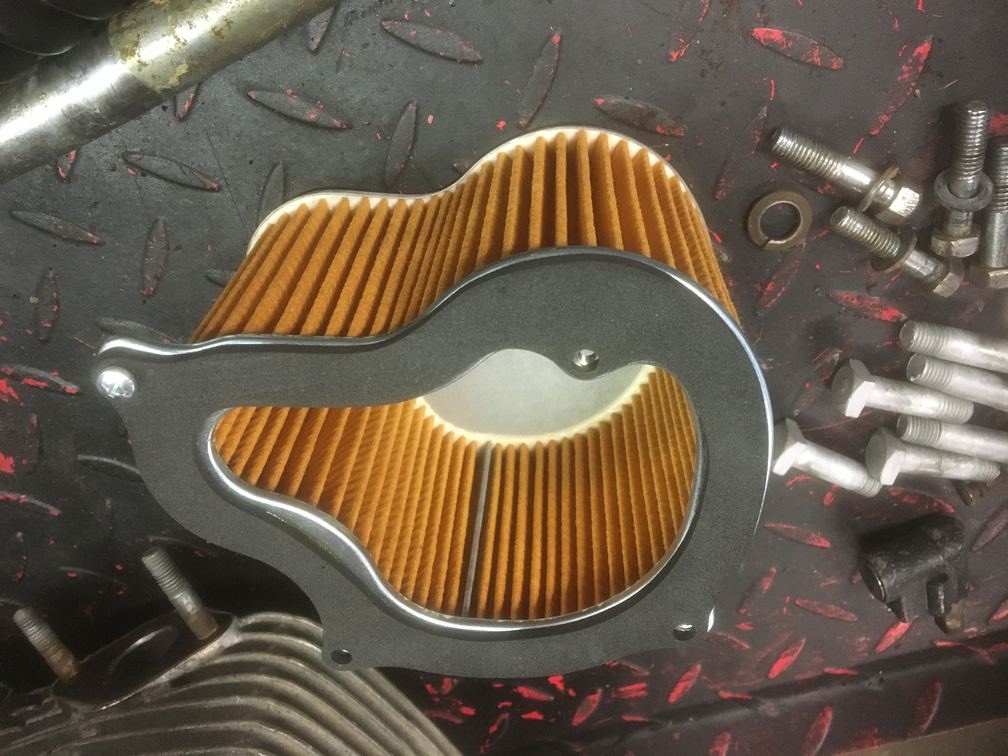

New air filter element for the box.

suzuki gt250

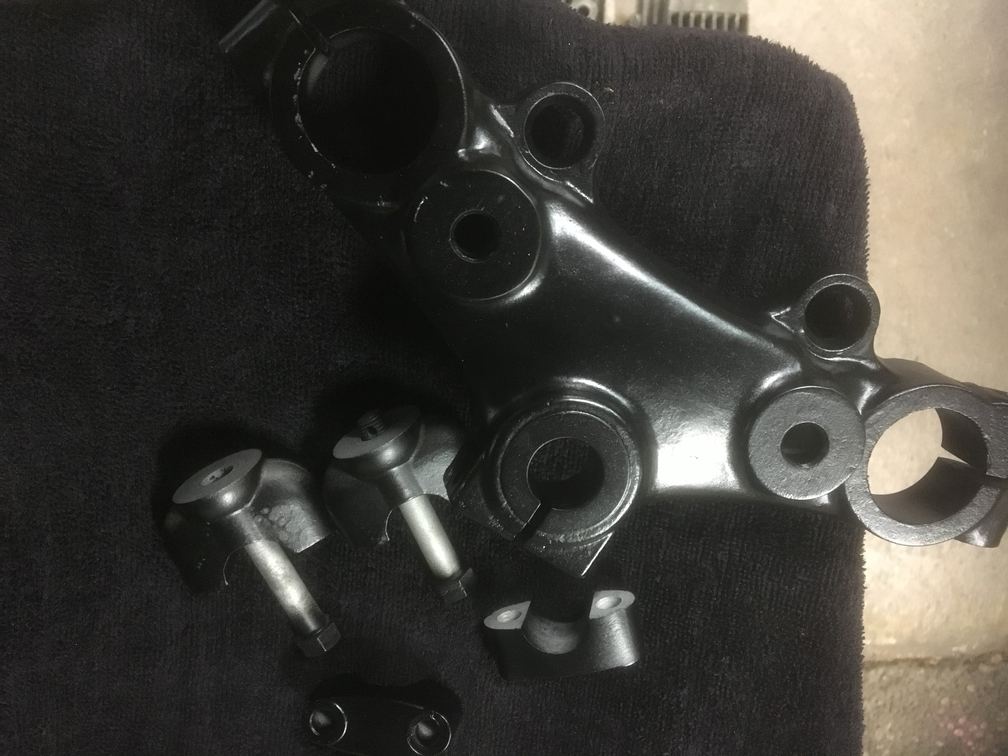

Top clamp made ready for refitting

suzuki gt250

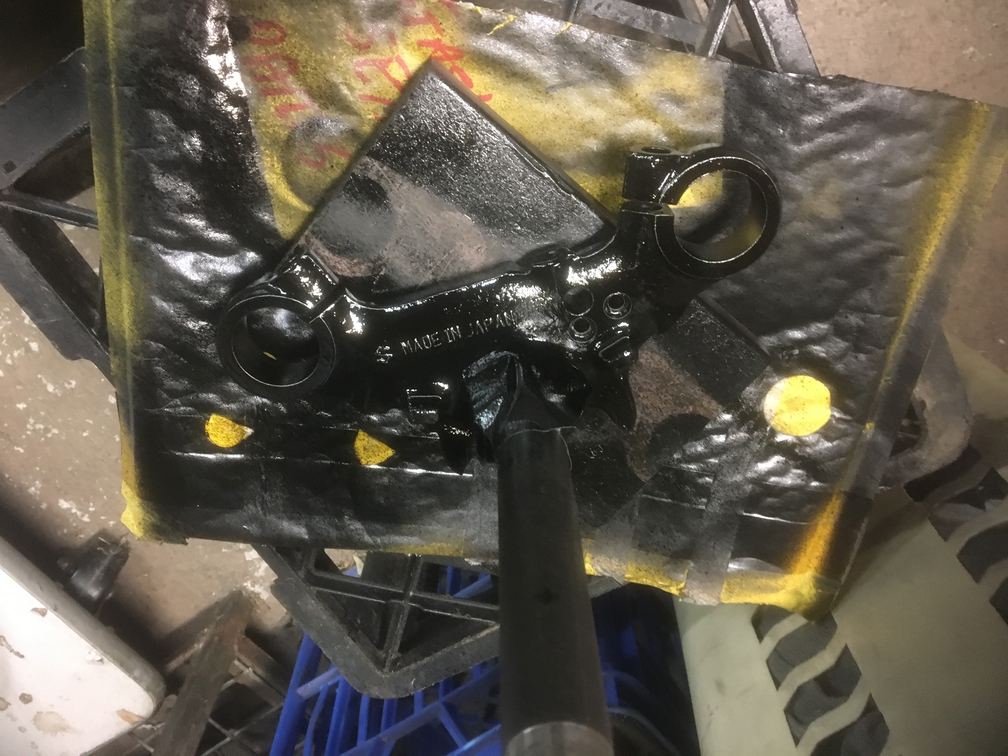

Lower triple clamp made ready for fitting.

suzuki gt250

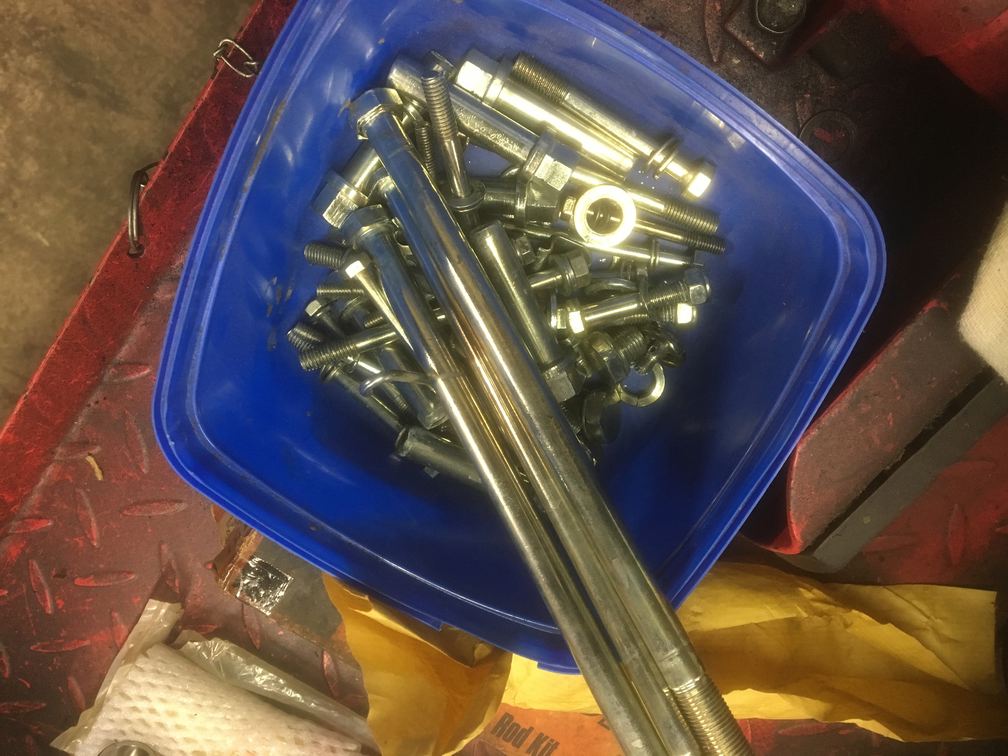

Cycle threads re plated.

suzuki gt250

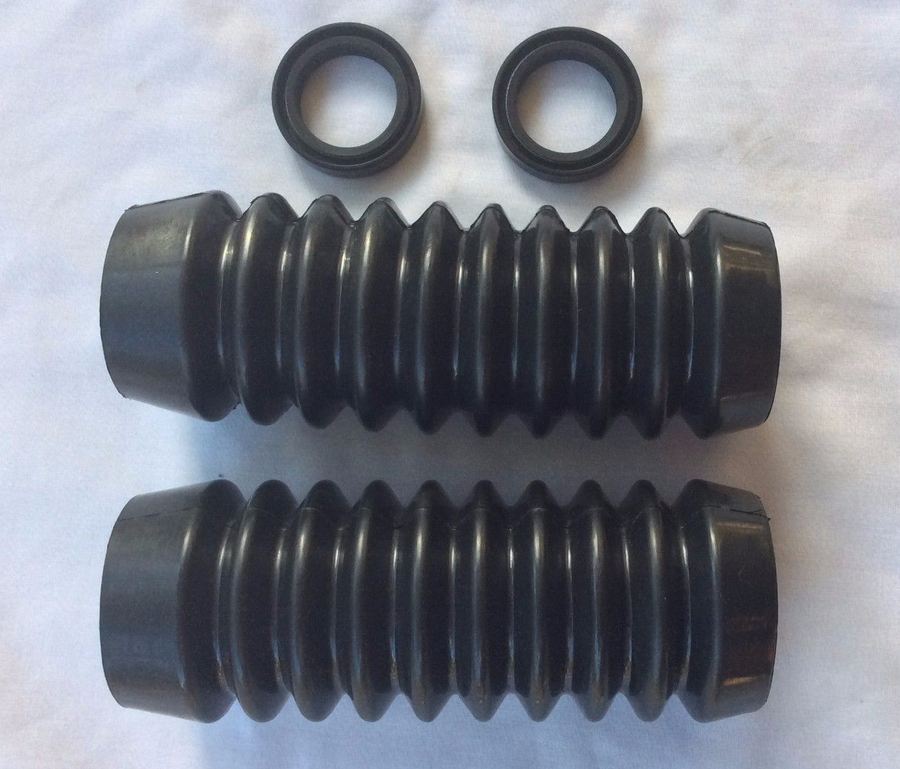

New front fork gaiters and seals.

suzuki gt250

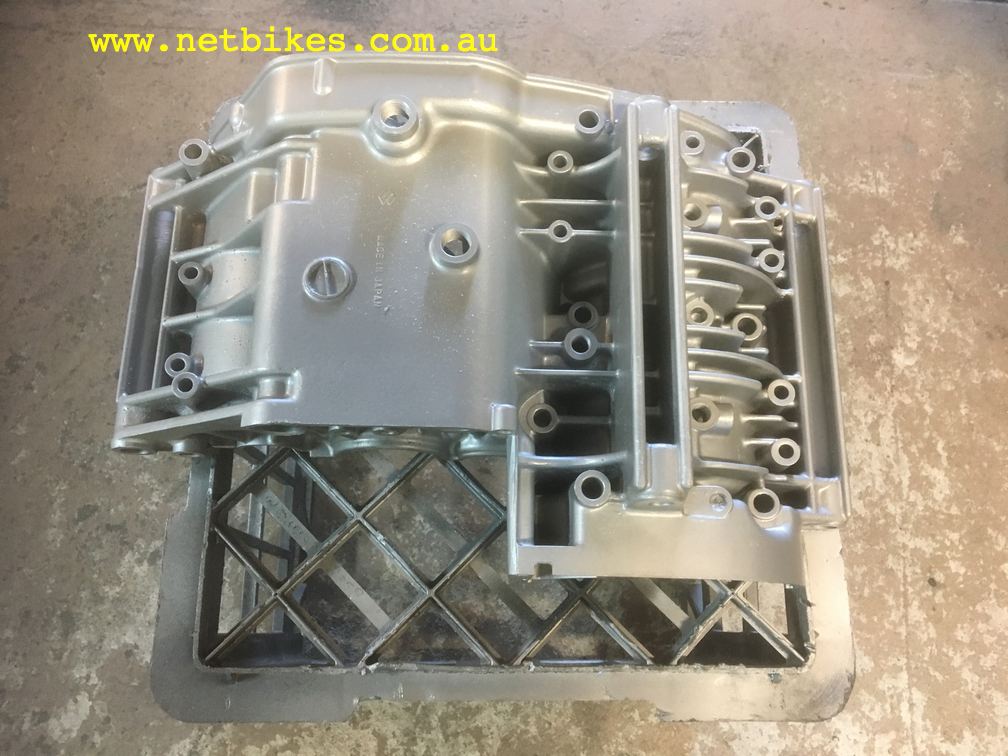

Lower case ready to fit up.

suzuki gt250

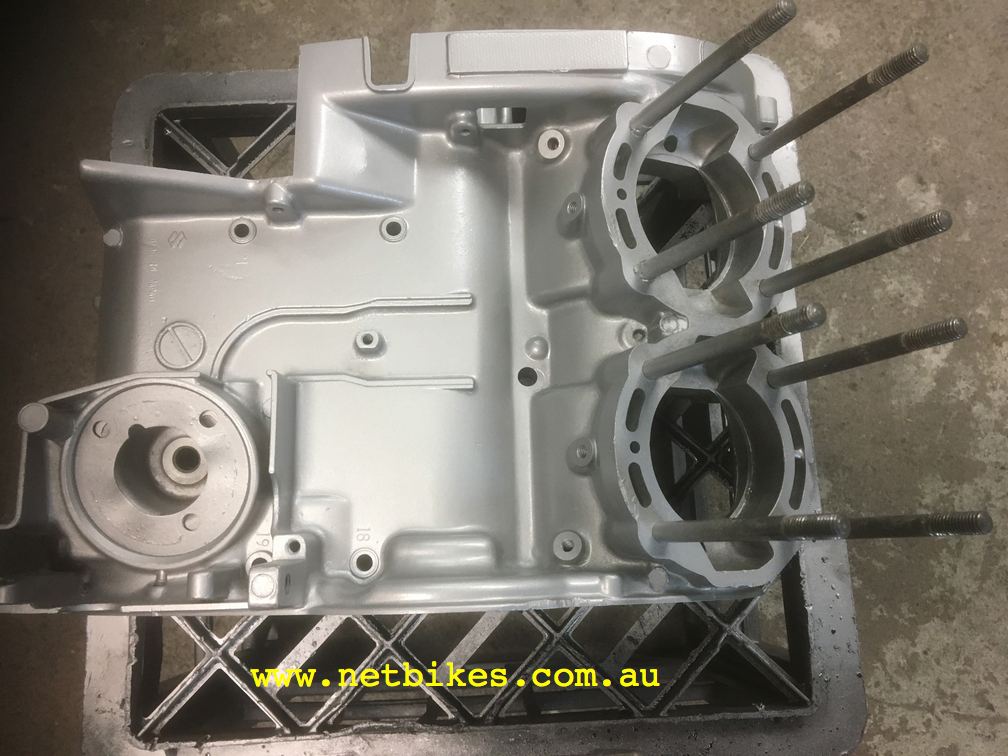

Top engine case cleaned and painted ready for more work.

suzuki gt250

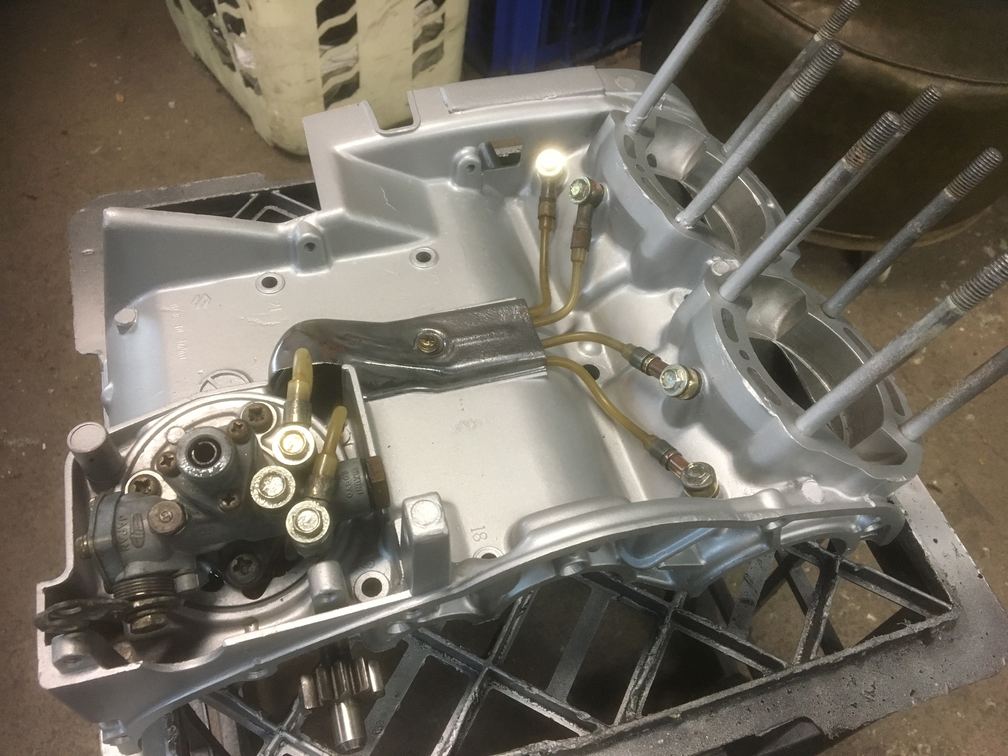

Pump and lines fitted, will bleed before operation.

gt250 suzuki

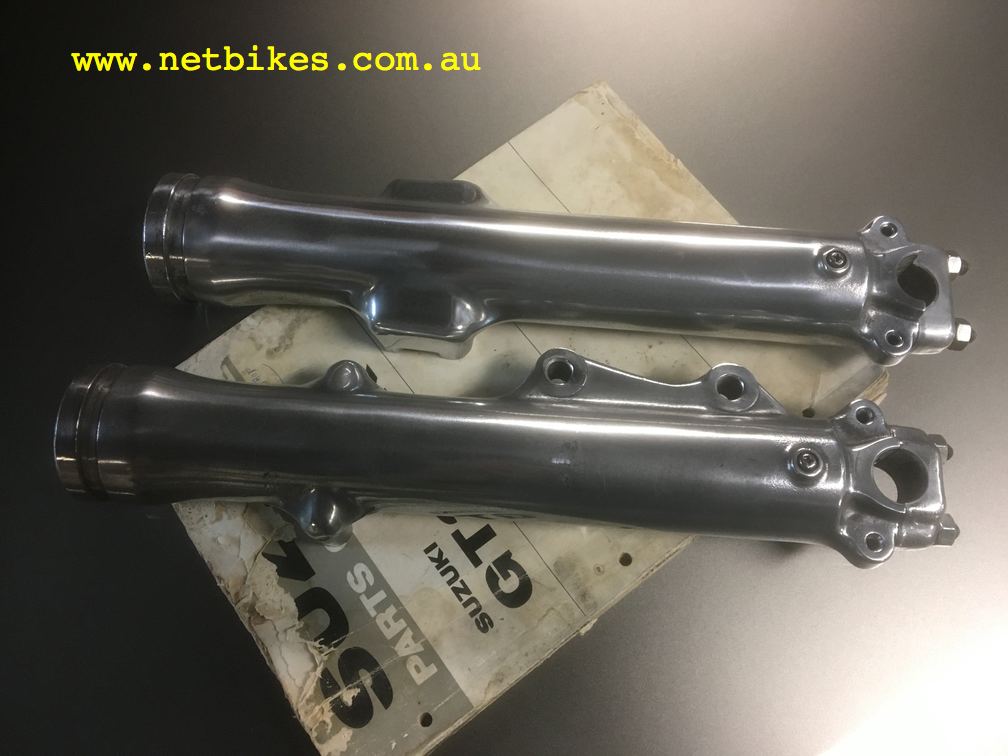

Front fork lowers blinged up.

suzuki gt250

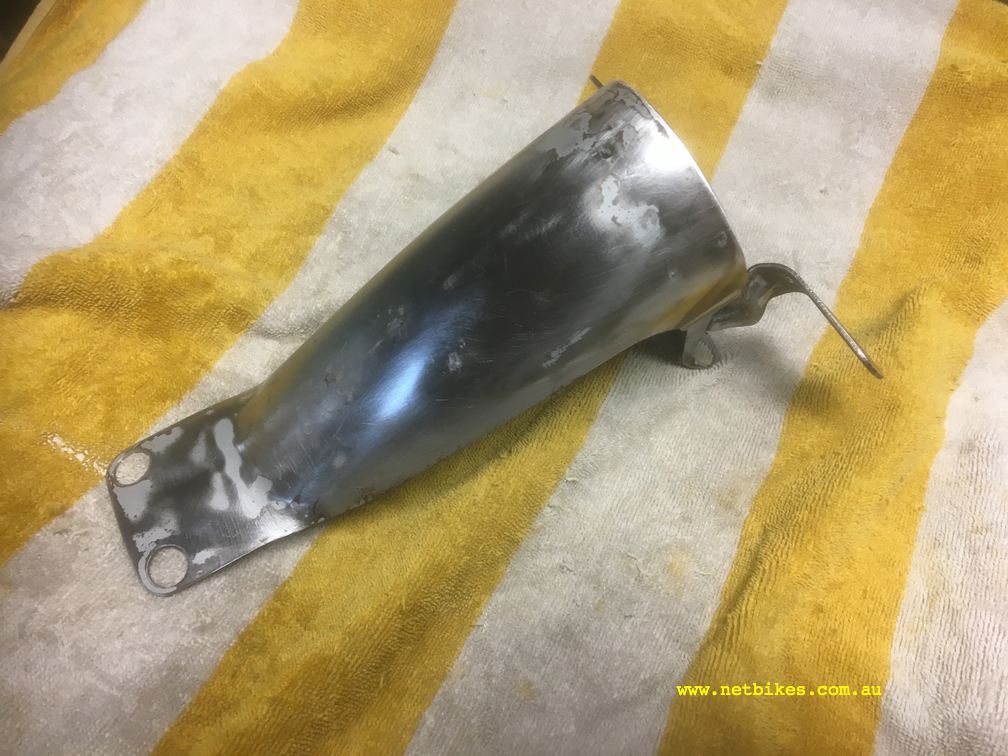

Tailight mount prepped for painting, this came off a 1966 T200, so first time repaint in 50 something years.

suzuki gt250

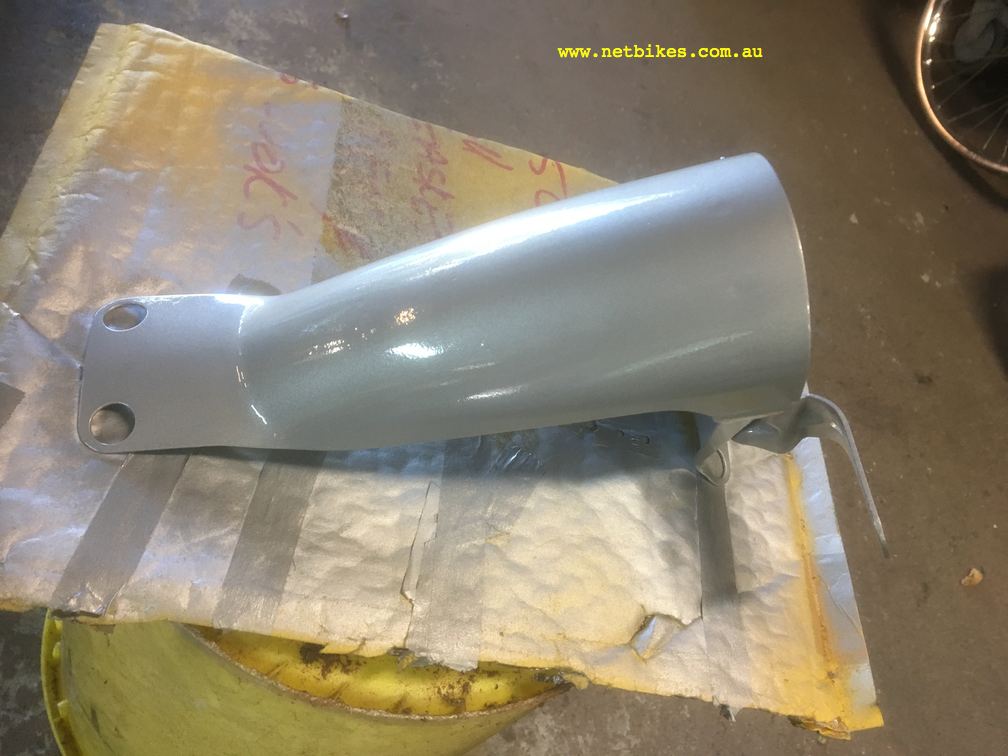

Job done.

suzuki gt250

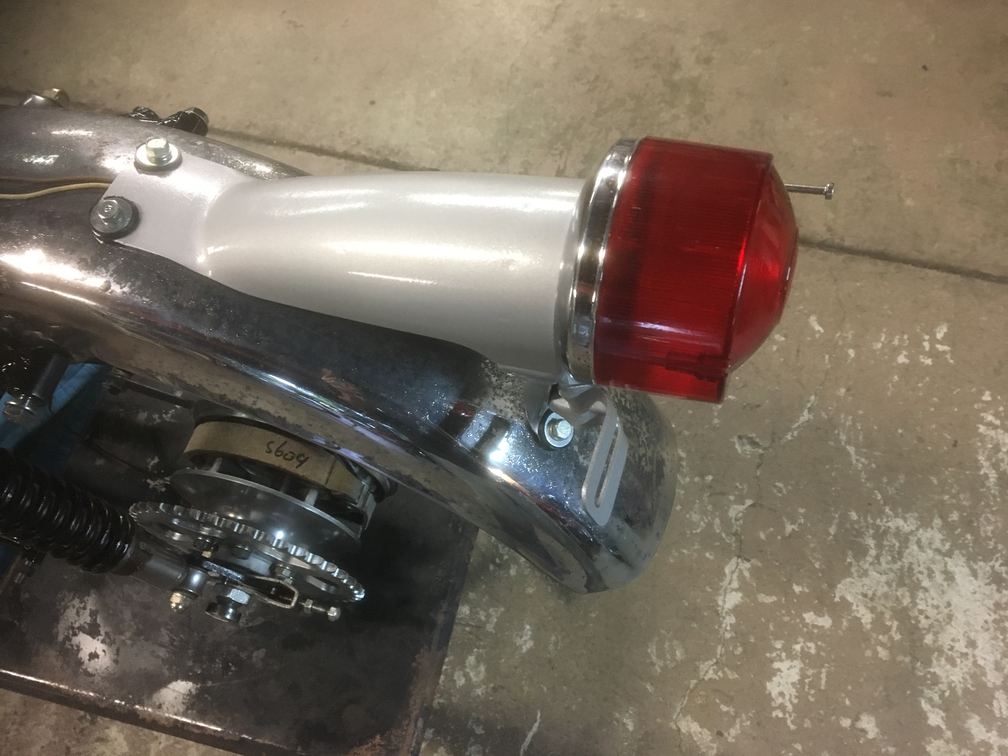

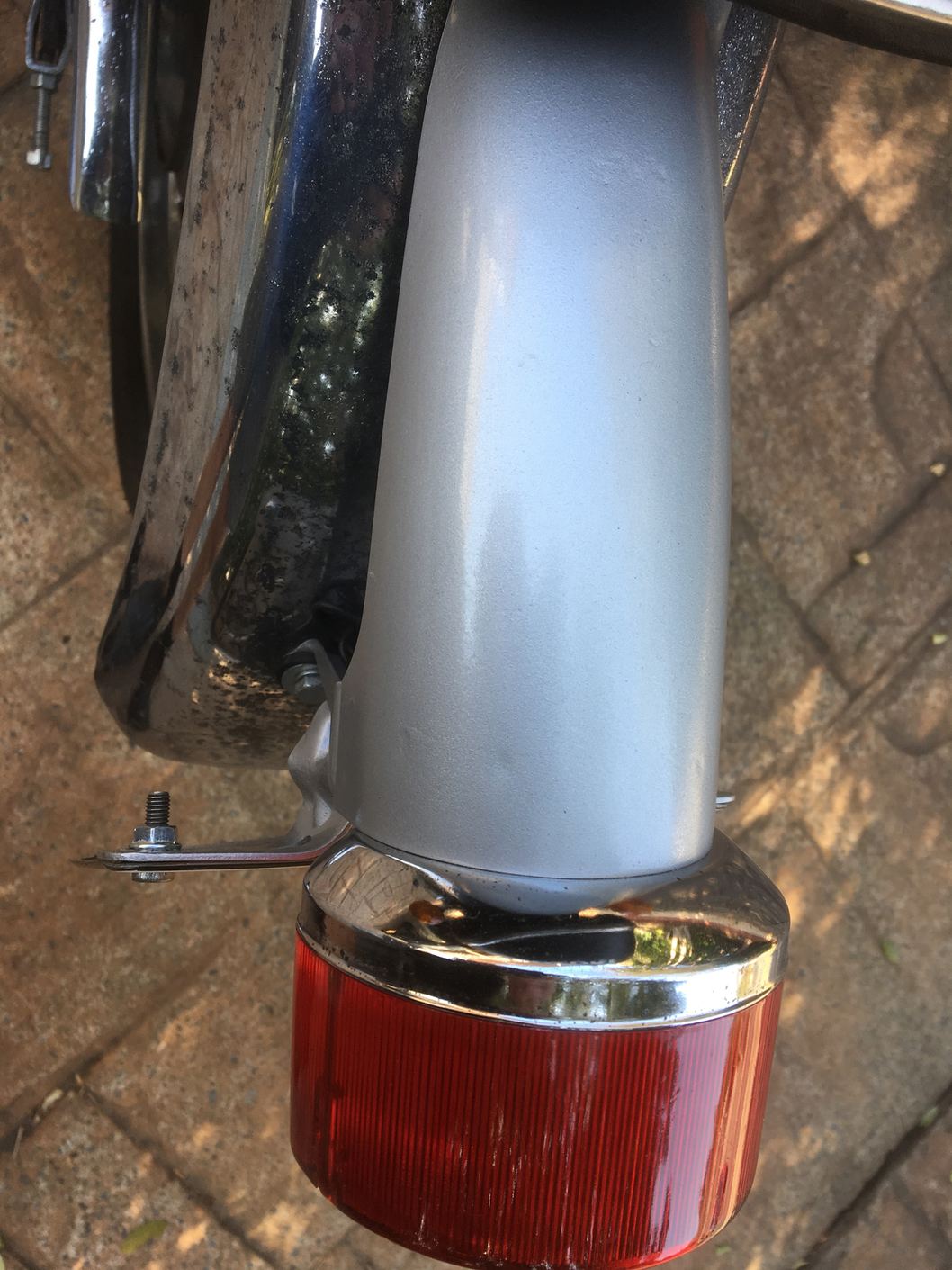

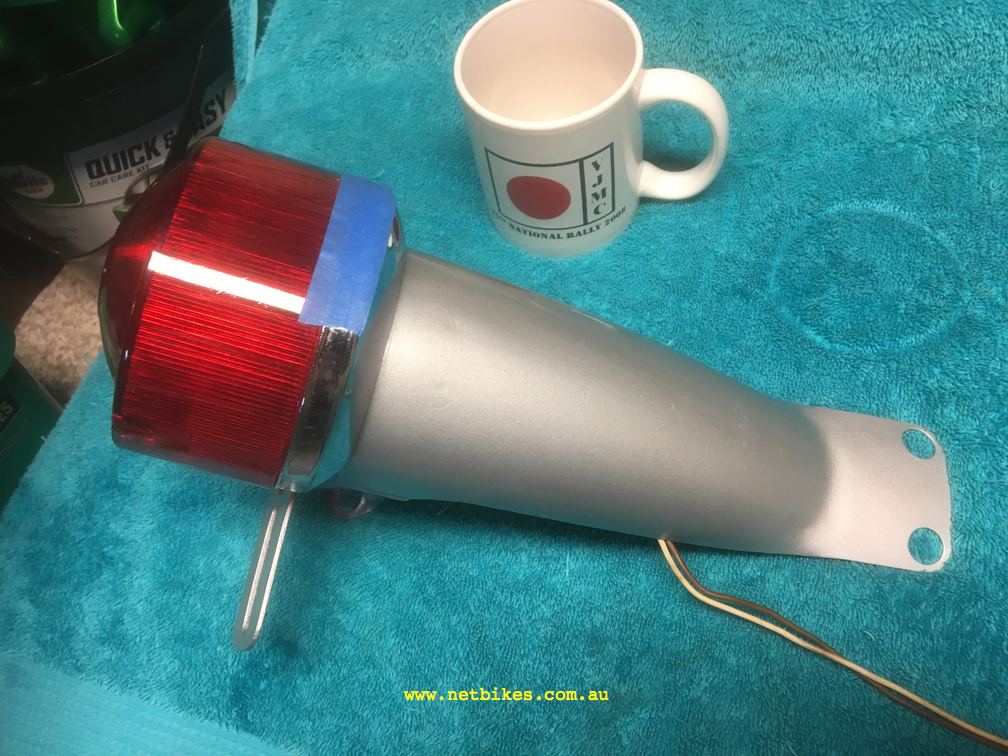

Ok last look at this :), nice new tail light lens, so pretty, it's gotta get screwed still :)

suzuki gt250

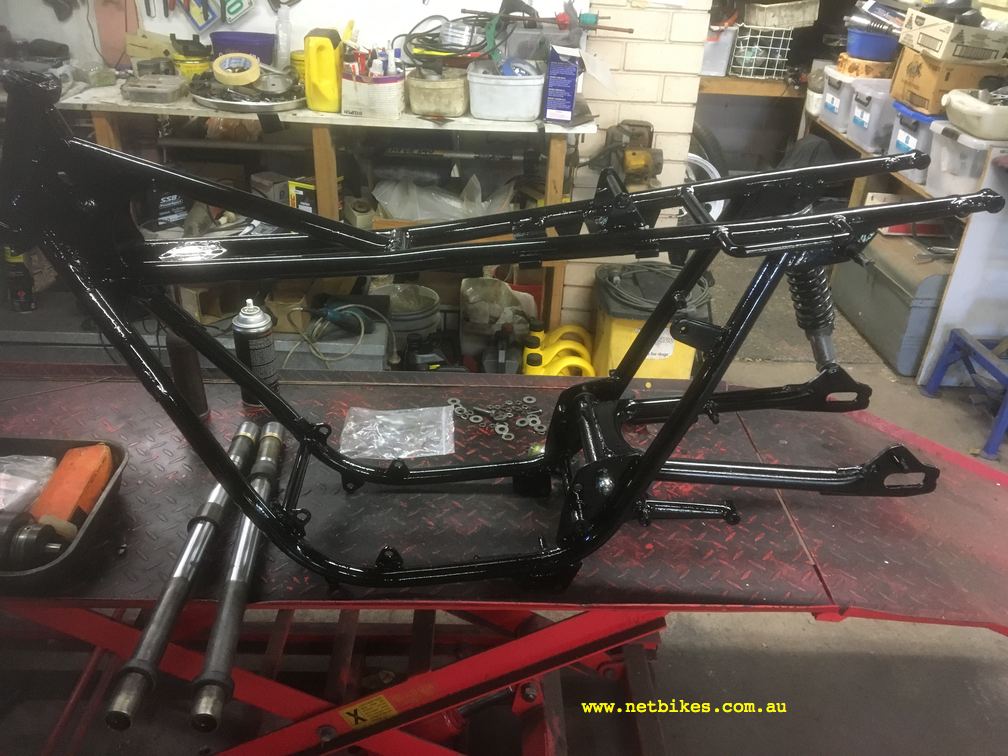

Frame freshly painted with Killrust black gloss.

suzuki gt250

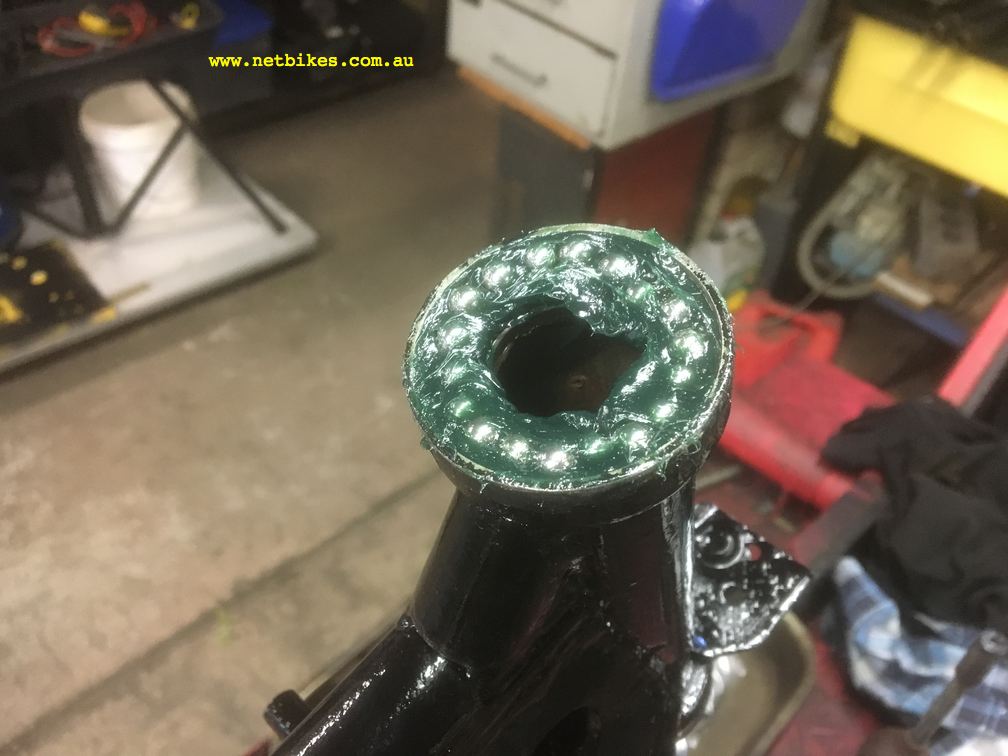

some new bearings for the neck.

suzuki gt250

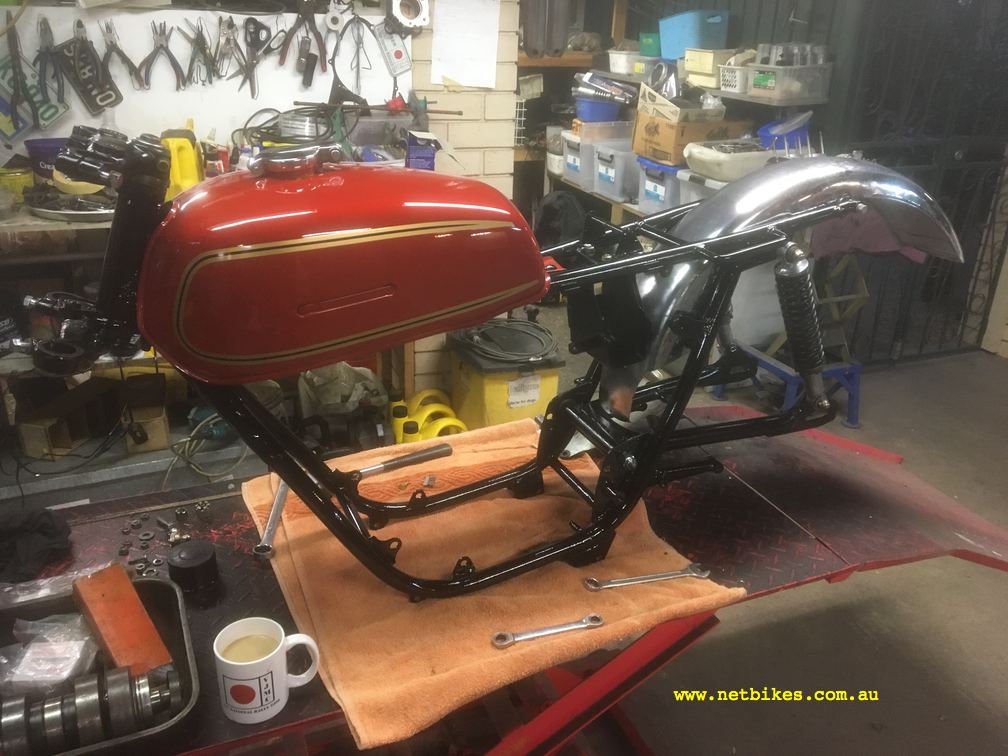

Quick mock up with the NOS tank, sweet.

suzuki gt250

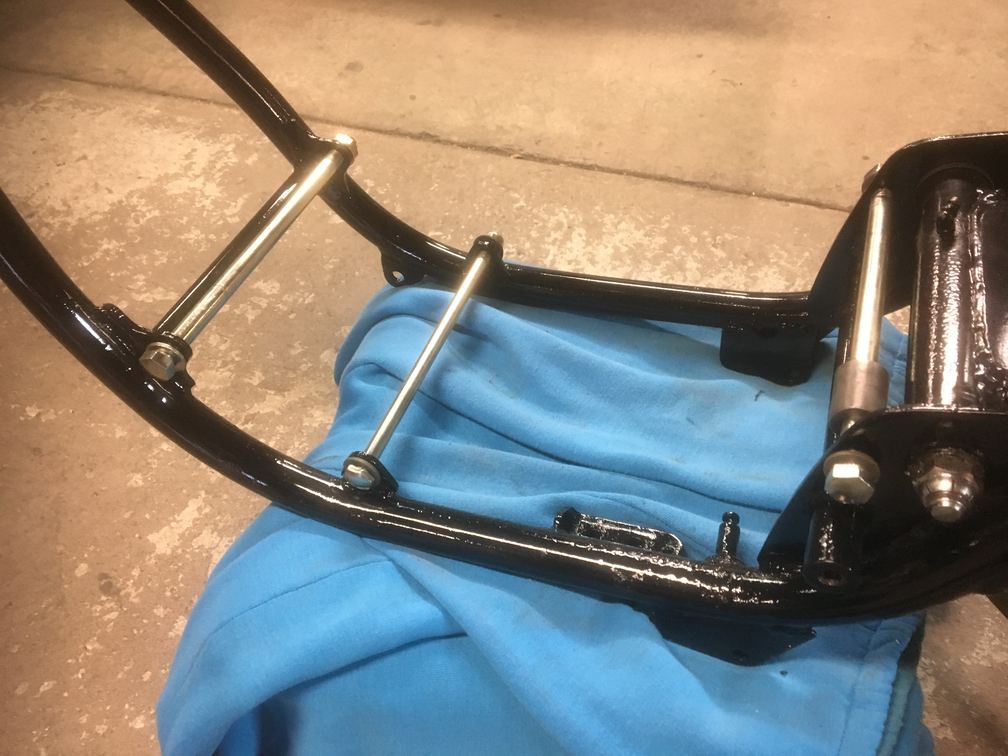

Engine mounting bolts, newly zinc plated.

gt250 suzuki

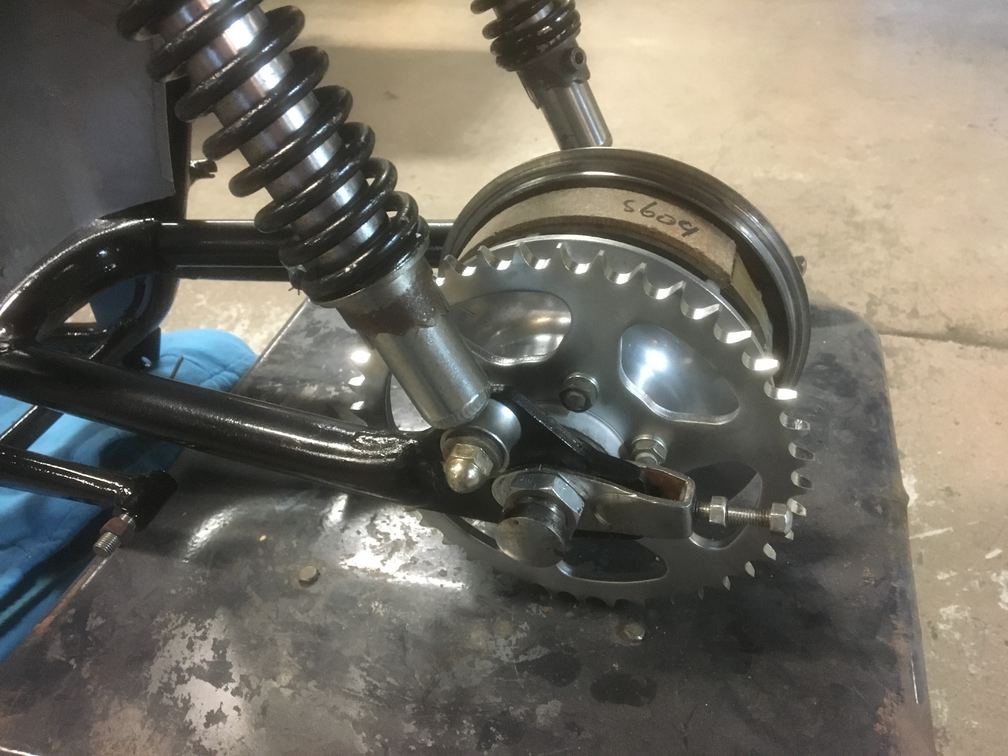

New rear sprocket, 41 teeth, 525 pitch, standard.

suzuki gt250

That bloody tail light again :)

July 1 2018

Below: We are now up to almost rolling, just waiting on the front wheel to get its new tyre, should be in the next couple days.

gt250 suzuki

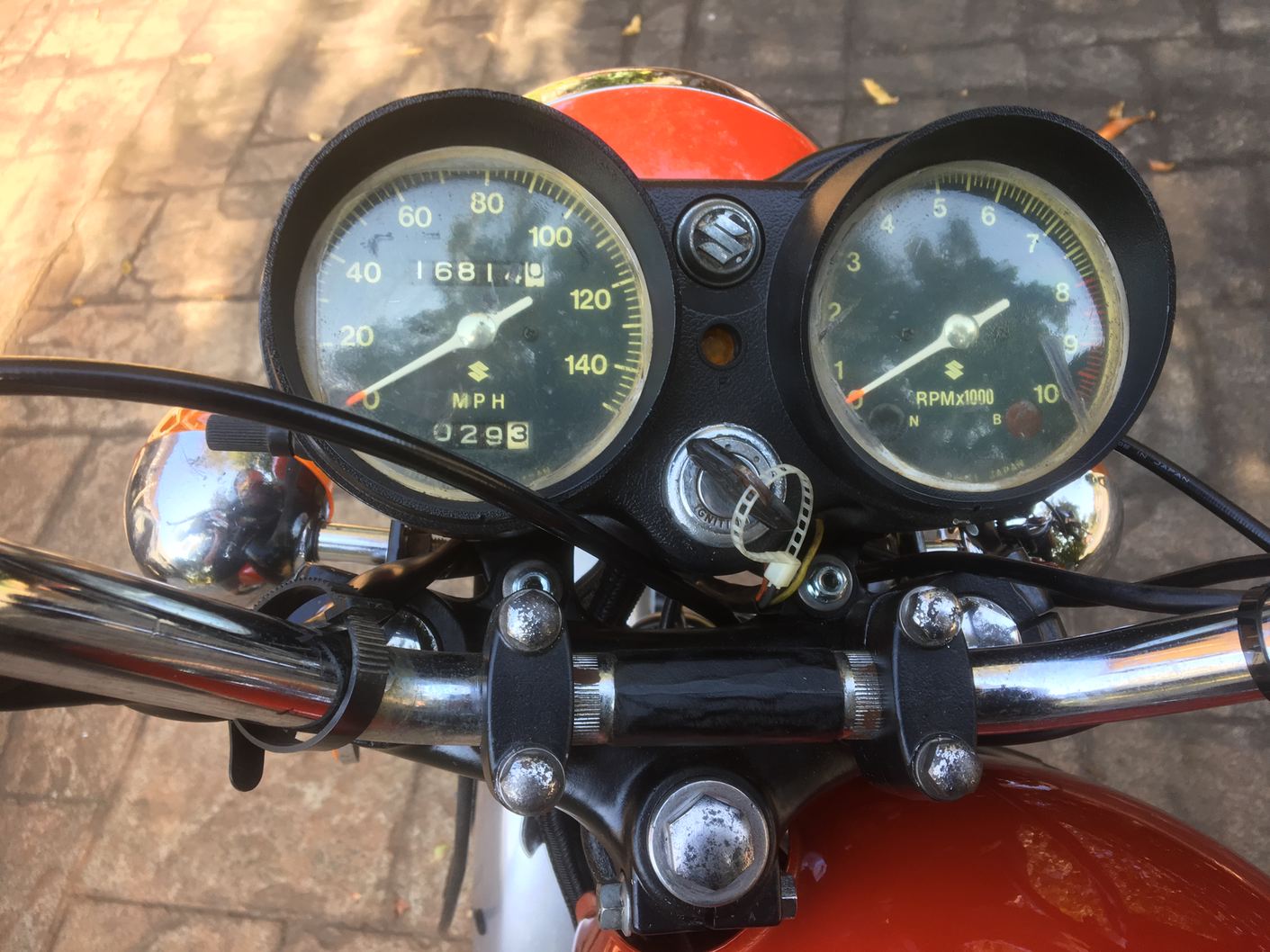

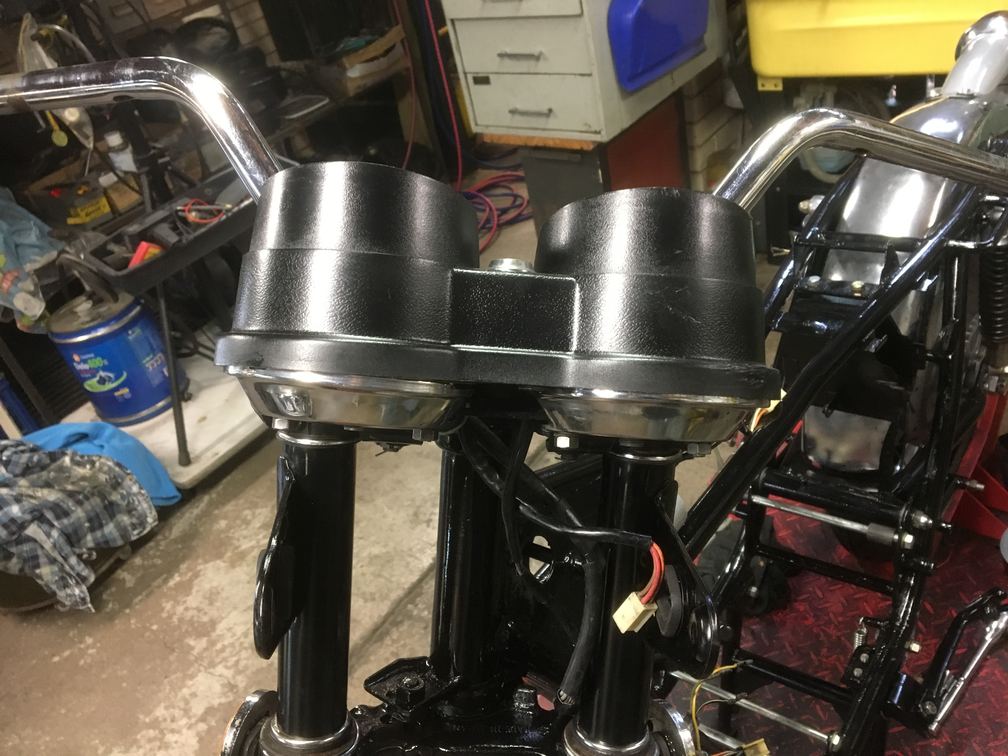

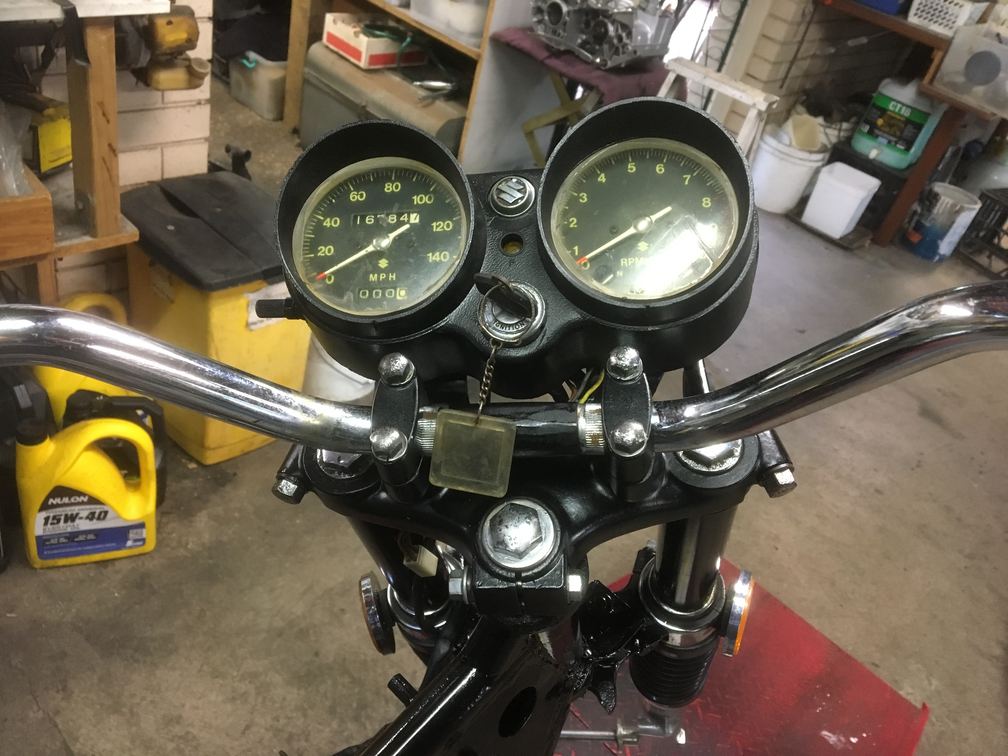

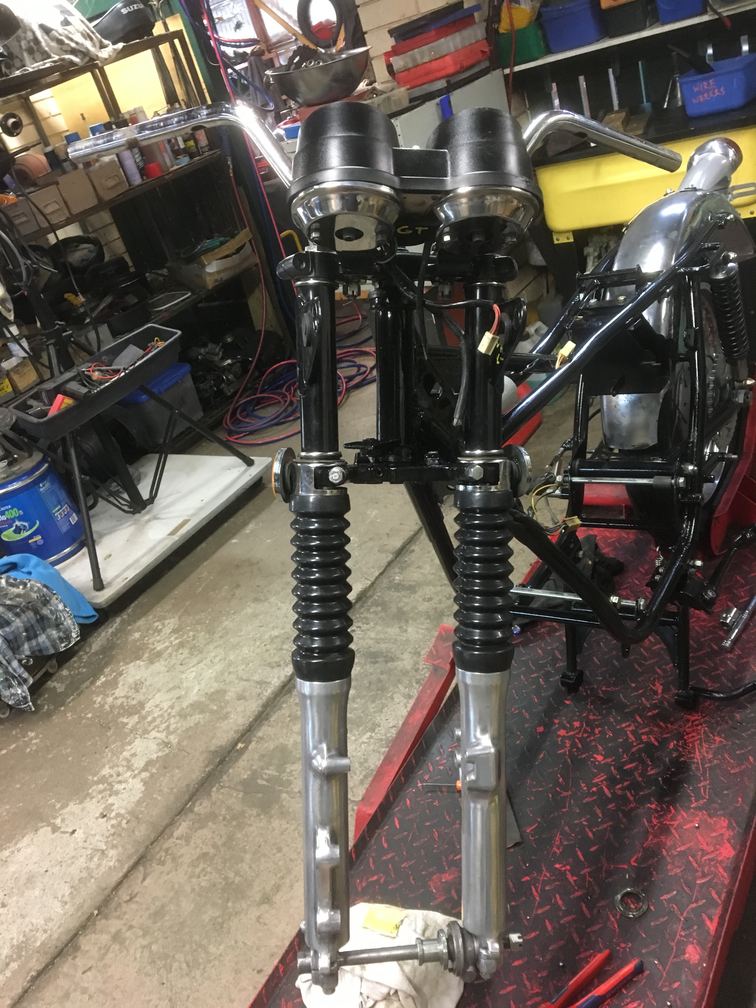

Instruments cleaned up and fitted, they are not perfect but in working order and will do what is required.

suzuki gt250

suzuki gt250

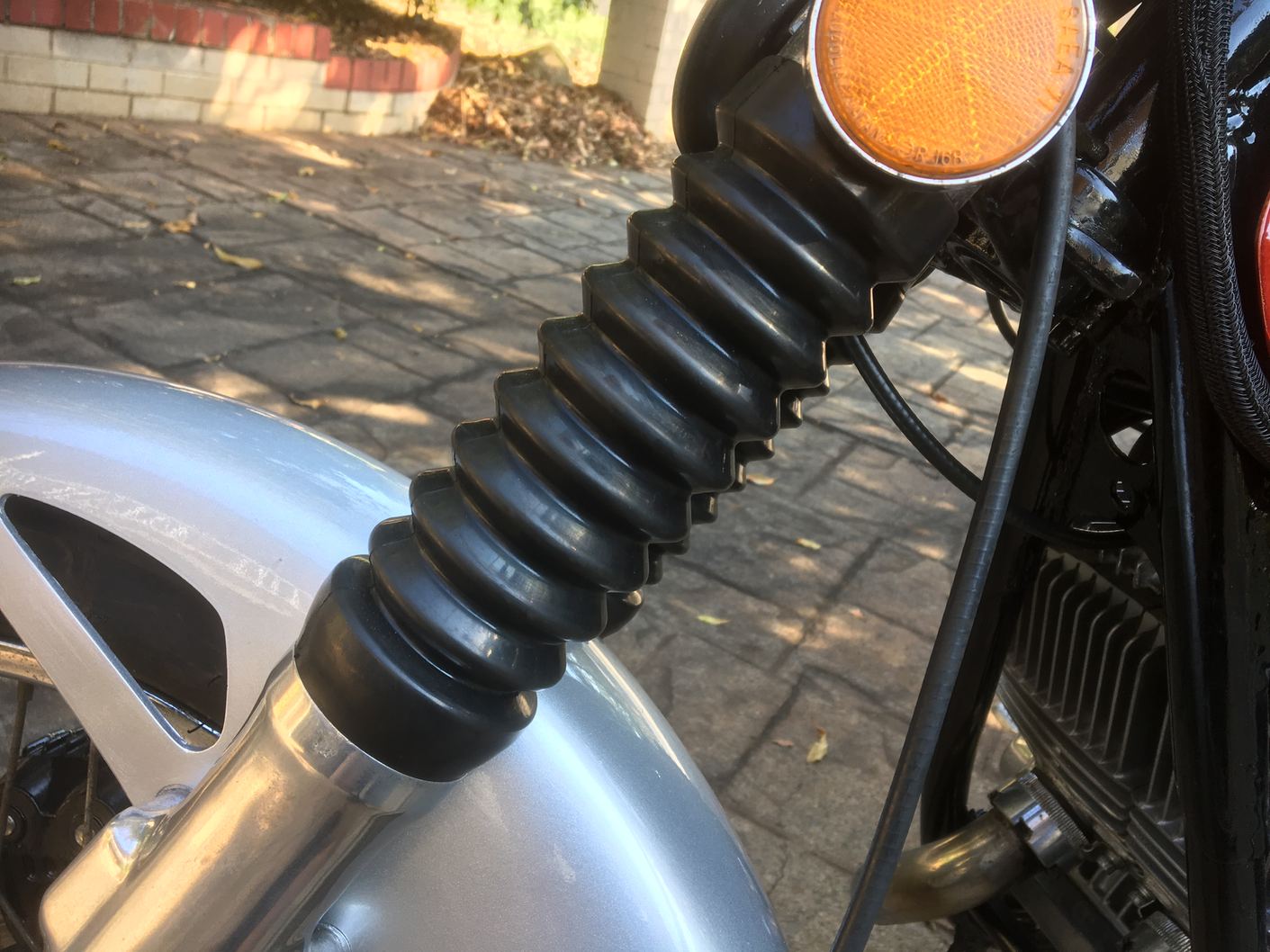

New fork seals and gaters fitted, the frame neck has new bearings.

July 3 2018

gt250 suzuki

gt250 suzuki

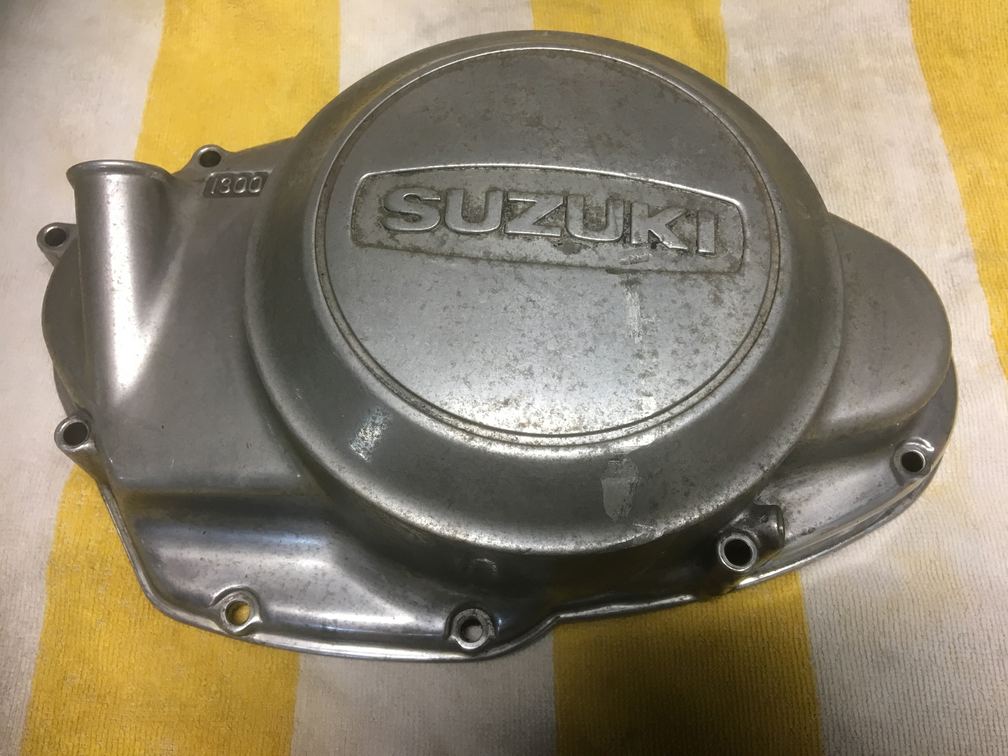

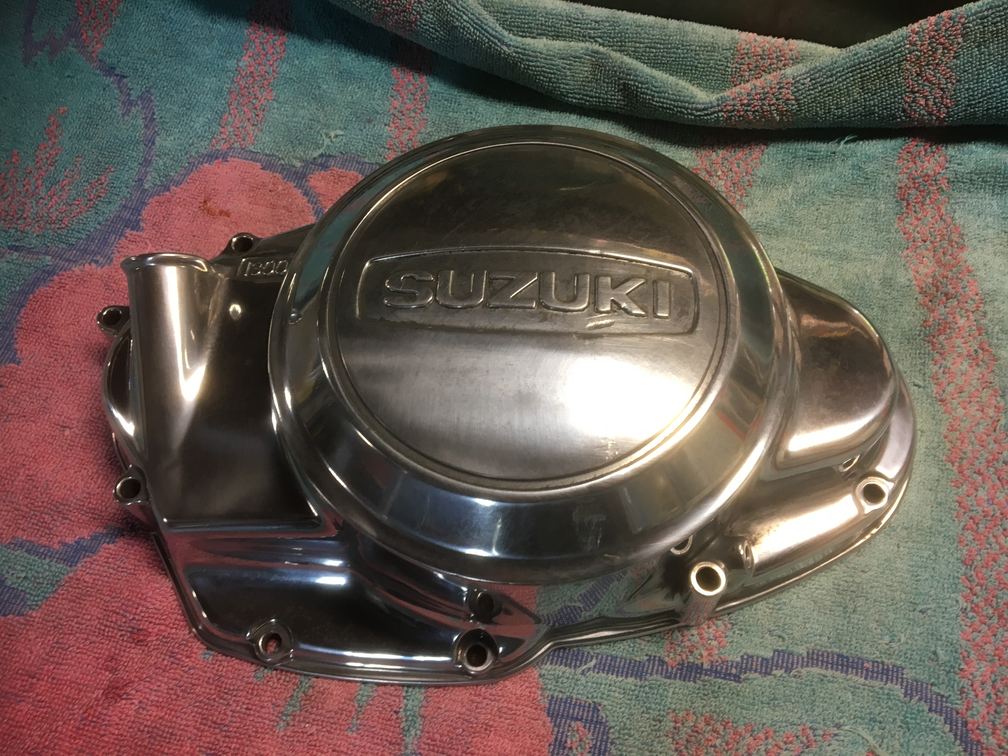

Before and after clutch cover

gt250 suzuki

suzuki gt250

suzuki gt250

suzuki gt250

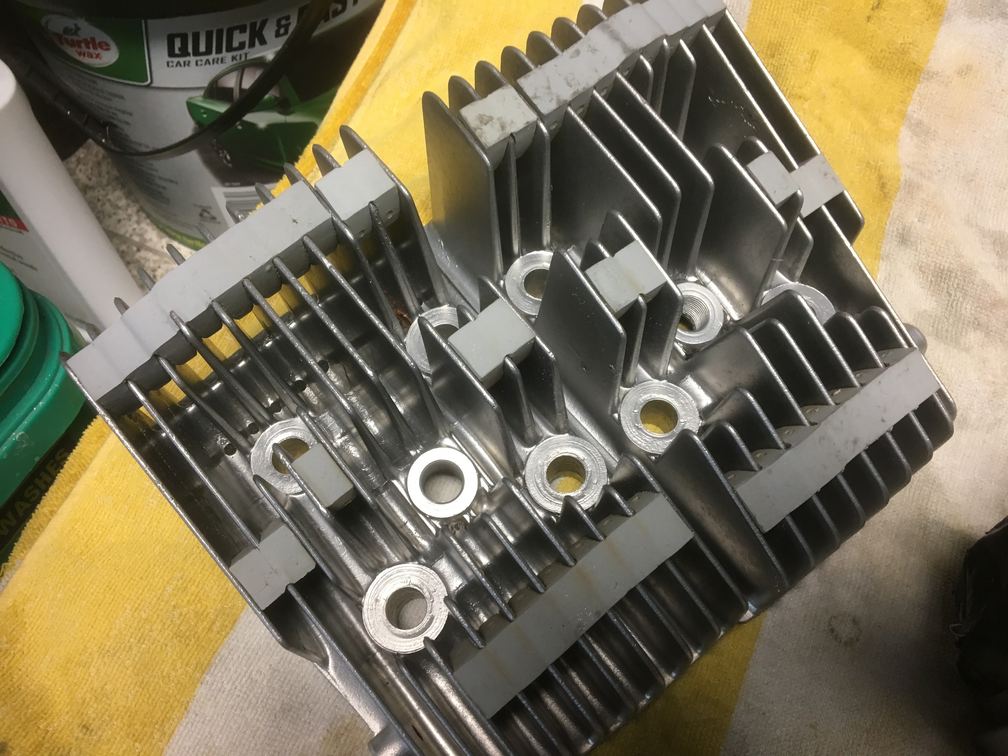

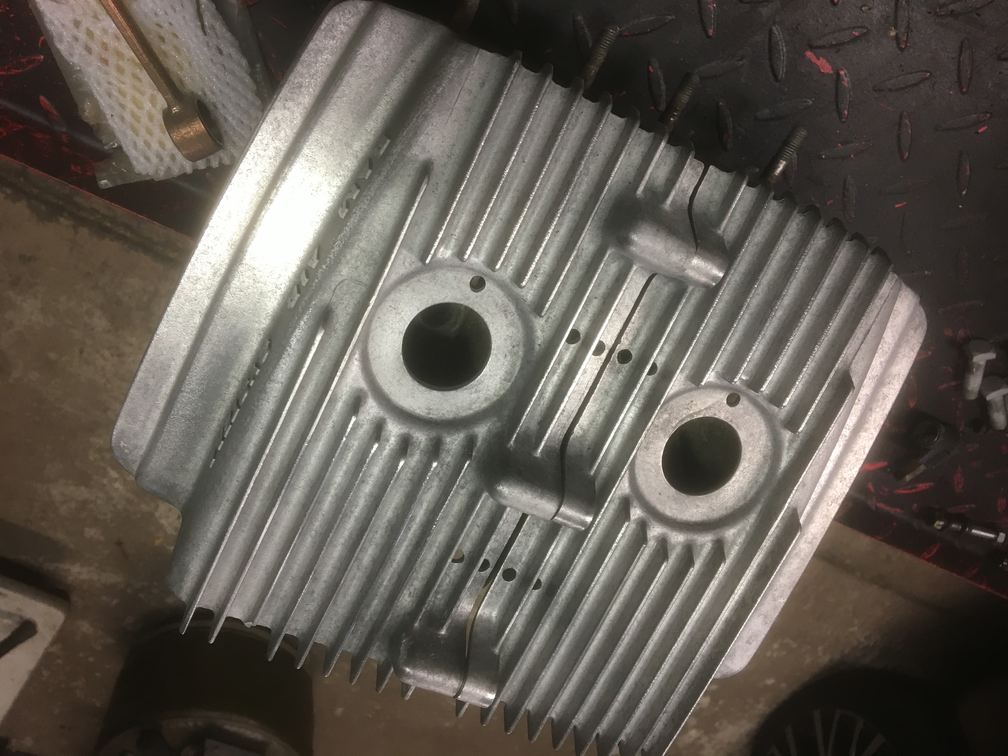

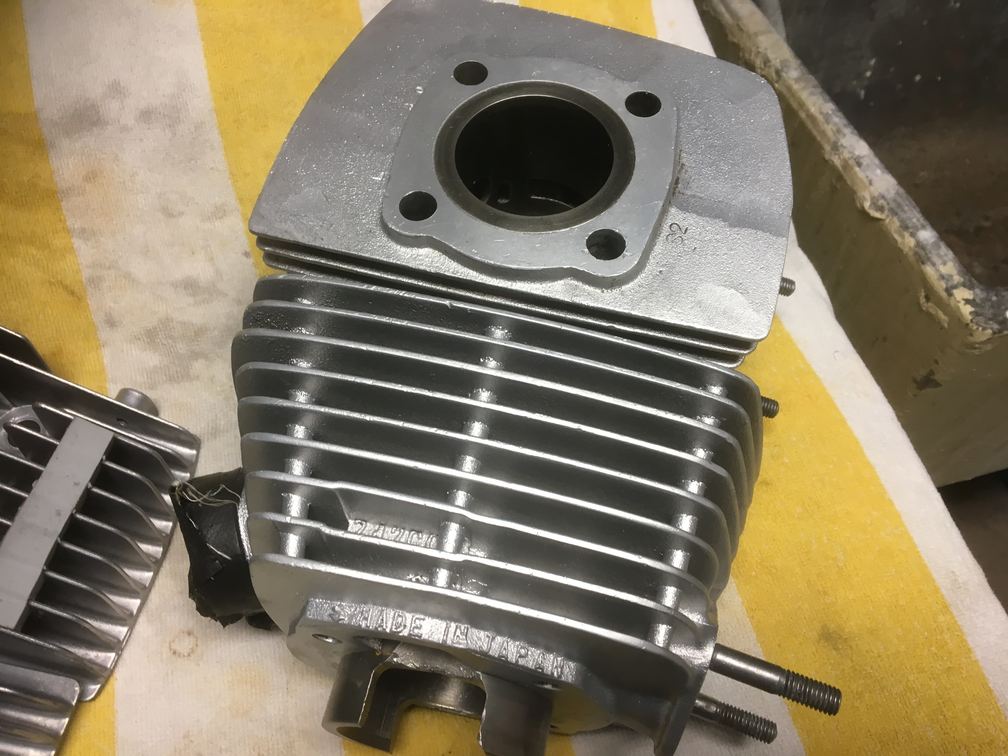

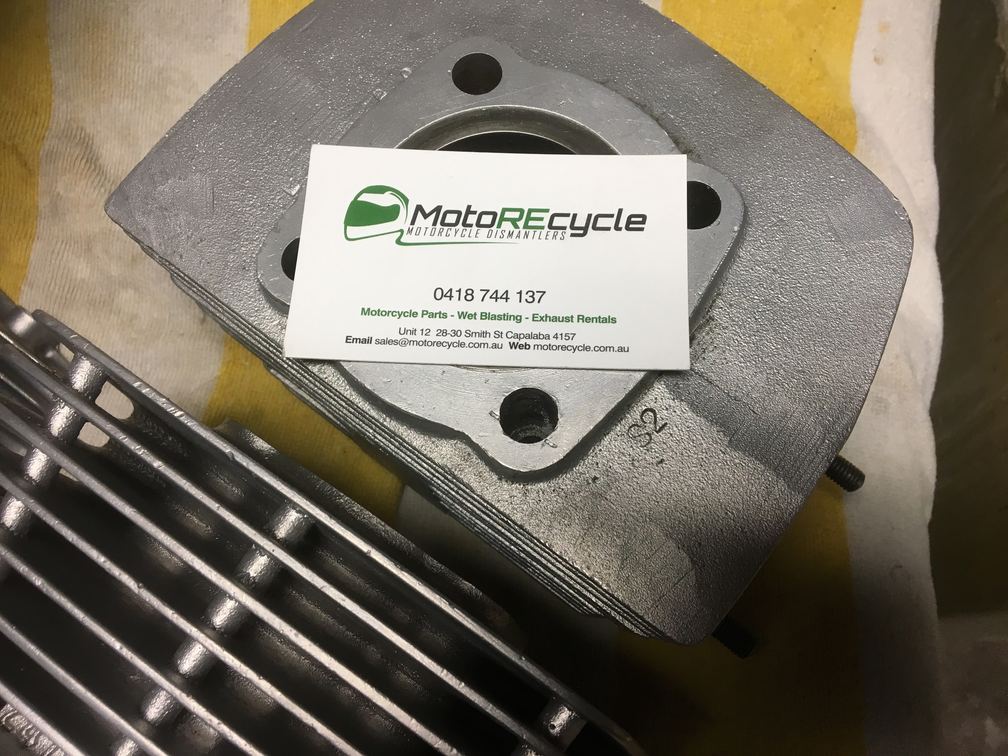

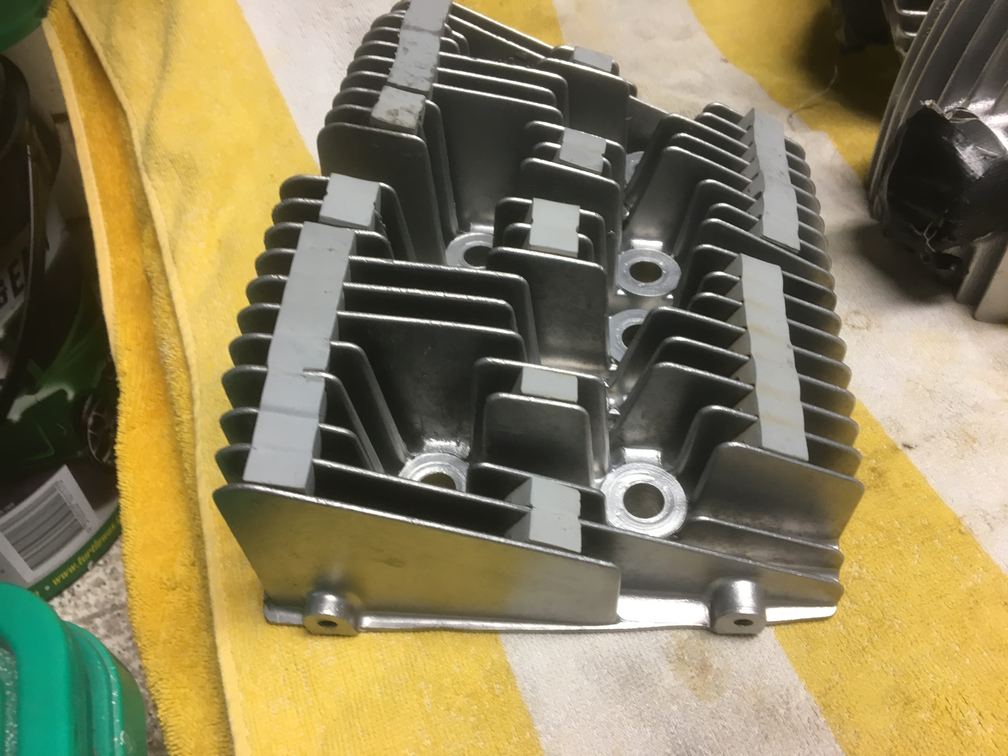

Barrels and heads after blasting, thanks Chris, very nice job.

suzuki gt250

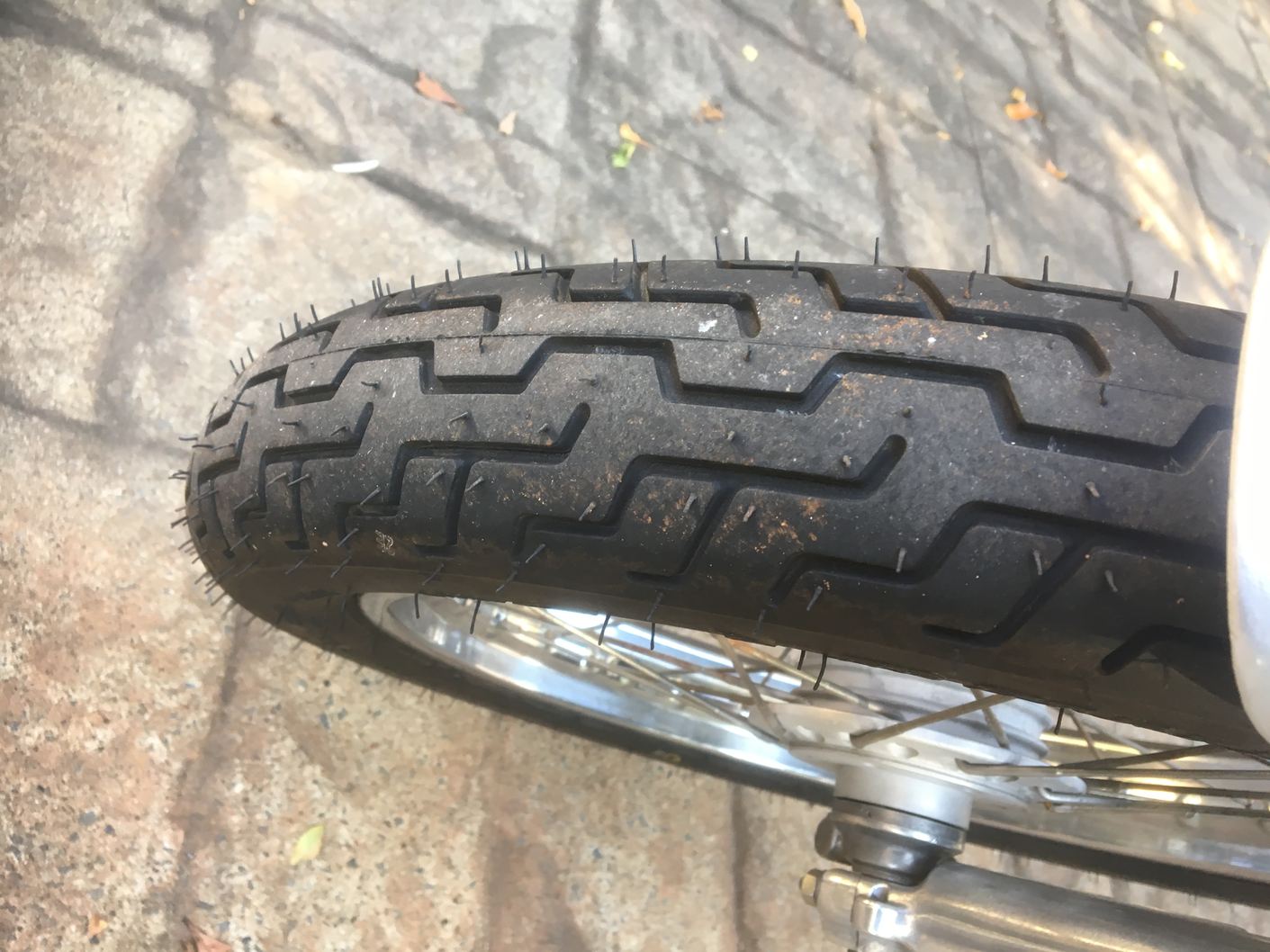

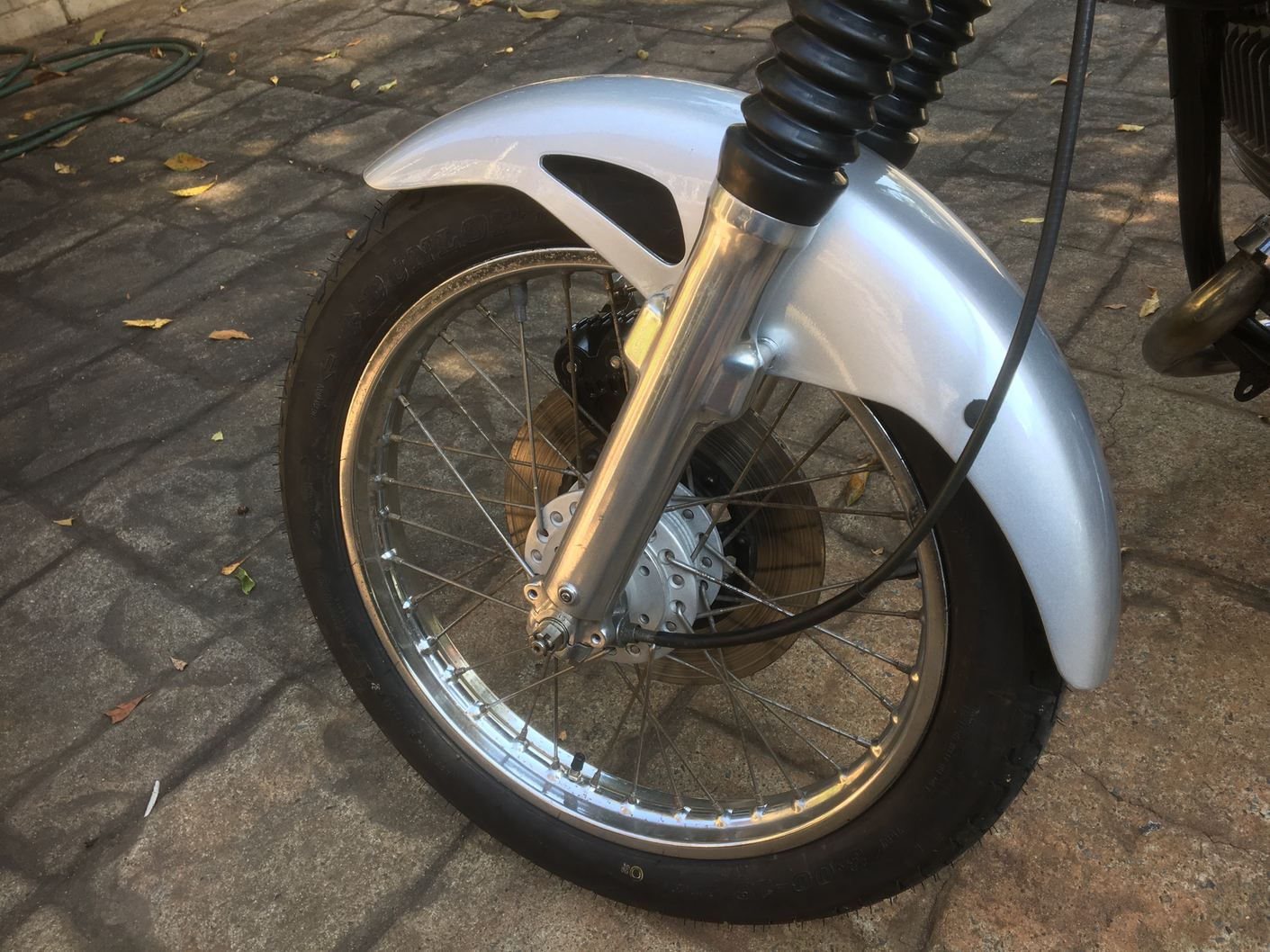

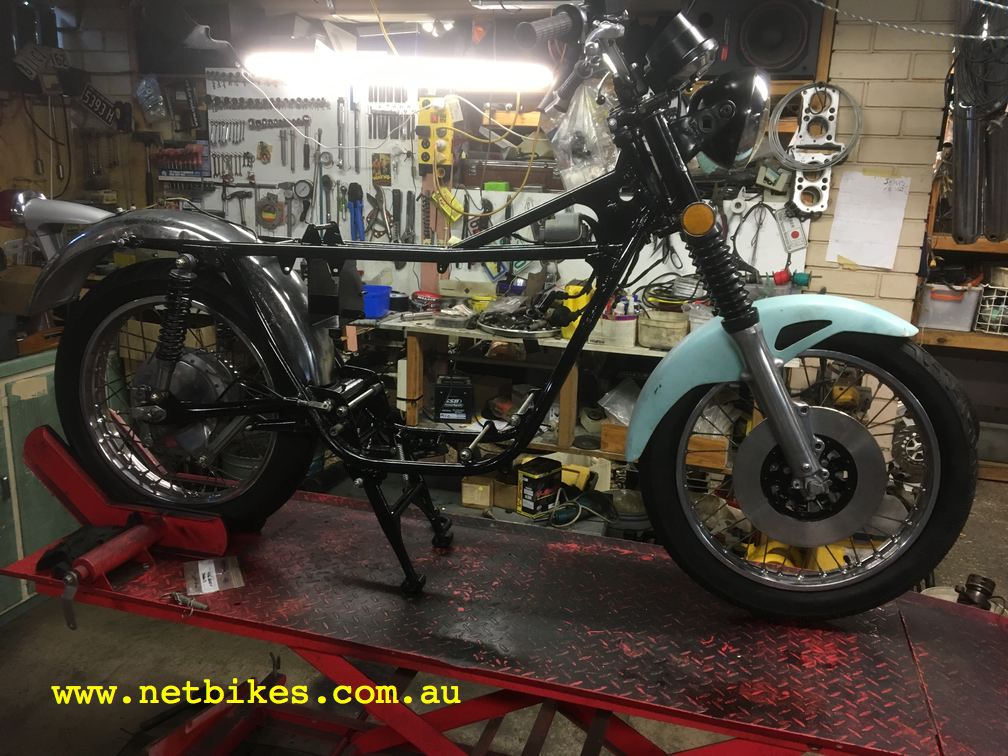

And we're rolling, new tyre to the front and of course new bearings. At this time this is the guard I will be using, it is from a GS250 and fits right up, I noted after pic I have it on in reverse :). it will be painted to match the tank I think?

July 10 2018

suzuki gt250

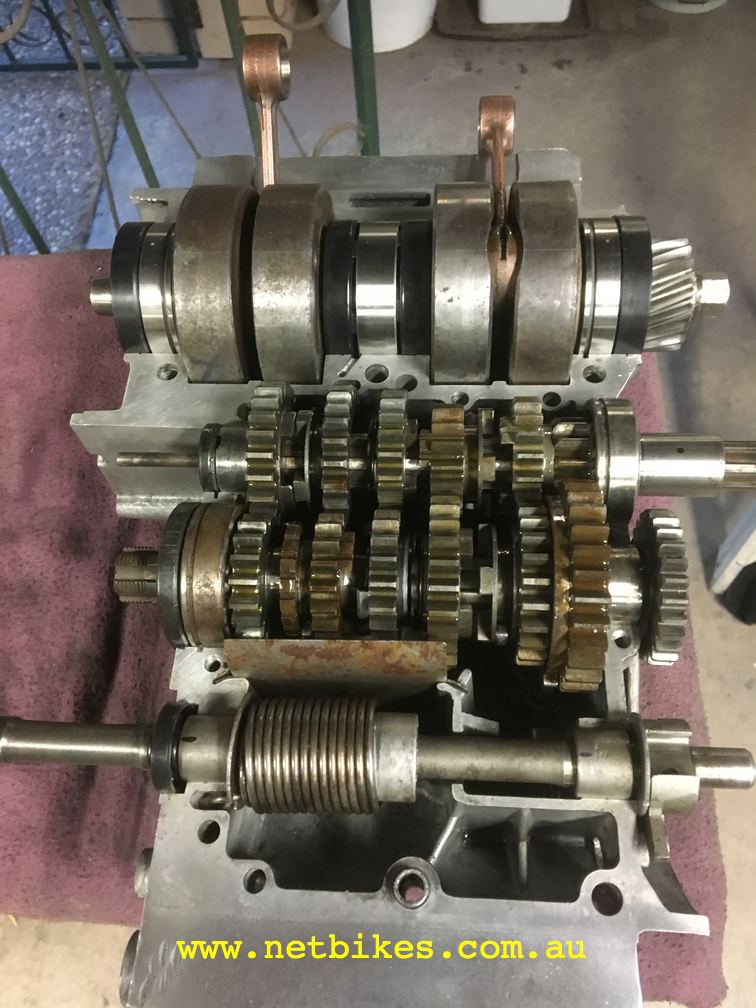

Bottom end parts loaded ready for close up. Crank has all new parts including rods, big ends, pins, main bearings and seals.

suzuki gt250

suzuki gt250

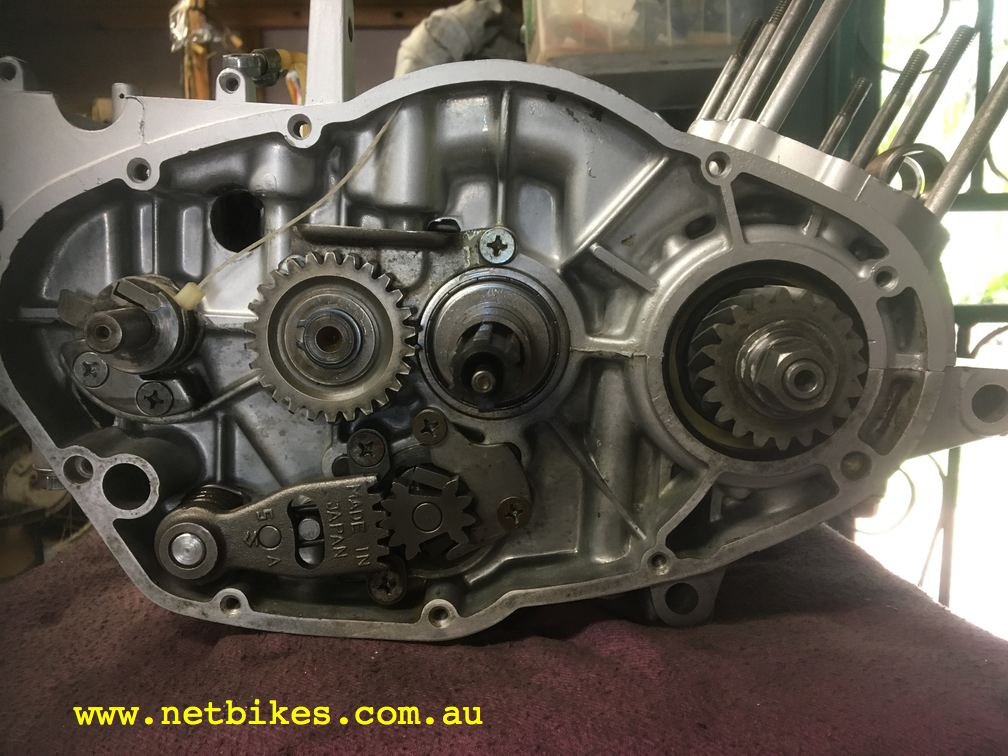

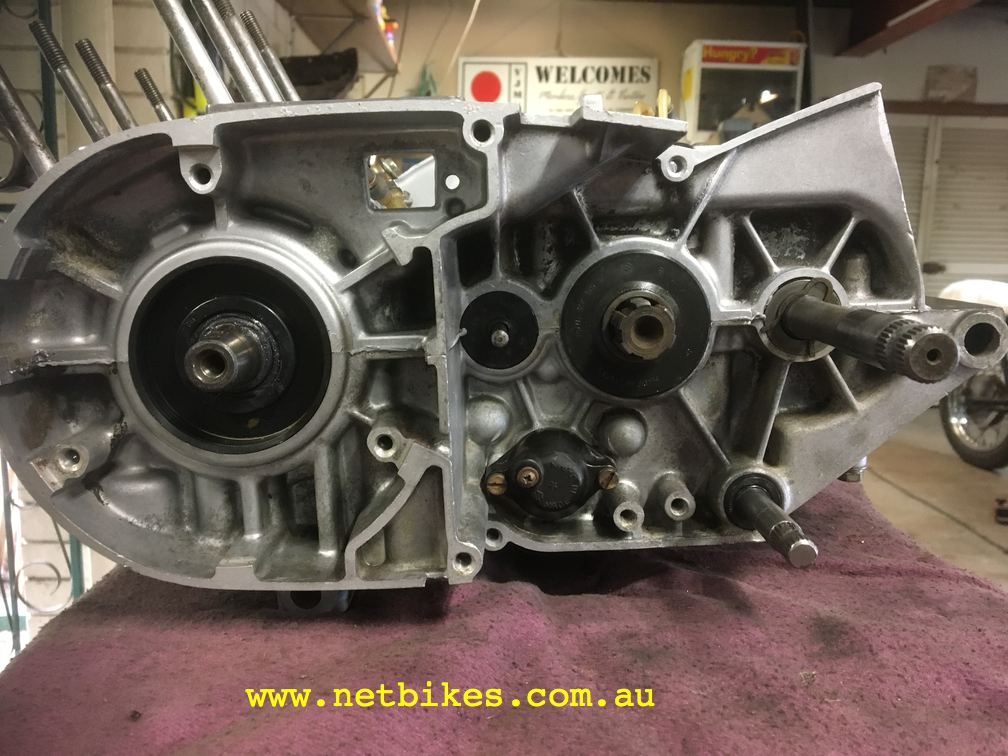

Bottom end now complete and bolted up.

suzuki gt250

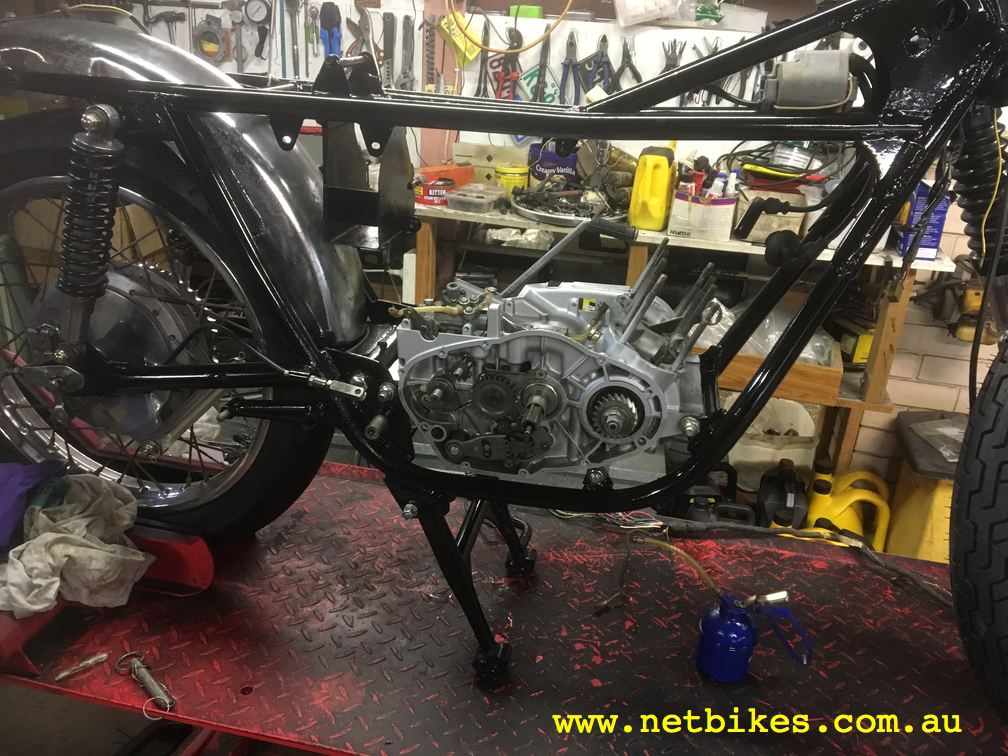

And we're are in frame. Need to get barrels bored for new pistons before I continue.

suzuki GT250

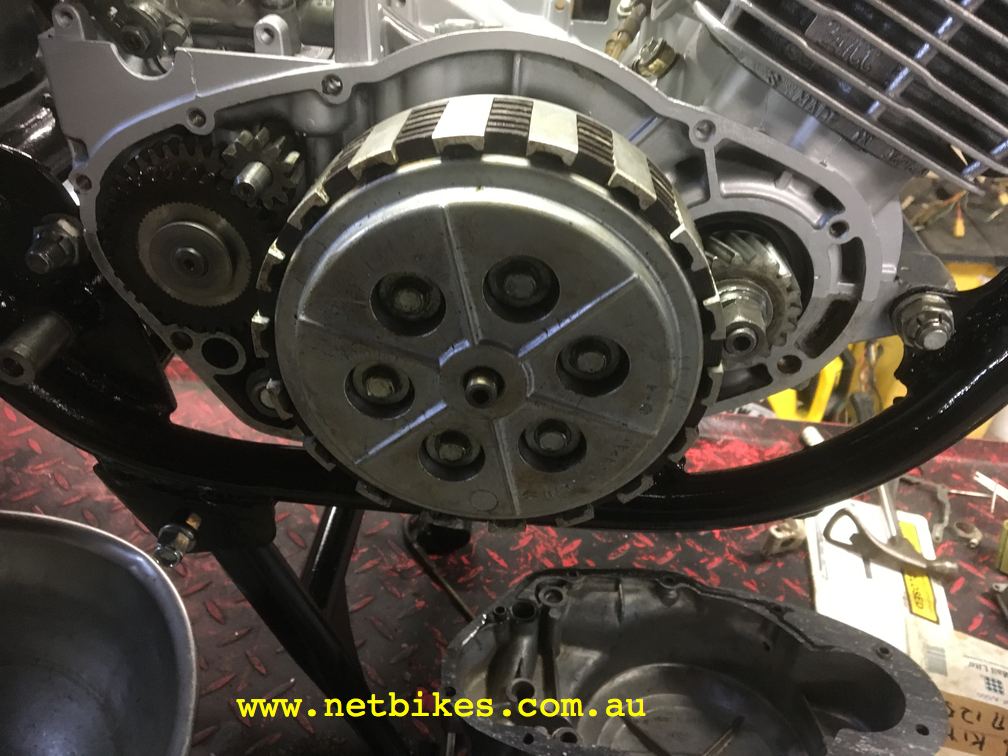

All the clutch side mechanicals now re fitted.

suzuki gt250

suzuki gt250

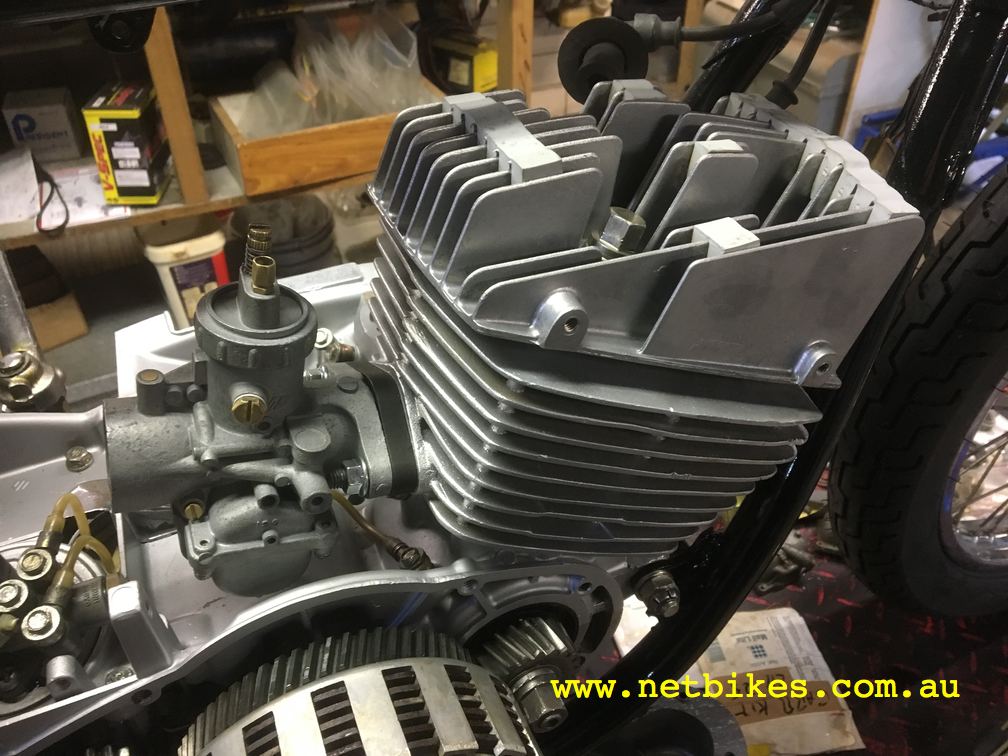

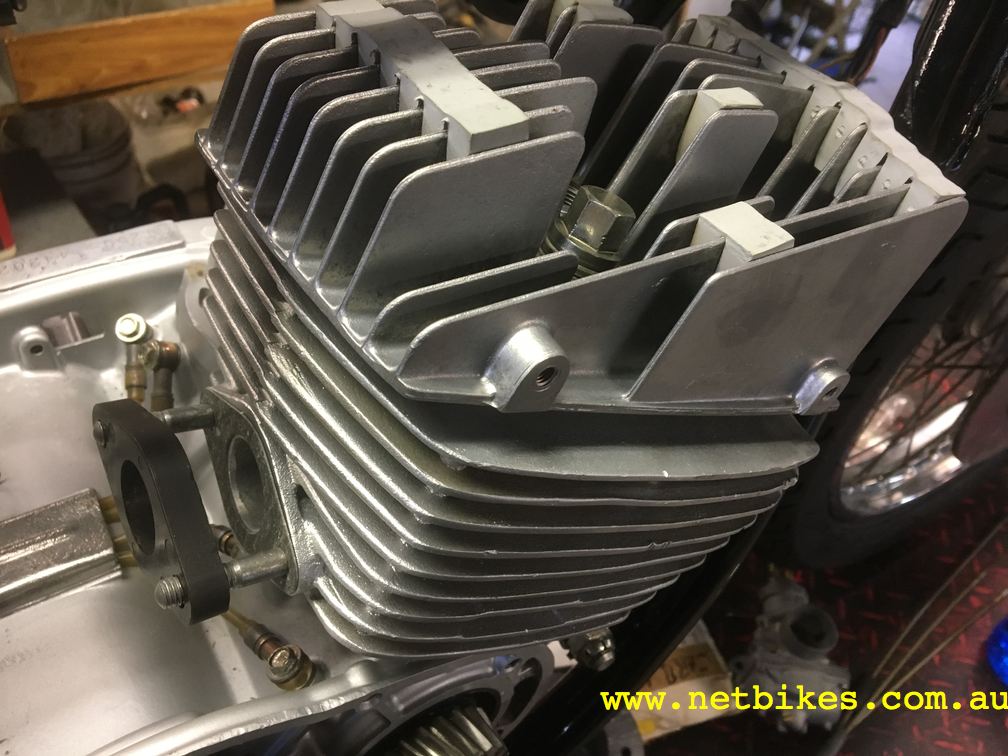

right head fitted, internal has new 0.5 piston, rings, piston pin and clips, base and head gaskets.

suzuki GT250

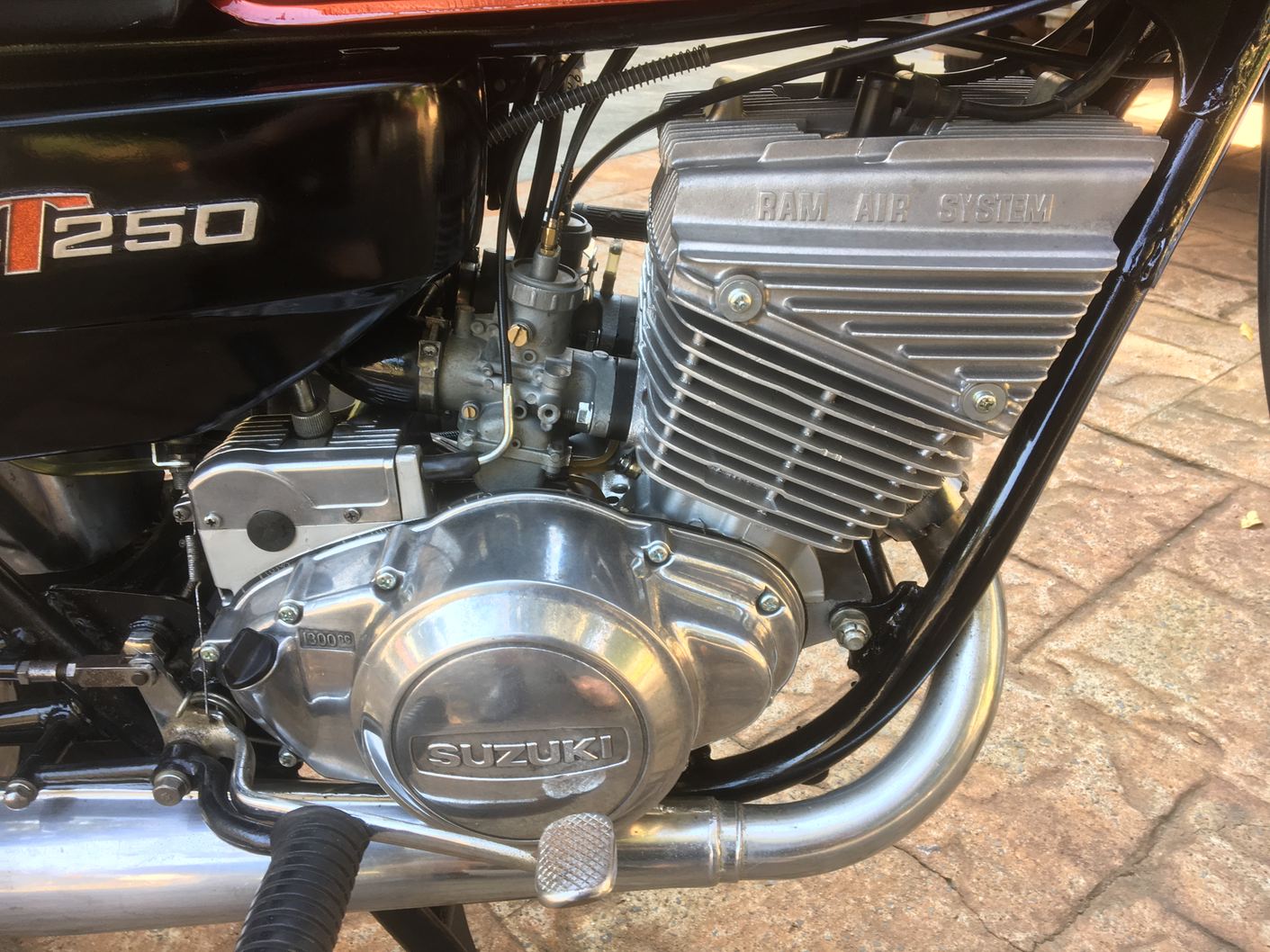

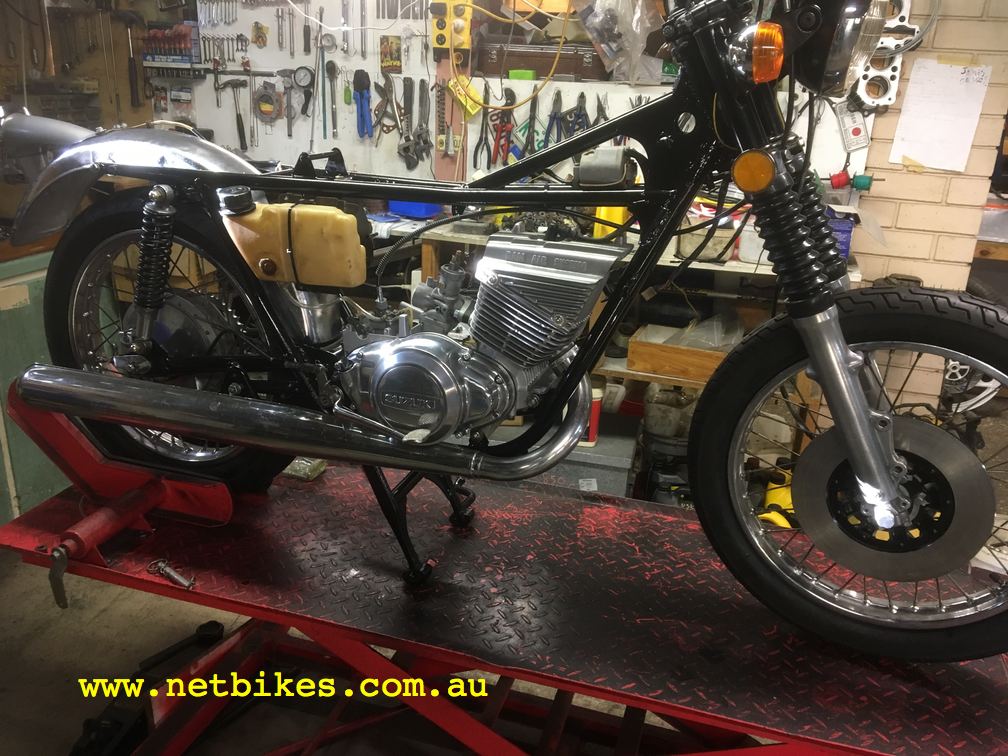

Right side very close to completion now.

July 17 2018

suzuki gt250

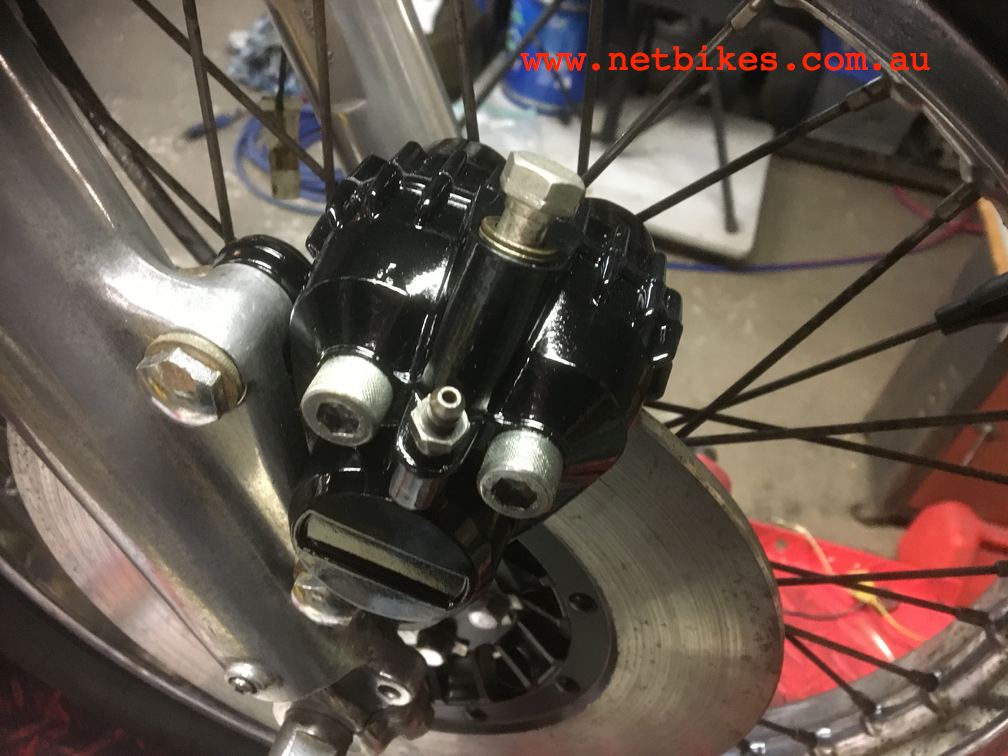

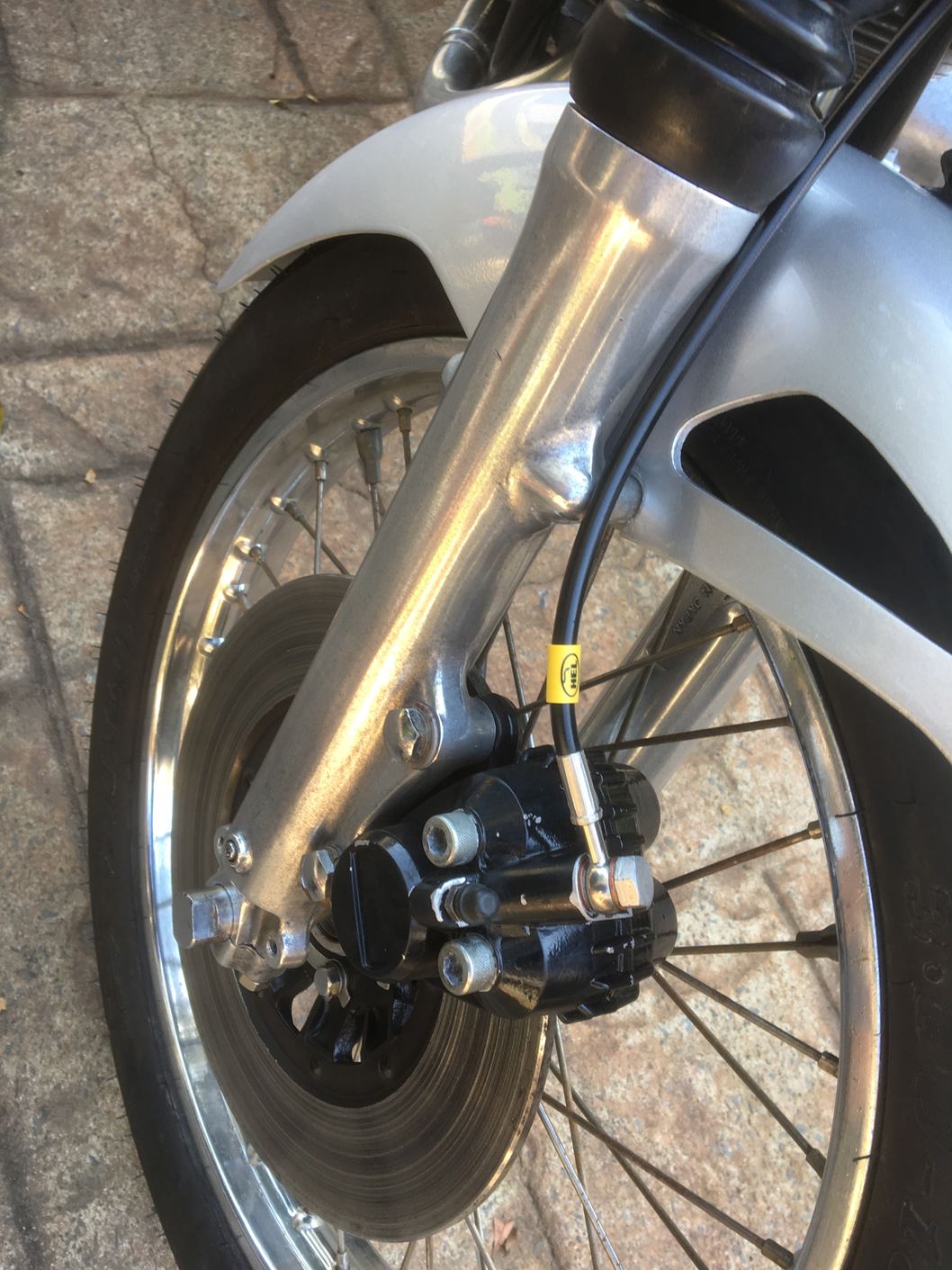

Todays small effort, fit up renewed calliper, it has new piston, seal and pads. Outer has been bead blasted and calliper paint applied. Will use a single braided line from master to finish.

August 3 2018

Suzuki GT250

Suzuki GT250

Suzuki GT250

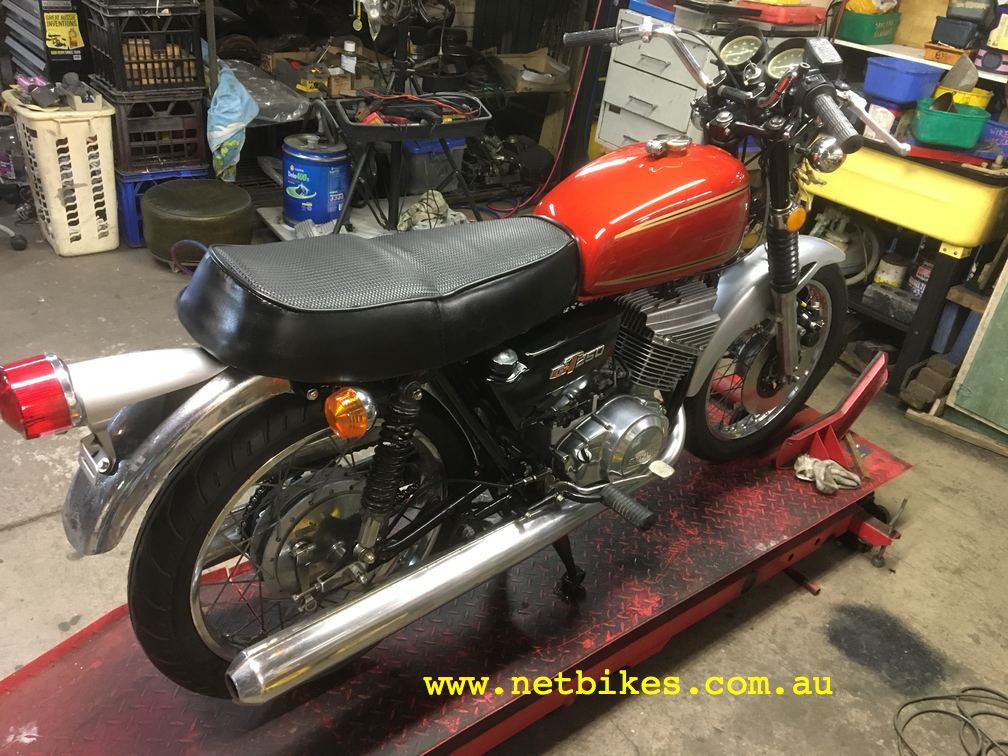

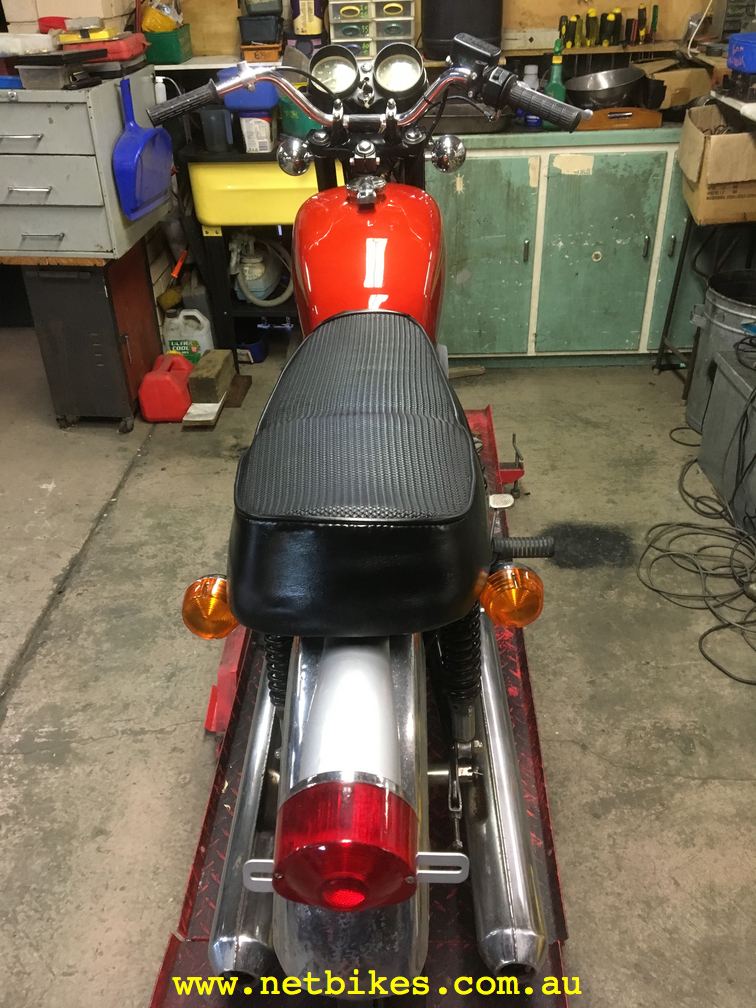

Well I am on the home run now, about90% finished, I still need to final the electrics. Will also source a decal for the rear of the seat, I bought one for another bike a few months ago but the seller seems to have vanished now.

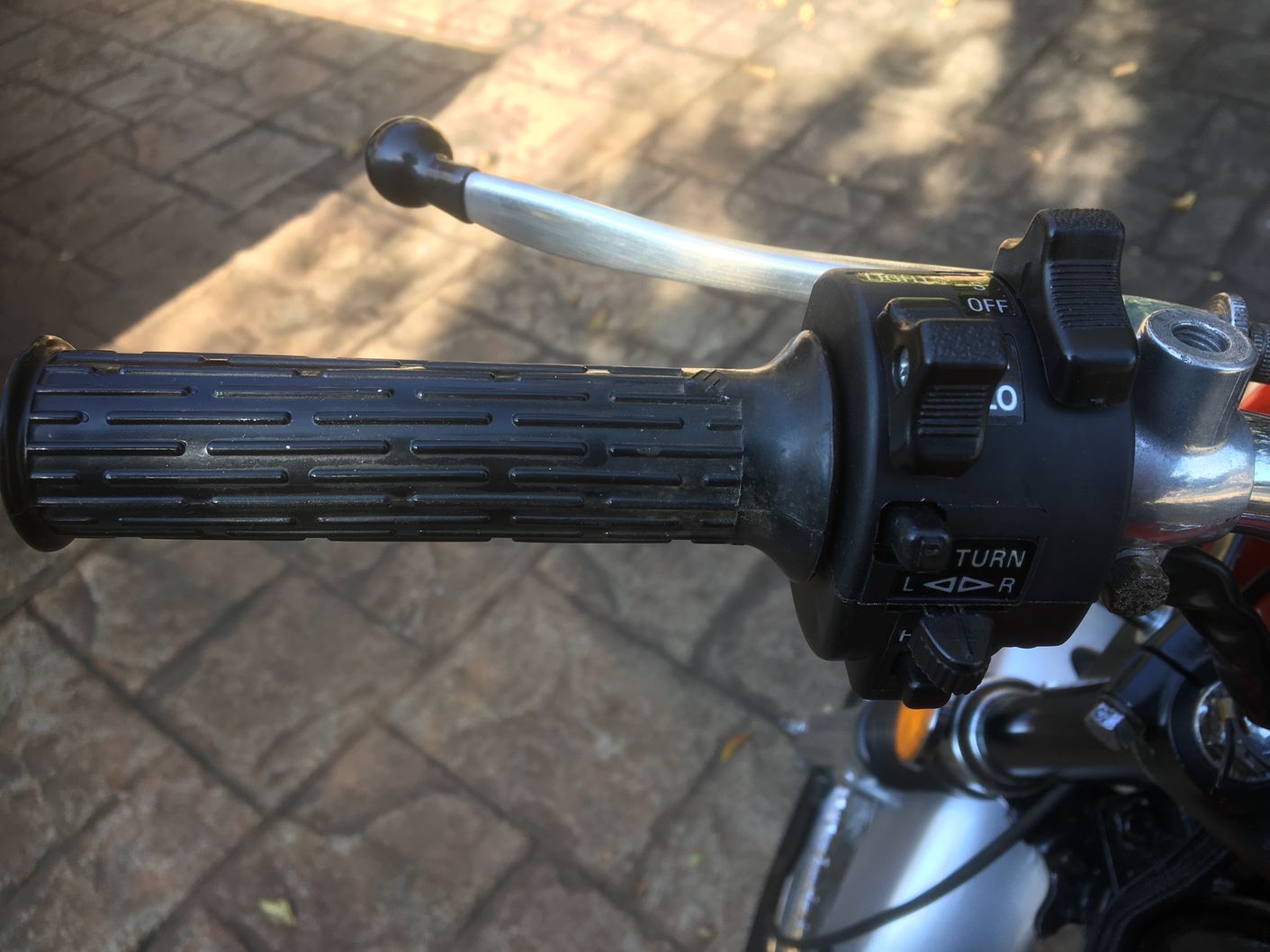

I am also waiting for the left switch block to arrive from the UK too. Anyway not too long now before the streets see more smoke :)

Thursday September 13 2018.

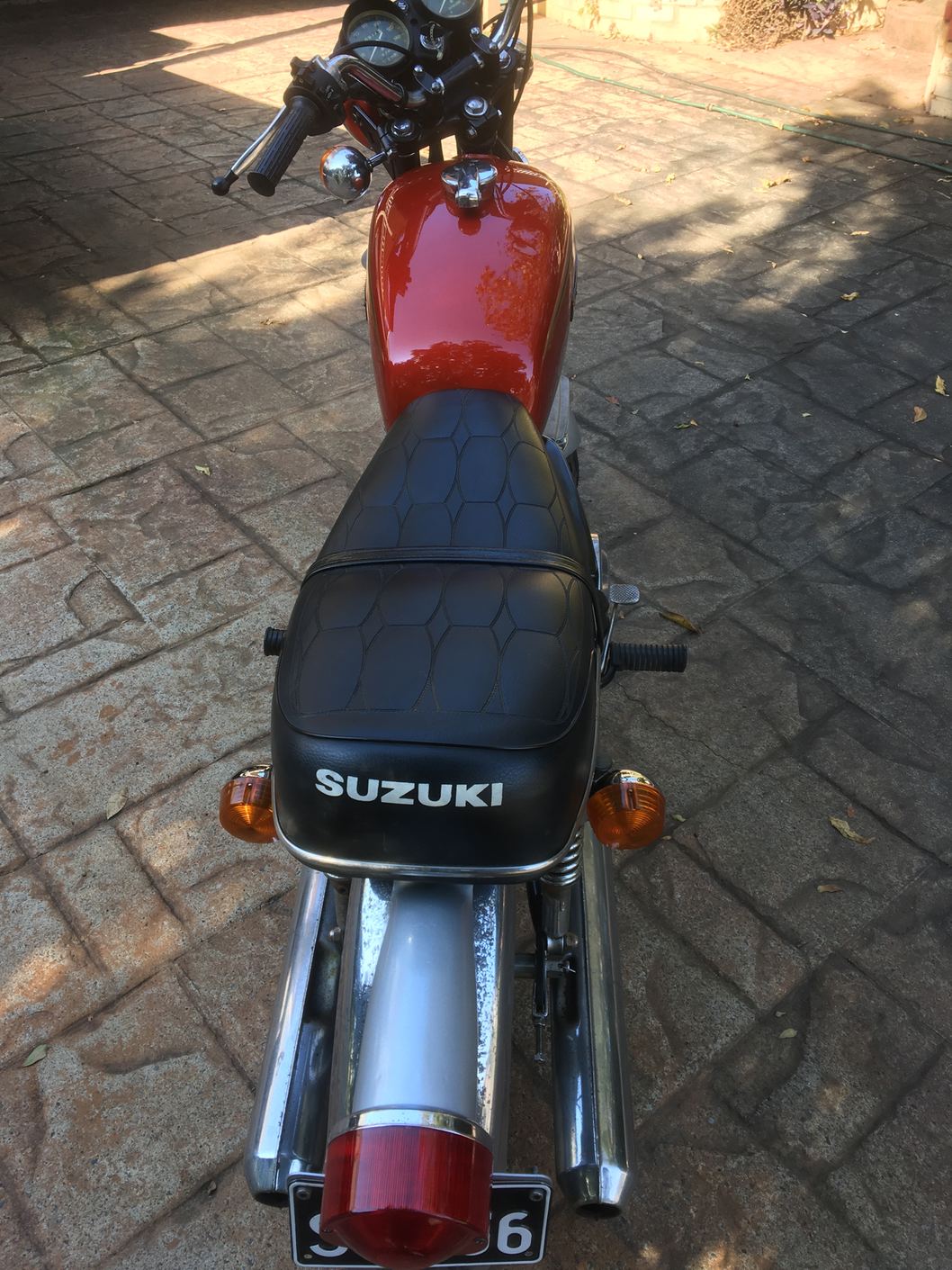

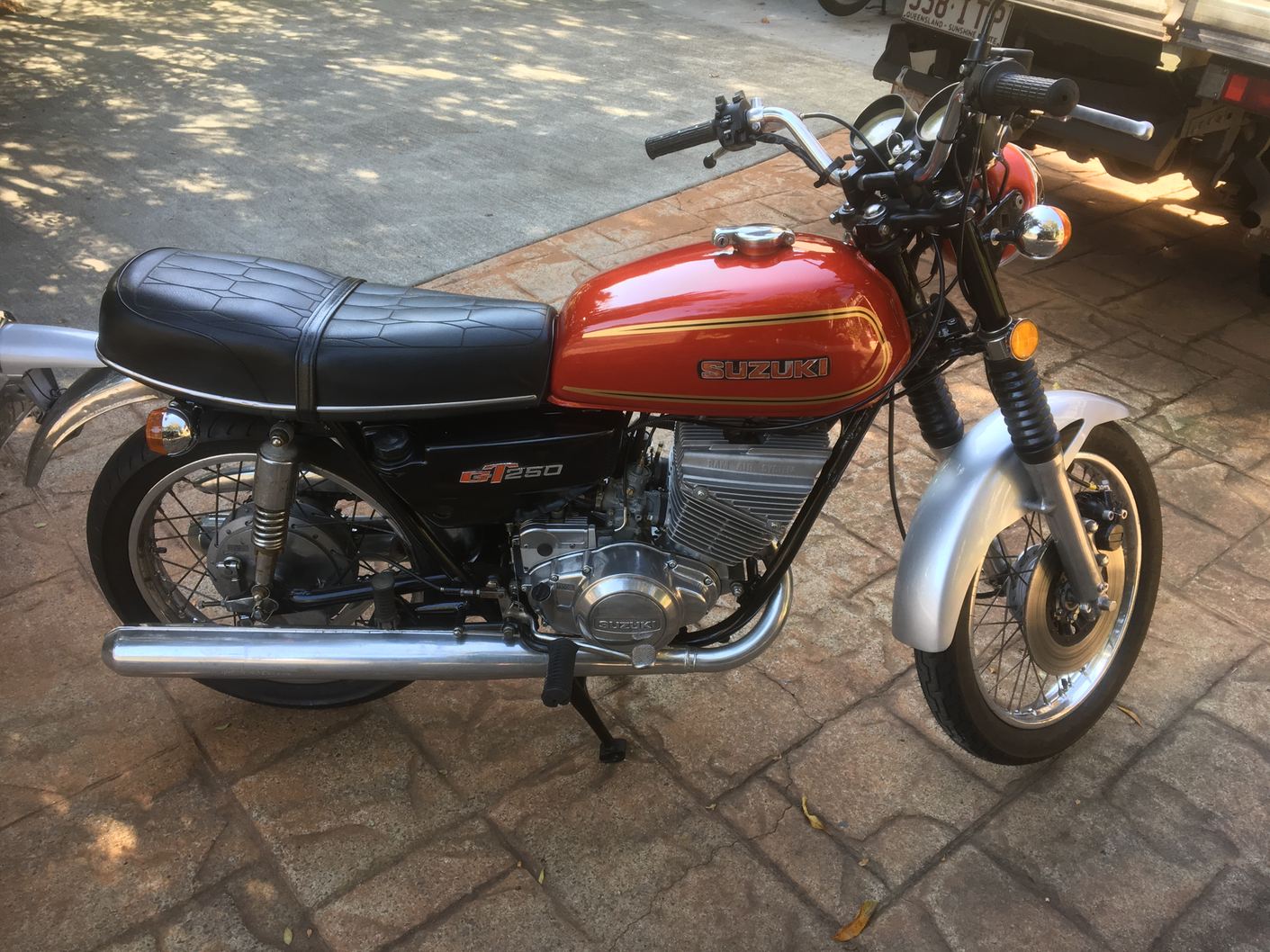

All finished and for sale.(SOLD), call me on 0422819200. Located Mt.Gravatt East QLD 4122.

Summary: many new parts were used in this build.

Full crank rebuild, rods, bearings and seals
Full top end build, pistons, pins, small ends, gaskets, rebore to 0.50.

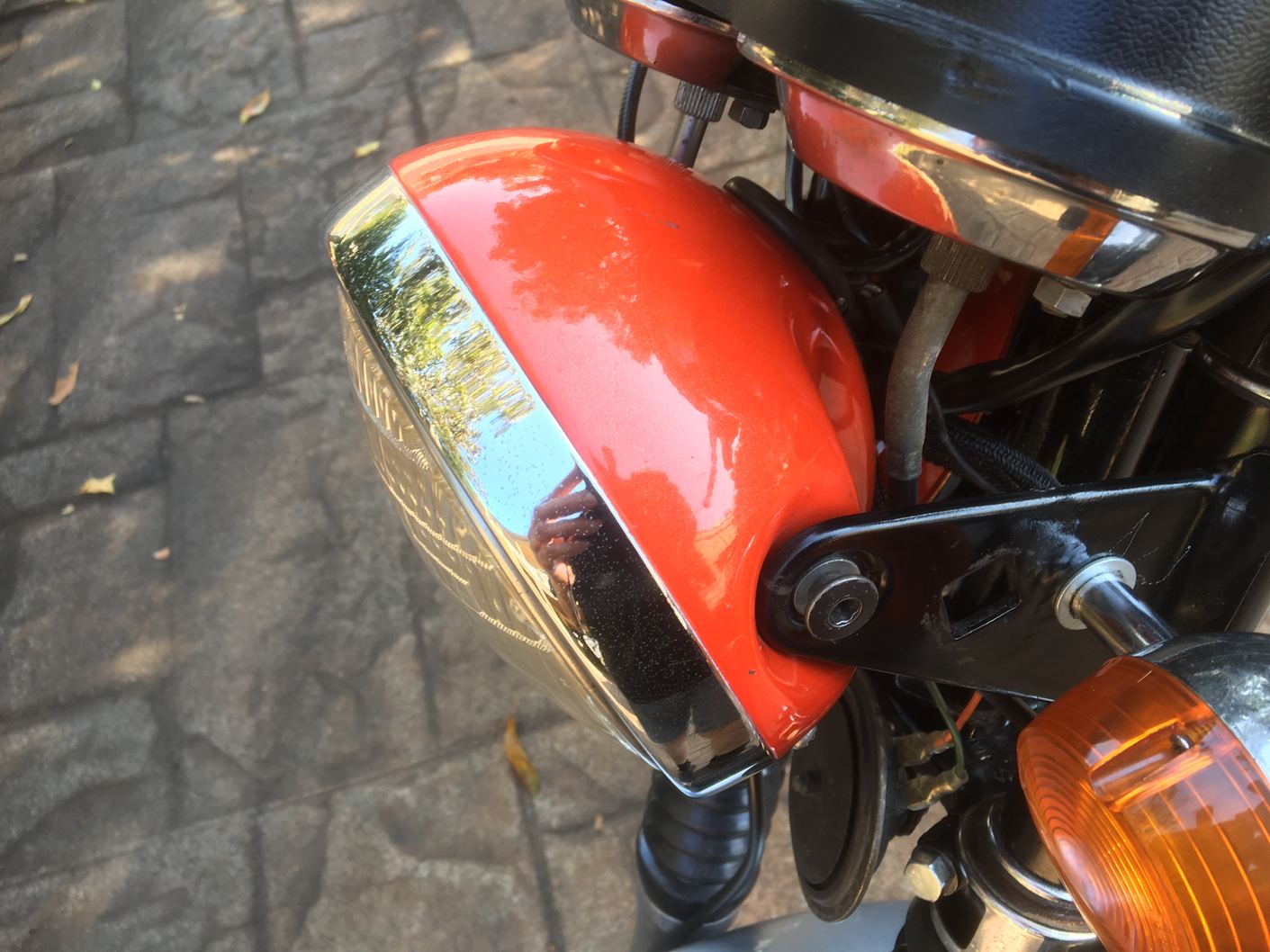

NOS fuel tank, headlight bucket, chain and sprockets, indicators except one (one of the new ones broke), wheel bearings, neck bearings, fork seals, brake calliper piston and seals, Hel braided brake line, carbs have new main jets, new air filter, new air filter rubber boot, new fork gators, new tail light lens, new rear brake linings, new left side switch block.

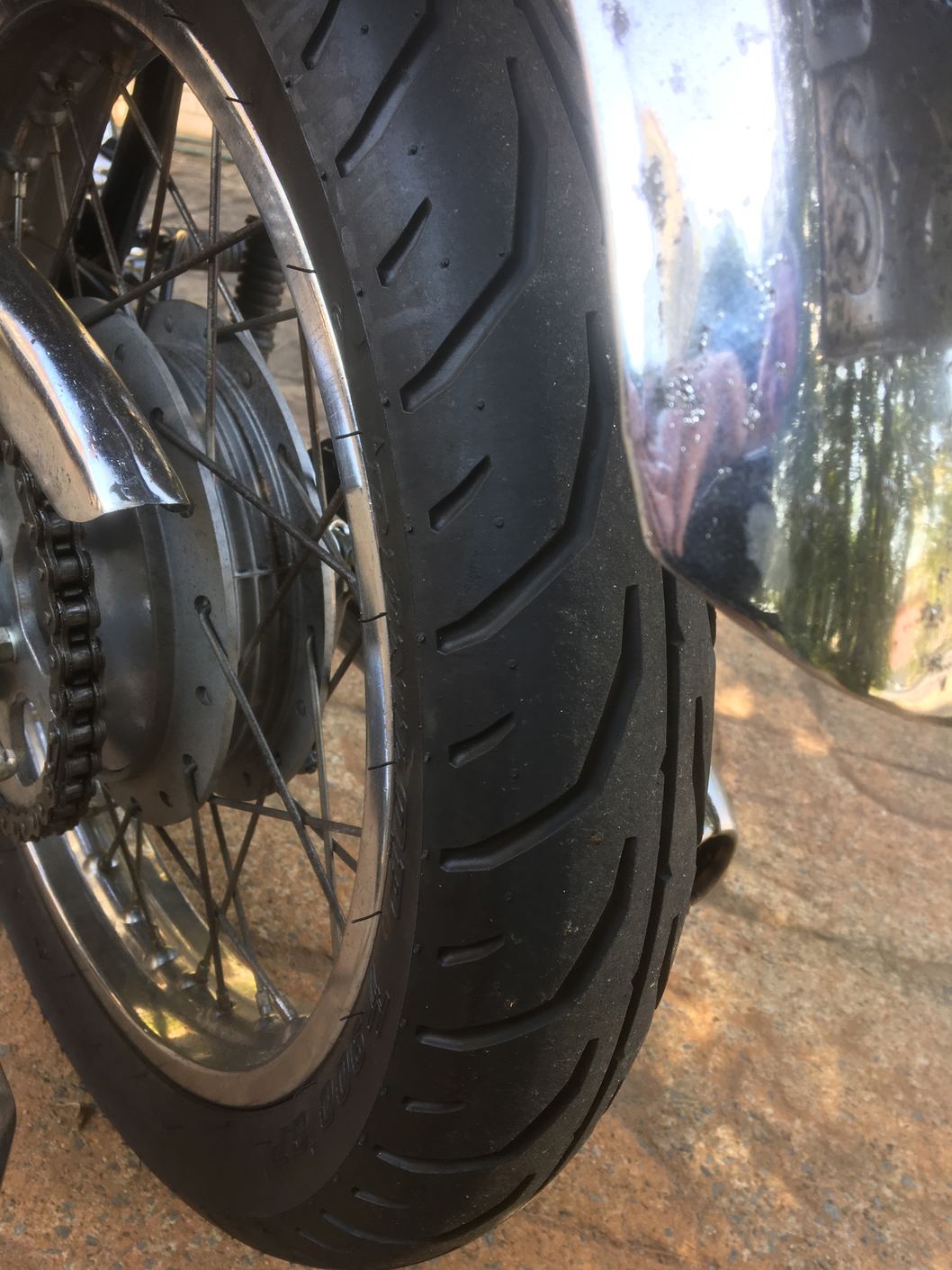

All alloy was vapour blasted, lots of cycle threads re zinc plated, new tyres and tubes. All electrics were gone over, lots new plug ends etc and everything works perfectly, has new points and condensers.

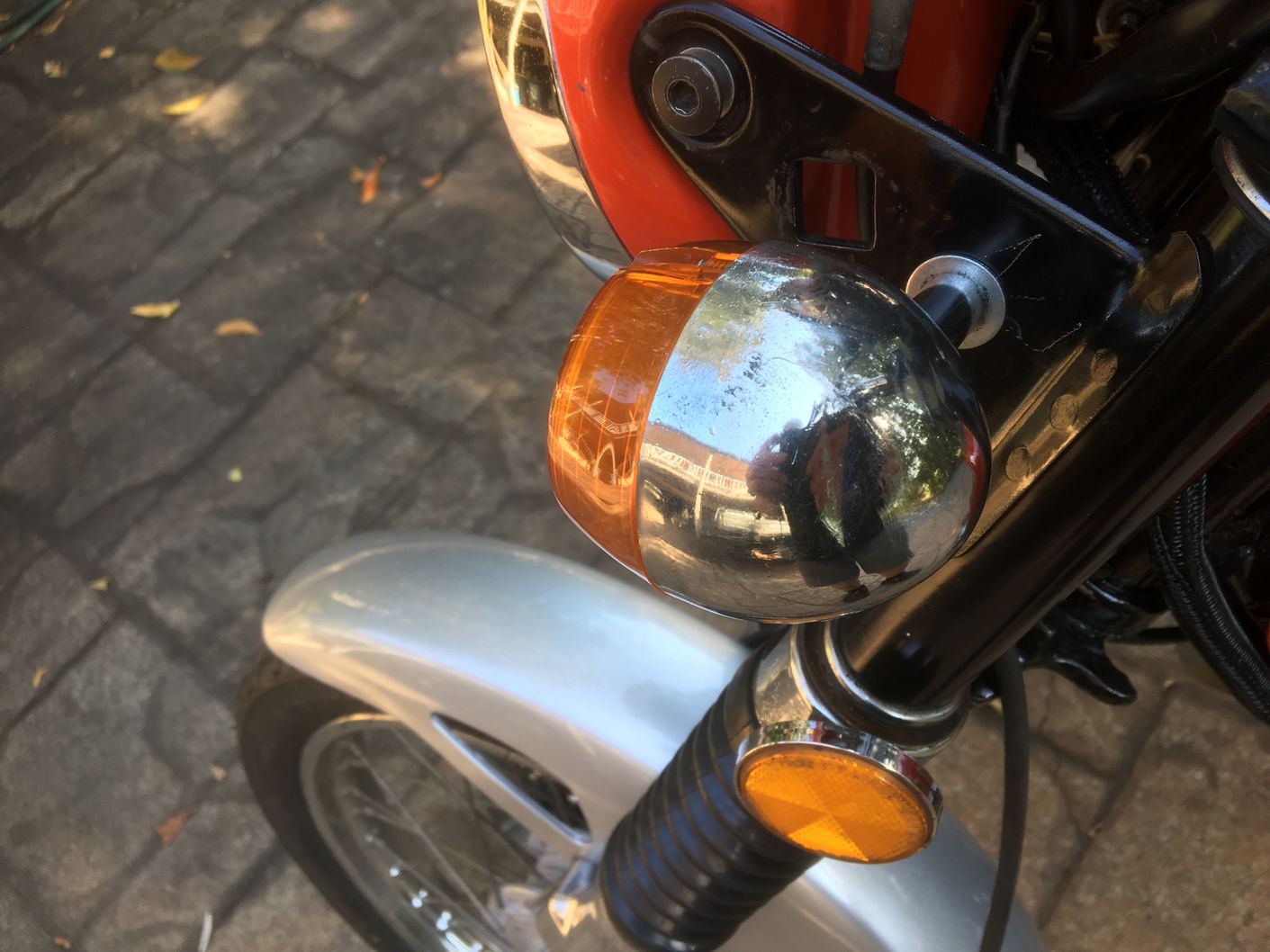

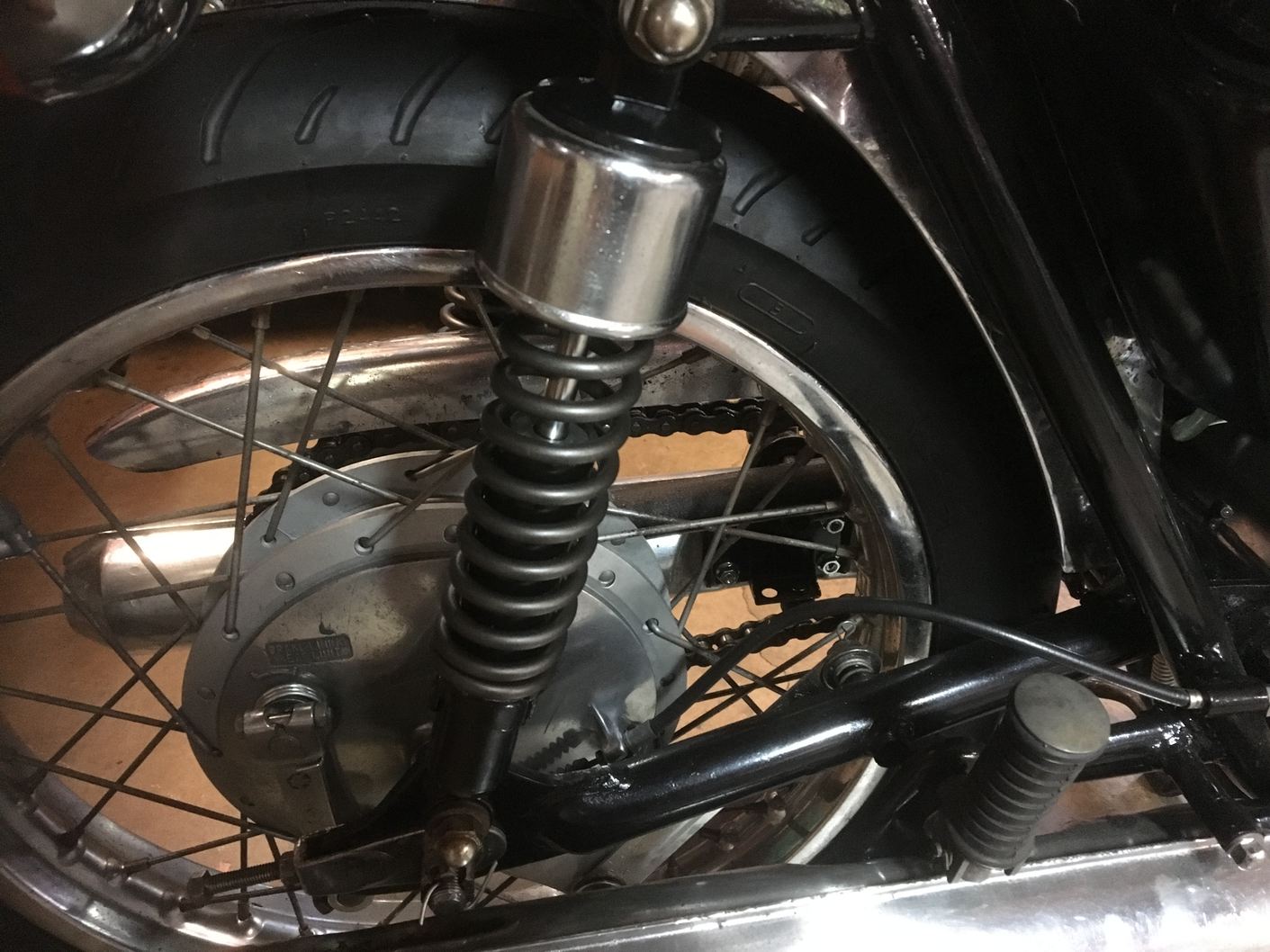

Non GT250 parts are front guard, GS250, rear tail lamp is T200, and headlight brackets from a TX500 Yamaha. I have better rear shocks arriving next week.

Starts, runs and rides beautifully

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250

Suzuki GT250
